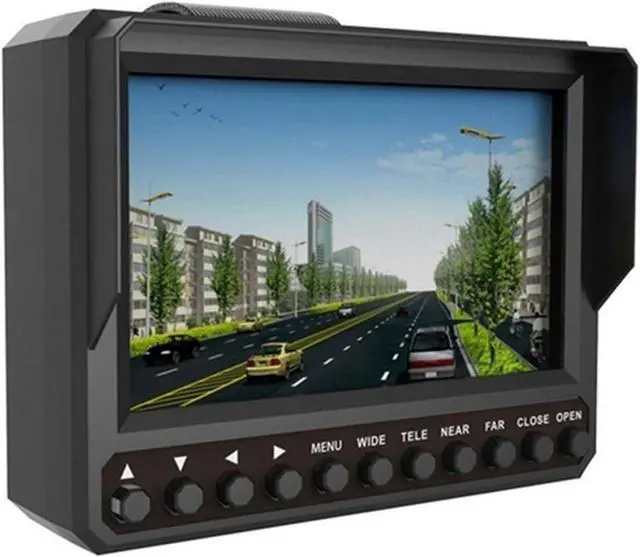

CCTV Tester CCTV Tester 4 in 1 for AHD TVI 3.0 CVI & CVBS Analog Camera Security Video Monitor 1080P Inch LCD Support IP Camera

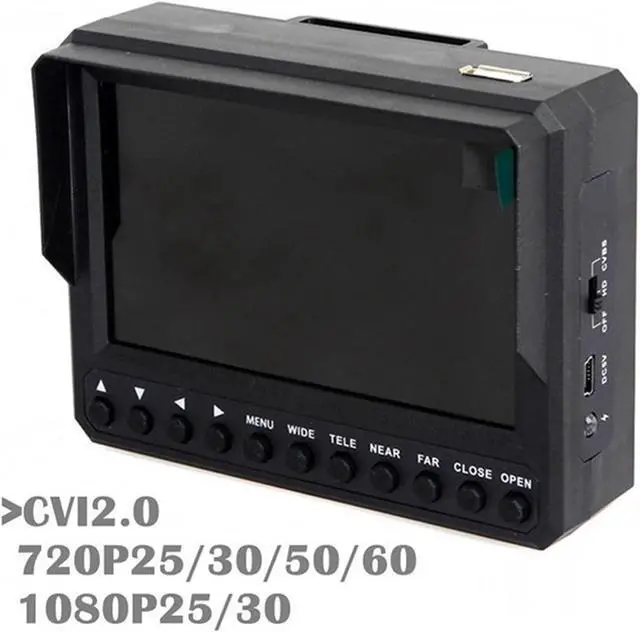

- Supports 1080p CVI2.0(720P 25/30/50/60Hz;1080p 25/30Hz)
- also supports 1080p HD-AHD 2.0 cameras(720P 25/30/50/60Hz;1080p 25/30Hz)
- Highly equipped, the most cost effective choice.

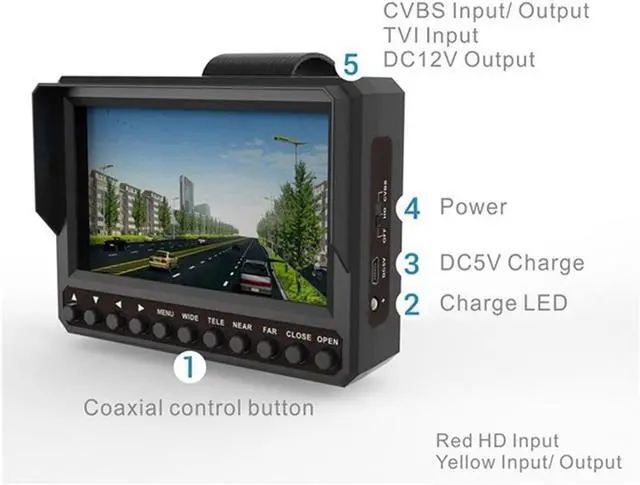

- Coaxial control---- Press Menu key to call up TVI /AHD/CVI Camera or TVI /AHD/CVI dome camera's built-in menu
- 12V0.8A Output function can be helpful when no external power supply for the camera.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Supports 1080p HDTVI 3.0 cameras(720P 25/30/50/60Hz;1080p 25/30Hz;3MP/5MP)

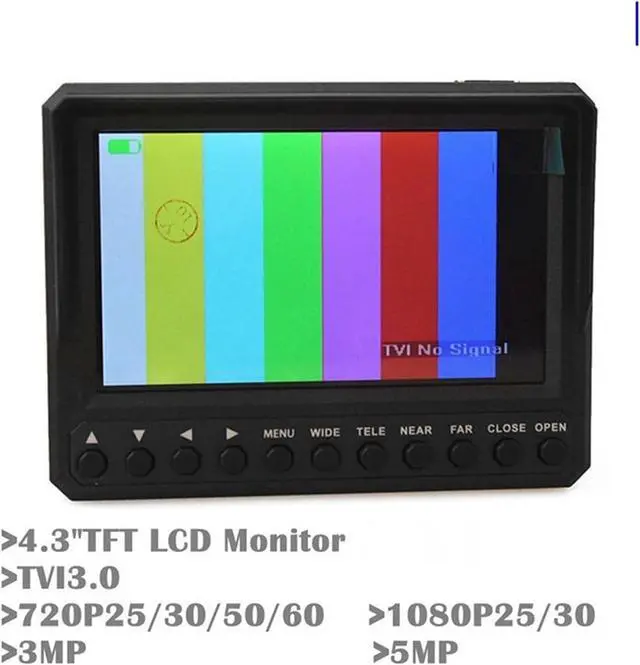

(1) 4.3inch LTPS LCD screen.
User can check the details of camera video during the process of installation.
(2) Equipped with 18650 battery, which has RoHS & CE certification
Device can work 7 hours after a single charge
(3)Video test Automatically identification with access HD-TVI /AHD/CVI Video signal
Feature:

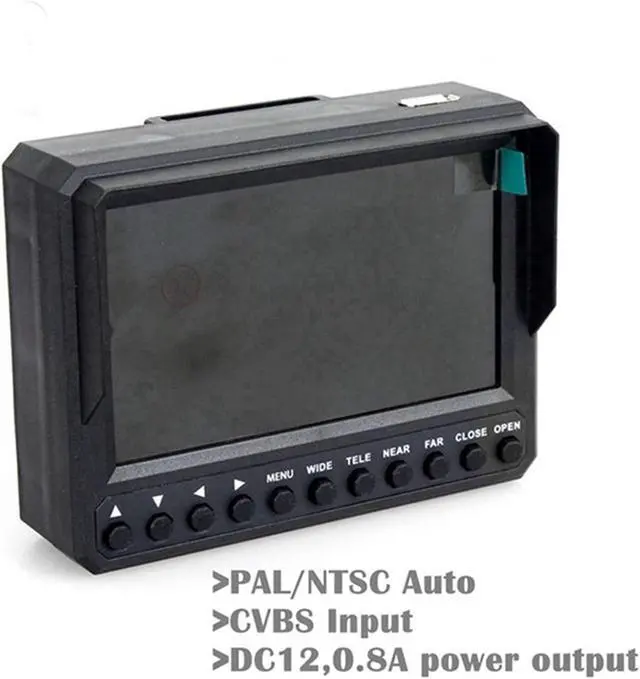

PAL/NTSC Auto
Color bar CVBS Output
Coaxial Control Protocol
CVBS Input
Built-in 18650 battery,3.7V
High capacity li-polymer battery, charge time 4 hours, and work time 11 hours.
DC12,0.8A power output
Specification:
Model:AT430TAC-5M
Display screen: 4.3inches
Display screen Resolution: LCD 480*272P resolution
Video input: HD-AHD/HD-TVI/CVI/CVBS
12V power output
External power supply:DC 5V(1A)
Battery-powered: Built-in 3.7V 18650 battery,
Charge time: 4hours
Battery working time 7 hours,Power saving features:
Working Temperature:-20---+70
Humidity:30%-90% Rh
Dimension:118mm x 90mm x 48mm,170g

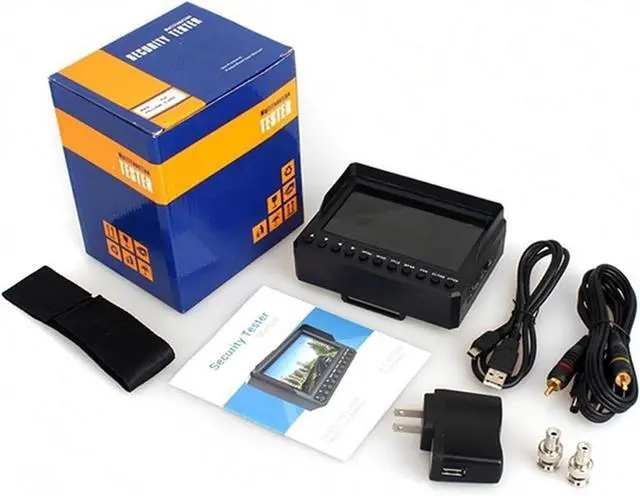

Package:
1x 430TACTester
1x USB-A/V/DC Cable
1x USB Charger
1 x User manual
CCTV Monitor & Display,Security & Protection,cctv monitor,lcd cctv monitor,cctv camera monitor
(1) 4.3inch LTPS LCD screen.
User can check the details of camera video during the process of installation.
(2) Equipped with 18650 battery, which has RoHS & CE certification
Device can work 7 hours after a single charge
(3)Video test Automatically identification with access HD-TVI /AHD/CVI Video signal
Feature:
PAL/NTSC Auto
Color bar CVBS Output
Coaxial Control Protocol
CVBS Input
Built-in 18650 battery,3.7V
High capacity li-polymer battery, charge time 4 hours, and work time 11 hours.
DC12,0.8A power output
Specification:
Model:AT430TAC-5M
Display screen: 4.3inches
Display screen Resolution: LCD 480*272P resolution
Video input: HD-AHD/HD-TVI/CVI/CVBS
12V power output
External power supply:DC 5V(1A)
Battery-powered: Built-in 3.7V 18650 battery,
Charge time: 4hours
Battery working time 7 hours,Power saving features:
Working Temperature:-20---+70
Humidity:30%-90% Rh
Dimension:118mm x 90mm x 48mm,170g
Package:
1x 430TACTester
1x USB-A/V/DC Cable
1x USB Charger
1 x User manual
CCTV Monitor & Display,Security & Protection,cctv monitor,lcd cctv monitor,cctv camera monitor
