    CCTV Tester 4K CCTV Tester 4.3 Inch Ahd Monitor for Video Surveillance AHD/CVI/TVI/CVBS Analog Camera with RS485 PTZ Controller UTP Support IP Camera

    Be the first to review this product...

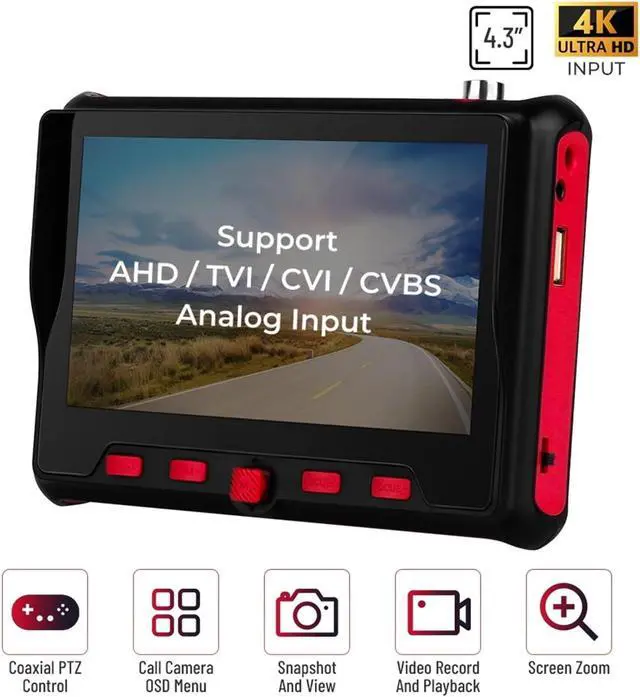

    • The HDCCTV Test monitor support "4in1"(AHD/TVVCVVCVBS)video format of up to 2MP~8MPresolution.
    • It also supportPTZ control by RS485 and other special features suchas DC12V/USB/5V out put, n test,UTPcable test,LED lighting etc.lt is designed to bring installer maximum conveniecy duringthe installation.
    • Video input: Compatible with AHD,TVI,CVI,CVBS signalsof up to 2MP~8MPresolution.
    • .4.3 inch 480 x272 resolution.PAL/NTSC(Auto adapt).
    • PTZ control: RS485 Baud-Raud:1200~115200bps,compatible with PELCO-D/Pprotocols.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Product Funtions:

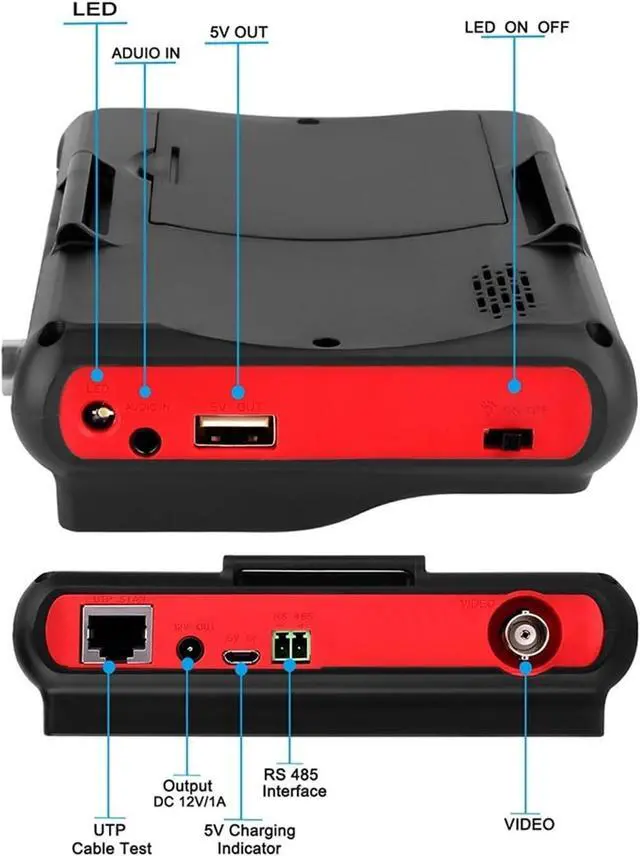

    Power Supply: Power output of DC 12V/1Afor temporarily powering on cameras for angle and zoomadjustment
    .USB Power Supply.: USB2.0 interface
    provides 5V/1A poweroutput
    signal input
    .Enhanced UTP cable, with indicator lights. the cable testdistance can reach 100-150 meters
    control/call OSD menu
    Coaxial HD test
    AHD tester support 720P25F/30F/1080P/25F/3OF(4MP/5MP/8MP AHD camera tester is optional*)
    TVl tester support 720P25F/30F 1080P25F/30F(3MP/4MP/5MP/8MP TVl camera tester is optional*)
    CVl tester support 720P25F/30F 1080P25F/30F(4MP/5MP/8MP CVl camera tester is optional*)
    LED emergency lighting
    bulit-in 3.7V Lithium polymer bottery, 3000mAh

    Specification

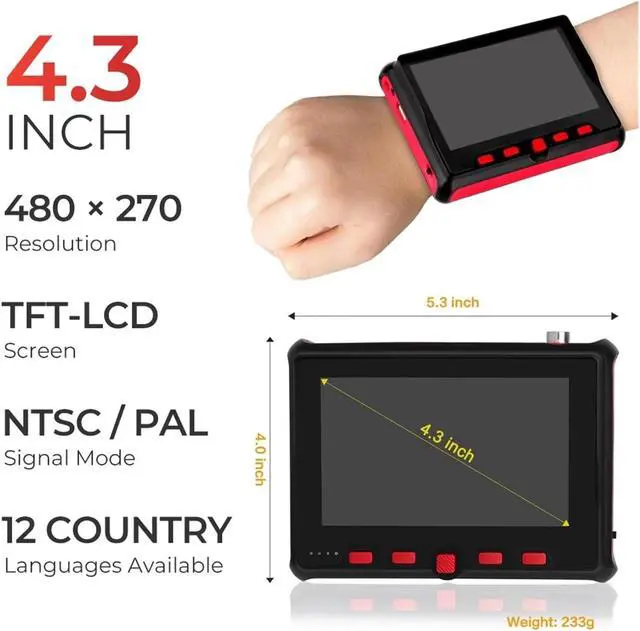

    Display:4.3inch TFT- LCD,480X272 resolution
    Signal mode:NTSC/PAL (Auto adapt)
    Video lN:BNC ( Analog/AHD/TVI/cVl) signal input
    VIDEO TEST: CVBS TestAHD TVI CVI 72OP/1080P3MP/4MP/5MP/8MP(*) Test
    control/call OSD menu
    input test
    PTZ Controller:Support RS485,Compatible with protocolsPELco-D/P, Baud Rate 1200~14400bps

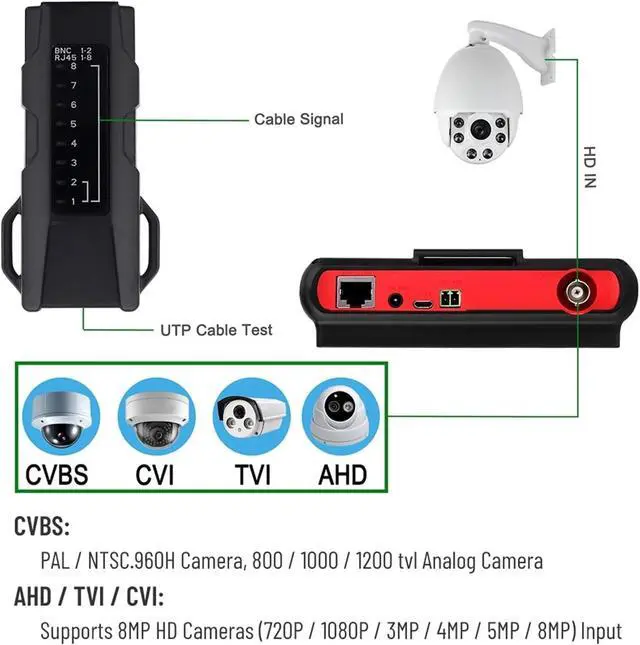

    UTP Cable Tester:Enhanced UTPcable, with indicator light, thetest distance can reach 100-150 meters
    POWER
    DC12V output:DC12V1A power Output
    Power Adapter:DC 5V/1Alnput

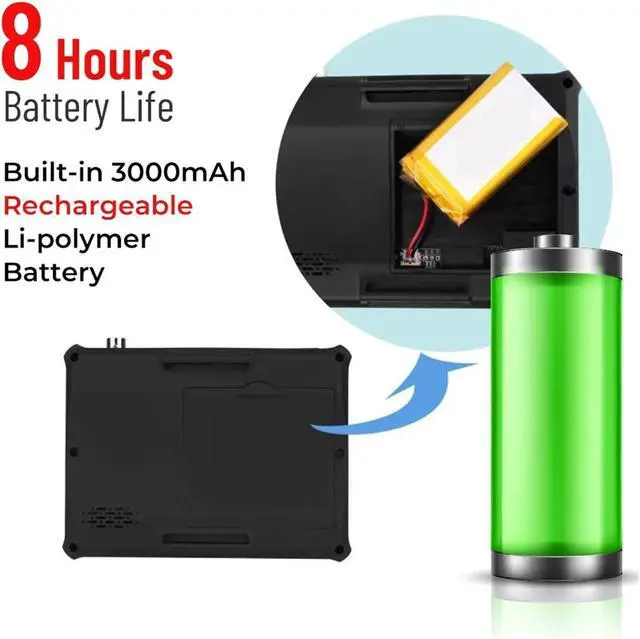

    Battery:Built-in 3.7V 3000ma battery
    Battery Life:8 hours work after full
    charge(Withoutsupplyingpower to extemal devices)

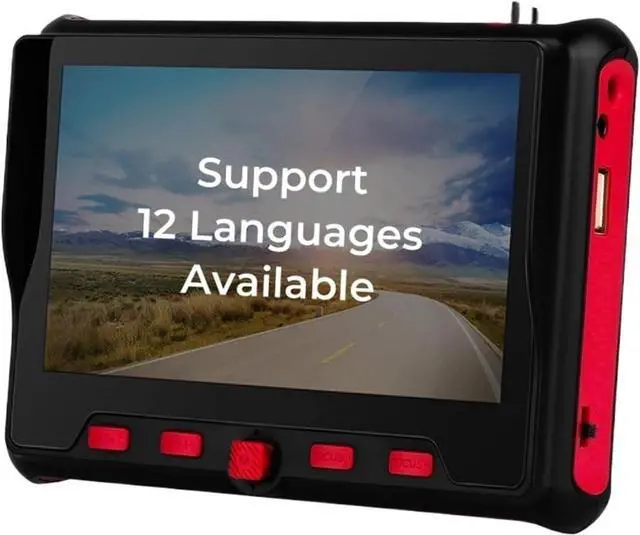

    Language:12 Languages available(Chinese, Traditional Chinese, English, Russian, Italy, Poland, Portugal, Germany, Spain, Japan, Turkey, French)
    General
    Working Temperature:10°C-+50°c
    Working Humidity:30% - 90%
    Dimension/Weigh:38mmx 103mm x 41mm /0.5kg

    Monitor video surveillance tester
