600lbs Magnetic Door Lock Access Control Kit with WiFi & 433MHz Remote, Tuya Smart App Control, 280KG Electromagnetic Lock with ZL Bracket for in-Swing Door

Remote Door Access: Open or lock the door instantly with included 433MHz 4 remotes from up to 100ft / 30m away.
WiFi Smart Control: Connect to 2.4G WiFi for remote access anytime through the TuyaSmart App.
App Management: Easily add or delete remotes directly in the app for convenient user control.
Timer Scheduling: Set automatic unlock and lock schedules for offices, stores, rentals, or daily routines.
Strong 280KG Magnetic Lock: Reliable holding force helps secure doors with stable performance.
Indoor Exit Button Included: Stainless steel push-to-exit button allows fast and simple indoor door release.
Complete Installation Kit: Includes power controller, wiring cable, plug cord, remotes, relay, exit button, and lock.
Simple DIY Setup: Easy-to-install system designed for basic access control needs.
Expandable System: Supports adding a keypad or RFID access controller if advanced entry options are needed.
Ideal for Many Locations: Great for homes, offices, shops, warehouses, apartments, and small businesses.

Cover Finish: Anodized aluminum
Lock Finish: Zinc
Armature Plate Finish: Zinc
Input Voltage: 12V DC
Current: 12V/520mA
Holding: 280kg / 600Lbs
Fail safe: Unlocked while power is removed (NC Mode)
Size (L x W x H): 9.84x 1.93 x 0.98 (inch)
Armature Plate Dimension (L x W x H): 7.09 x 1.50 x 0.43 (inch)

Do not fix the screw of the armature plate too tight as this will result in weak suction of the lock. Please loosen the screw a little bit.
Proper elasticity should be guaranteed for the rubber ring so that the armature plate can adjust itself to the appropriate position.
Please keep the surface of the lock clean, or the force will be reduced because of the dust, glue or scotch tape on it.
Input Voltage: AC110-240V
Input Frequency: 50-60Hz
Output Voltage: 12V DC / 5A
Enclosure Material: Aluminum alloy
Enclosure Color: Black
Time Delay: 0-15s
Operating temp: -4-113
Dimensions: 3.54" x 3.54" x 1.38"
Weight: 0.3kg / 0.67lb

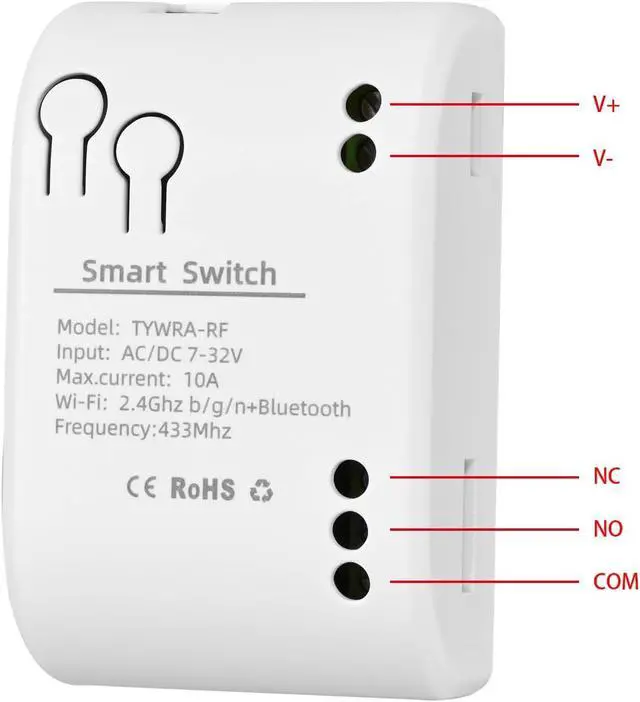

Operating Voltage: 7-32V AC/DC
Operating Mode: Momentary/Toggle
RF Frequency: 433MHz
Transmitter Support: Max 30
Support 2.4 GHz Wi-Fi (not 5G Wi-Fi)
App: TuyaSmart, SmartLife, Google Home
Output Terminals: NO/NC/COM
Connectors: 5 screw Terminal
Case Construction: ABS Plastic

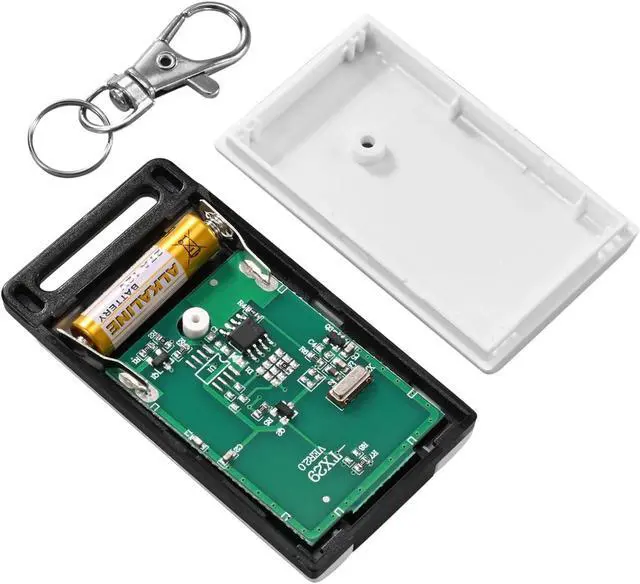

Power Source: 27A 12V Alkaline Battery
Number of Batteries: 1
Service Life of the Battery: 50000 cycles
Transmitting Frequency: 433MHz
Number of Buttons: 1
Emission Distance:50m/154ft (Open area)
Encoding Type: Fixed code
Enclosure Color: White
Enclosure Material: ABS Plastic
Material: Zinc alloy
Installation: Surface-mount
Mechanical Life: > 100,000 times
Output Contact: NO/COM
Operating Temperature: 14-131
Current Contact: 3A@36V DC Max
Weight: 130g (0.29lb)
Dimensions: 3.15 x 1.18 x 1.02inch
Conductor Material: Tinned Stranded Copper
Length: 16.5FT (5M)
Jacket Material: White PVC
No. of Cores: 2
Core Colors: Red/Black
Nominal Area: 0.34mm² / 18 AWG
Structure of Conductor: 41/0.16TS (No./mm)
Certificate: UL2464

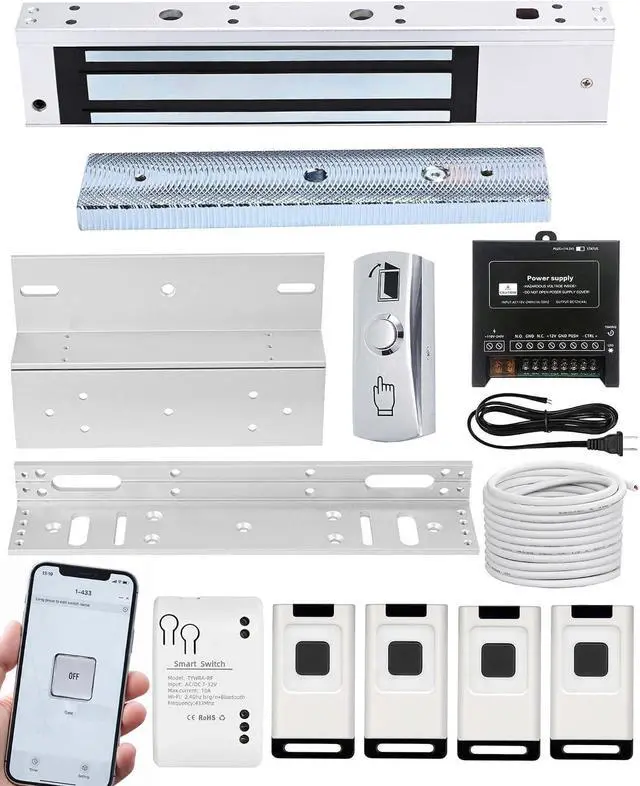

1 x 600LBS electric magnetic lock
1 x ZL Bracket
1 x Power supply control
1 x Power Cord
1 x Push to exit button
4 x Remote Transmitter
1 x Remote Receiver
1 x 16.5FT Installation Cable
1 x English user manual
Smart Magnetic Lock Access Control Kit 600lbs with ZL Bracket 4 Remote Controls TuyaSmart App Remote Control Features 600lbs Magnetic Lock Caution for Magnetic Lock Installation Power Supply Control Smart Switch Remote Transmitter Push to Exit Button Installation Cable Package List
