LIBO Tuya Smart Access Control System with 400lb/180kg Magnetic Lock
- 1. All-in-One Complete Access Control Kit Comes with a 400lb magnetic lock, DC12V power supply, exit button, and 10 IC key fobs. No extra parts needed. Support Tuya remote App control and keypad access for hassle-free home and business security.
- 2. 3 Multi-Unlock Modes for Flexible Use Supports PIN code, IC card, and Tuya App remote unlocking. Easily manage access for family, staff, and visitors, bringing maximum convenience for daily access control.
- 3. IP68 Waterproof & Fireproof Durable Keypad Built with flame-retardant ABS material and IP68 full waterproof rating. Dustproof and weather-resistant for long-lasting indoor and outdoor use on gates, offices, and stores.
- 4. Super Easy DIY Installation Standard DC12V wiring design with simple connection steps. No professional tools or electrician required, helping you save time and expensive labor costs.
- 5. Large Capacity & Customizable Functions Supports up to 1000 users and dual IC/ID card reading. Features adjustable door
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Unlock Your Door From Anywhere with Tuya WiFiForgot to let the dog walker in? Kids home from school early? Open your door from your phone whether you're at the office, on vacation, or just upstairs. The Tuya Smart app connects your S10TY to 2.4GHz WiFi, giving you remote control, real-time access logs, and the ability to share temporary access codes with family or guests.

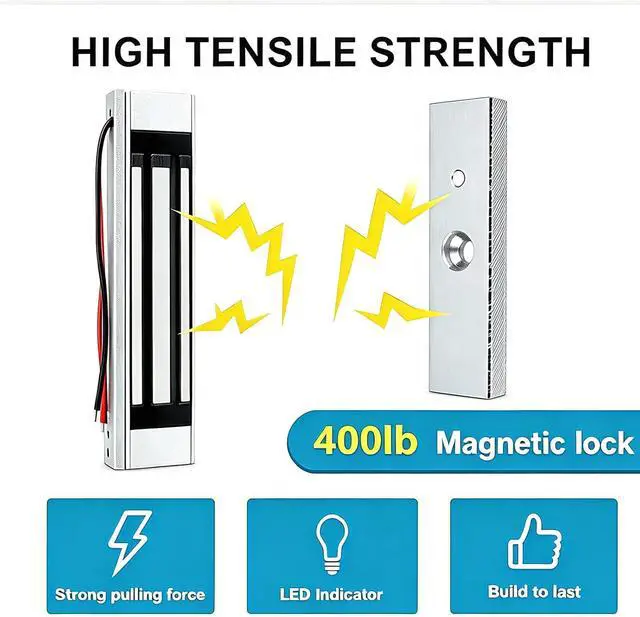

400lb Industrial-Grade Magnetic Lock Built to HoldMost home access kits use 60-180lb locks. The S10TY ships with a commercial-grade 400lb (180kg) electromagnetic lock the same holding force trusted by offices and storefronts. No moving parts means no mechanical wear, no jamming, and a service life rated for 500,000+ cycles.

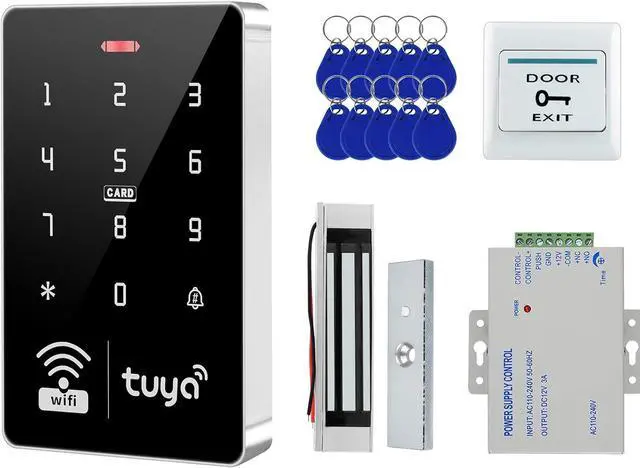

Complete 5-Piece Kit No Extra Purchases Needed

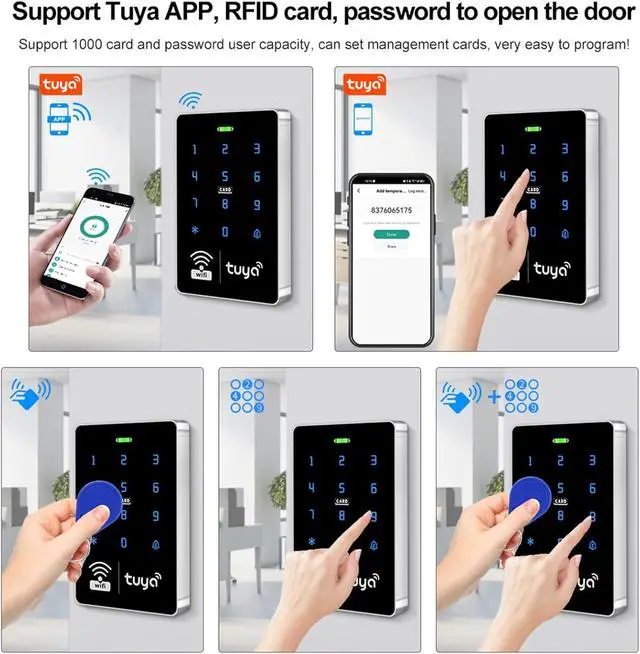

3-Way Access Choose What Works for You
Tuya WiFi app Remote unlock from anywhere. No extra gateway needed. Connects directly to WiFi.
Touchscreen PIN code Tap from 1-5cm away. Supports up to 1000 users.
IC card tap-to-enter The kit includes 10 IC cards ready to assign.
Supports temporary passwords & always-open mode Time-limited codes for visitors or unlock on demand.
No keys to lose. Just tap, type, or use your phone.
Rain, dust, or extreme heat the S10TY keeps working.

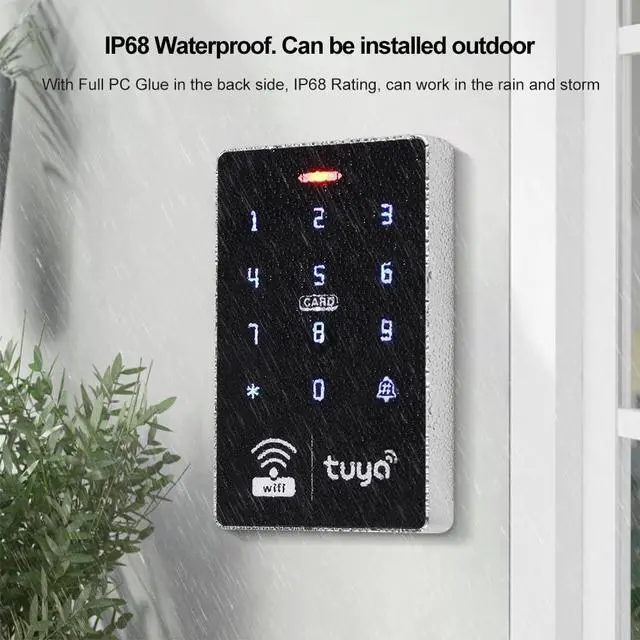

IP68-rated waterproof (potting sealed)
Wide temperature range: -20 to 70
Low power consumption: 100mA static current
WG26/WG34 Compatible Connects to most access control panels and third-party controllers.
Easy Card Management Add or Delete Instantly Simple keypad programming. Add or remove IC/ID cards in seconds. No software or computer needed.
Home, Office, Gate & Commercial Residential doors, office entrances, community gates, retail stores. IP68 waterproof ABS body.

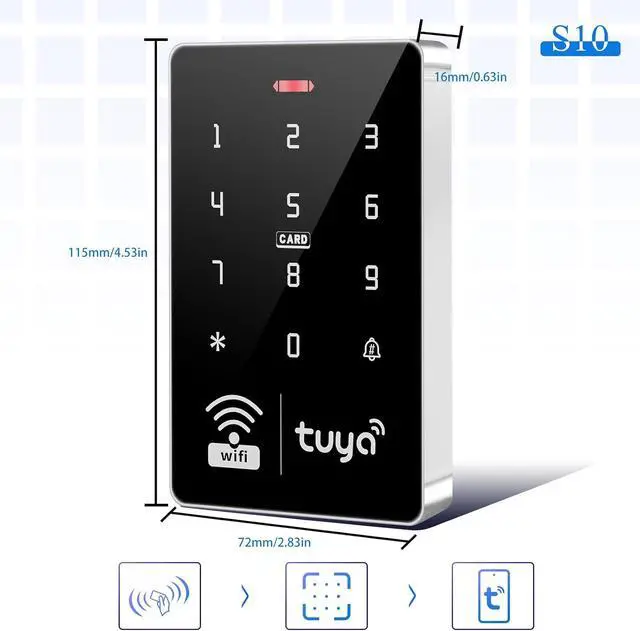

115×72×16mm DIY Setup Compact size. Clear DC12V wiring. No electrician needed.
400LB Holding Force Powerful for offices, stores, and workshops.
High Tensile Strength Premium materials resist forced entry.
LED Indicator Green for unlocked, red for locked.
Built to Last No moving parts, no wear. 500,000+ cycle rated.
Fail-Safe Design Unlocks when power is cut. Fire safety compliant.
Wide Input AC110-240V, works with US outlets.
Stable Output DC12V 3A powers locks and controllers.
All-in-One Terminals PUSH, GND, COM, NC, NO connect directly.
Adjustable Delay Set lock release time to fit your door.
LED Indicator Clear power and delay status at a glance.

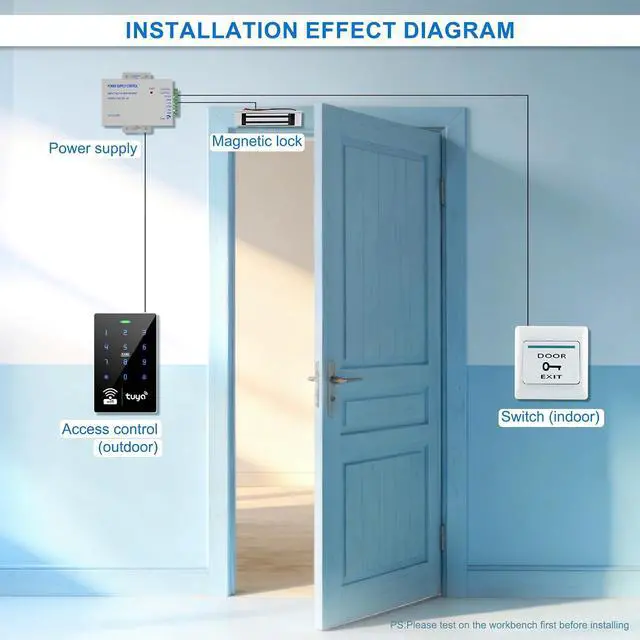

A Clear Layout of Your Complete Access Control System
See exactly how each component fits together before you start. This visual guide takes the guesswork out of installation no electrician required.
Component Placement Guide:
S10TY Control keypad Mounted outside, next to the door at a comfortable touch height. This is where users enter PIN codes, tap IC cards, or trigger the WiFi unlock.
400lb Magnetic Lock Installed on the top inside edge of the door frame. The armature plate attaches to the door itself, creating a powerful magnetic seal when closed.
E6 Exit Button Positioned on the interior wall beside the door. One press releases the lock for quick, key-free exit from inside.
K80 Power Supply Tucked discreetly near a power outlet, above the door or in a nearby utility space. Delivers stable 12V power to the entire system.
IC Access Cards Carry on your keyring or in your wallet. Tap the panel for instant entry no app, no code, no contact needed.
Color-Coded Connections Get It Right the First Time
Every wire is color-matched to its terminal, so you can install confidently without an electrician. Follow the diagram, double-check polarity, and you're done in under 30 minutes.
Before You StartAlways disconnect power before wiring. A quick safety step that protects both you and the components.
Magnetic Lock Wiring Mind the Polarity Red wire connects to NC (N
400lb Industrial-Grade Magnetic Lock Built to HoldMost home access kits use 60-180lb locks. The S10TY ships with a commercial-grade 400lb (180kg) electromagnetic lock the same holding force trusted by offices and storefronts. No moving parts means no mechanical wear, no jamming, and a service life rated for 500,000+ cycles.
Complete 5-Piece Kit No Extra Purchases Needed
3-Way Access Choose What Works for You
Tuya WiFi app Remote unlock from anywhere. No extra gateway needed. Connects directly to WiFi.
Touchscreen PIN code Tap from 1-5cm away. Supports up to 1000 users.
IC card tap-to-enter The kit includes 10 IC cards ready to assign.
Supports temporary passwords & always-open mode Time-limited codes for visitors or unlock on demand.
No keys to lose. Just tap, type, or use your phone.
Rain, dust, or extreme heat the S10TY keeps working.
IP68-rated waterproof (potting sealed)
Wide temperature range: -20 to 70
Low power consumption: 100mA static current
WG26/WG34 Compatible Connects to most access control panels and third-party controllers.
Easy Card Management Add or Delete Instantly Simple keypad programming. Add or remove IC/ID cards in seconds. No software or computer needed.
Home, Office, Gate & Commercial Residential doors, office entrances, community gates, retail stores. IP68 waterproof ABS body.
115×72×16mm DIY Setup Compact size. Clear DC12V wiring. No electrician needed.
400LB Holding Force Powerful for offices, stores, and workshops.
High Tensile Strength Premium materials resist forced entry.
LED Indicator Green for unlocked, red for locked.
Built to Last No moving parts, no wear. 500,000+ cycle rated.
Fail-Safe Design Unlocks when power is cut. Fire safety compliant.
Wide Input AC110-240V, works with US outlets.
Stable Output DC12V 3A powers locks and controllers.
All-in-One Terminals PUSH, GND, COM, NC, NO connect directly.
Adjustable Delay Set lock release time to fit your door.
LED Indicator Clear power and delay status at a glance.
A Clear Layout of Your Complete Access Control System
See exactly how each component fits together before you start. This visual guide takes the guesswork out of installation no electrician required.
Component Placement Guide:
S10TY Control keypad Mounted outside, next to the door at a comfortable touch height. This is where users enter PIN codes, tap IC cards, or trigger the WiFi unlock.
400lb Magnetic Lock Installed on the top inside edge of the door frame. The armature plate attaches to the door itself, creating a powerful magnetic seal when closed.
E6 Exit Button Positioned on the interior wall beside the door. One press releases the lock for quick, key-free exit from inside.
K80 Power Supply Tucked discreetly near a power outlet, above the door or in a nearby utility space. Delivers stable 12V power to the entire system.
IC Access Cards Carry on your keyring or in your wallet. Tap the panel for instant entry no app, no code, no contact needed.
Color-Coded Connections Get It Right the First Time
Every wire is color-matched to its terminal, so you can install confidently without an electrician. Follow the diagram, double-check polarity, and you're done in under 30 minutes.
Before You StartAlways disconnect power before wiring. A quick safety step that protects both you and the components.
Magnetic Lock Wiring Mind the Polarity Red wire connects to NC (N
