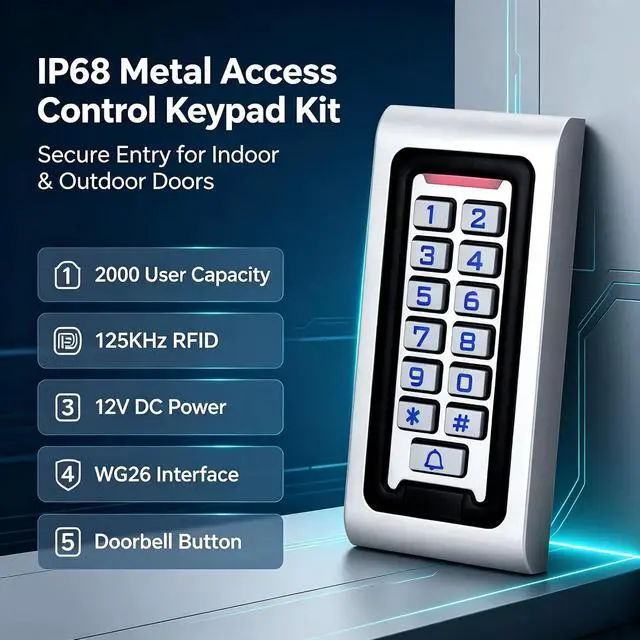

IP68 Waterproof Access Control System Kit,Metal 125KHz RFID Keypad+Power Supply + 180KG/350lbs Electric Magnetic Lock + 10 Key Fobs,Can be Installed Outdoors
- COMPLETE DOOR ACCESS KIT - Includes metal RFID keypad, 180kg magnetic lock, power supply, exit button, and 10 key fobs. Everything needed for installation. No extra parts required.
- 2000 USER CAPACITY - Supports up to 2000 users with unique RFID cards or PIN codes. Unlock via card, PIN, or card+PIN. Ideal for offices, apartments, and commercial security.
- 180KG MAGNETIC LOCK FAIL-SAFE DESIGN - 350lbs holding force electromagnetic lock. Made of high-strength aluminium alloy and iron plate. Unlocks when power is off for emergency safety.

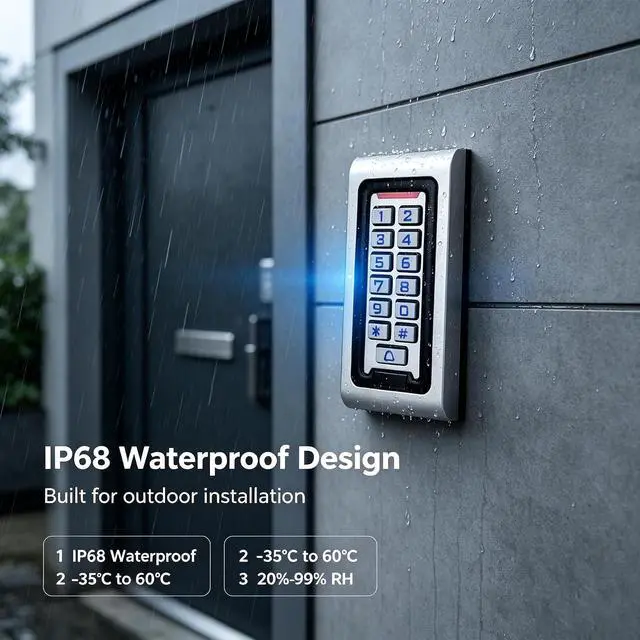

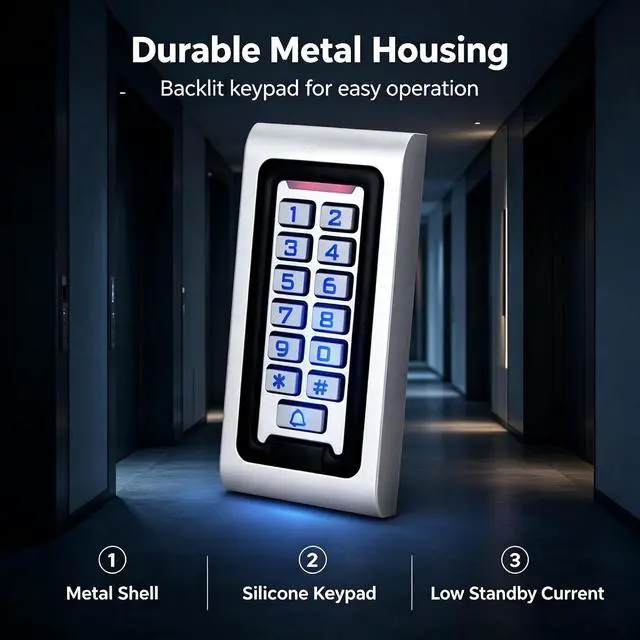

- IP68 WATERPROOF METAL KEYPAD - Durable metal housing with sealed design for outdoor installation. Backlit keypad ensures clear operation at night and in low light.
- EASY INSTALLATION & WIEGAND COMPATIBLE - Simple wiring with included guide. Features Wiegand 26 interface for connecting alarms, doorbells, and additional readers. Works with backup 12V power.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

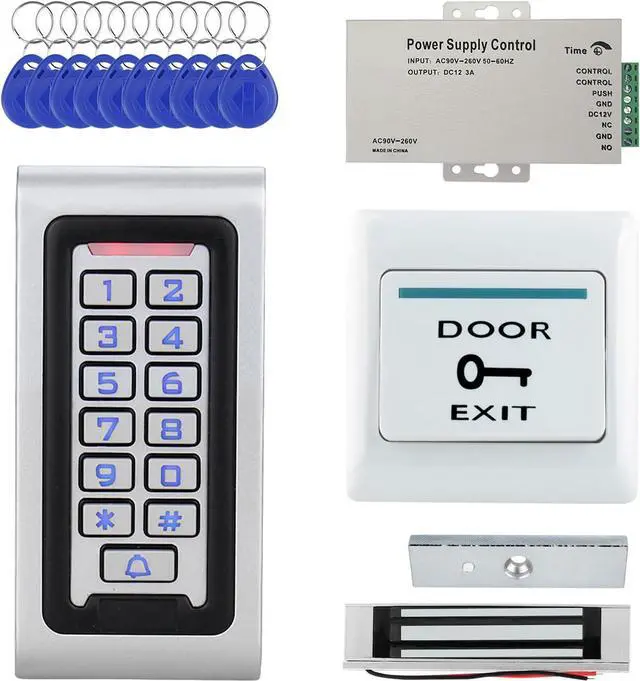

Package including: Access Control keypad + Power supply + 180KG Electric Magnetic Lock + Door Exit button + 10pcs 13.56MHz Keyfobs
Access Control Keypad
Material: Metal casing, silicone buttons
Operating frequency: 125KHz
Operating voltage: 12V DC
User capacity: 2000
Unlocking method: RFID card, password, RFID card + password
Product size: 120*56*20mm
Reading distance: 0-10cm
Waterproof: IP68 waterproof, suitable for outdoor installation
Active current: <60 mA
Operating temperature: -35 to 60
Operating humidity: 20%-90%RH
Adjustable door relay time: 0-99 seconds
Wiegand interface: WG26
Input Voltage: AC90V-AC260V 50-60HZ
Output Voltage: DC12V
Instantaneous Current: 3A / 5A
Continuous Current: 3.5A
Operating Temperature: -20 to +60
Operating Humidity: 90%
Delay: 0~30S
Remote Control Function: Yes
Dimensions: 138*67*37mm (L / W / H)
180KG Standard Magnetic Lock (Surface Mount)
Clamping Force: 180KG
Locking Method: Locks on power, unlocks off power
Suitable for: Wooden, glass, metal, security doors
Dimensions: Lock body: 170 * 40 * 20mm; Iron plate: 130 * 30 * 10mm
Material: Fire-retardant plastic/ABS

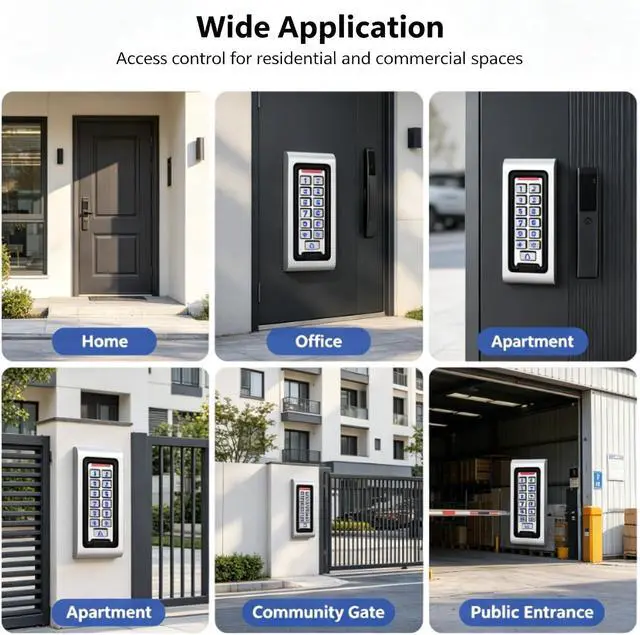

Applications: Home/Office/Hotel/Factory/Shop, etc.
Durability Test: 500,000 cycles
Contact Rating: 3A / 36VDC
Input: 12VDC
Output: NO / NC / COM
Operating Temperature: -10 to +55
Relative Humidity: 0%-90%
Dimensions: 86 * 86 * 20mm
Suitable for access control systems
Material: ABS waterproof material
Support: Read-only, not writable.
Operating Frequency: 125KHz
Chip: TK4100 / EM4100 chip
Each keychain has a metal key ring and a unique ID number.
It can be installed outdoors
The simple wiring diagram is to connect the access control keypad, magnetic lock, and exit button to the DC12V power supply.
The specific wiring of the access control machine and the 12V power supply is: +12V connects to +12V, the COM and GND of the access control machine connect to the GND on the 12V power supply, and the NO on the access control machine connects to the PUSH on the 12V power supply.
After the magnetic lock and switch are connected to the 12V power supply according to the wiring diagram, we can connect the other end of the 12C power supply to the AC110-240V wire we use.
Product Description Power Supply 180KG Electric Magnetic Lock Exit Button RFID ID Key Fob Multiple Door Opening Methods IP68 Waterproof Waterproof Outdoor Installation Perfect for Wiring Diagram Instruction
Access Control Keypad
Material: Metal casing, silicone buttons
Operating frequency: 125KHz
Operating voltage: 12V DC
User capacity: 2000
Unlocking method: RFID card, password, RFID card + password
Product size: 120*56*20mm
Reading distance: 0-10cm
Waterproof: IP68 waterproof, suitable for outdoor installation
Active current: <60 mA
Operating temperature: -35 to 60
Operating humidity: 20%-90%RH
Adjustable door relay time: 0-99 seconds
Wiegand interface: WG26
Input Voltage: AC90V-AC260V 50-60HZ
Output Voltage: DC12V
Instantaneous Current: 3A / 5A
Continuous Current: 3.5A
Operating Temperature: -20 to +60
Operating Humidity: 90%
Delay: 0~30S
Remote Control Function: Yes
Dimensions: 138*67*37mm (L / W / H)
180KG Standard Magnetic Lock (Surface Mount)
Clamping Force: 180KG
Locking Method: Locks on power, unlocks off power
Suitable for: Wooden, glass, metal, security doors
Dimensions: Lock body: 170 * 40 * 20mm; Iron plate: 130 * 30 * 10mm
Material: Fire-retardant plastic/ABS
Applications: Home/Office/Hotel/Factory/Shop, etc.
Durability Test: 500,000 cycles
Contact Rating: 3A / 36VDC
Input: 12VDC
Output: NO / NC / COM
Operating Temperature: -10 to +55
Relative Humidity: 0%-90%
Dimensions: 86 * 86 * 20mm
Suitable for access control systems
Material: ABS waterproof material
Support: Read-only, not writable.
Operating Frequency: 125KHz
Chip: TK4100 / EM4100 chip
Each keychain has a metal key ring and a unique ID number.
It can be installed outdoors
The simple wiring diagram is to connect the access control keypad, magnetic lock, and exit button to the DC12V power supply.
The specific wiring of the access control machine and the 12V power supply is: +12V connects to +12V, the COM and GND of the access control machine connect to the GND on the 12V power supply, and the NO on the access control machine connects to the PUSH on the 12V power supply.
After the magnetic lock and switch are connected to the 12V power supply according to the wiring diagram, we can connect the other end of the 12C power supply to the AC110-240V wire we use.
Product Description Power Supply 180KG Electric Magnetic Lock Exit Button RFID ID Key Fob Multiple Door Opening Methods IP68 Waterproof Waterproof Outdoor Installation Perfect for Wiring Diagram Instruction
