LED Fixture Plug in Microwave Sensor, Plug and Play Microwave Motion Sensor for LED Linear High Bay UFO Canopy Light, DC 12V 3.5MM Audio Jack, BI-Level, Model# ANT-5-4T, 3-Pack
- Super Sensor: An ideal 360 degree motion sensor for high mounted areas like warehouses, manufacturing and other commercial spaces for NEW LED Fixtures coming with 3.5MM Audio Jack sensor receptacle

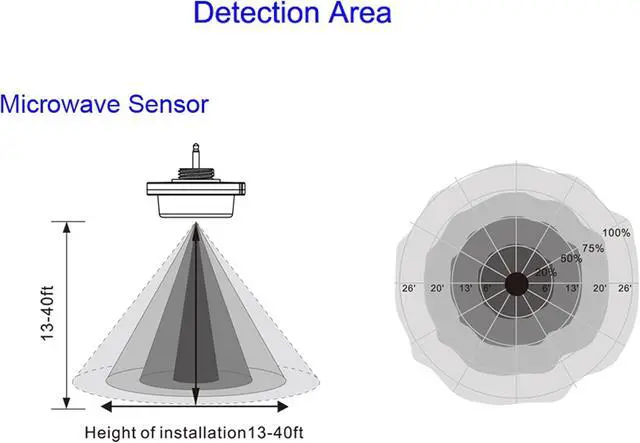

- Wide Detection Range: Sensor Designed for mounting heights of up to 40 ft , provides detection over a 15-26 ft radial coverage pattern,0-10V bi-level control
- Default Setting: Warm up 40sec,100% Sensitivity, Hold-on Time 5min, Dim level 30%, Dim time 60min, Daylight sensor off, can customize your sensor to optimize energy savings and operation by remote controller RC-100
- Energy Save: The sensor protects and extends fixture life while maximizing energy savings by turning the lights off when it detects no movements in a given duration of time
- Friendly Customer Service: Thanks purchase motion sensor with Atictek. During used, if have any question of our Motion sensors please contact us, we will respond within 24 hours
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Input Voltage: 12-24Vdc
Contact Type: Audio Jack
Receptacle: In 3.5mm AUX socket
Mounting Height: Max. 40Ft
Detection Radius: 20%/50%/75%/100%(3-26FT)
Dimming Control: 0-10V Bi-Level
Remote Capability: Yes
Temperature:-4°F~+140°F(-20°C~+60°C) for PIR, -40°F~+158°F(-40°C~+70°C) for Microwave
IP rating: IP65
Notes:
Plug and Play Motion Sensor for use in 3.5mm AUX socket
Default Setting: Warm up 40/15sec,100% Sensitivity, Hold-on Time 5min, Dim level 30%, Dim time 60min, Daylight sensor off, can customize your sensor to optimize energy savings by remote controller with model# RC-100

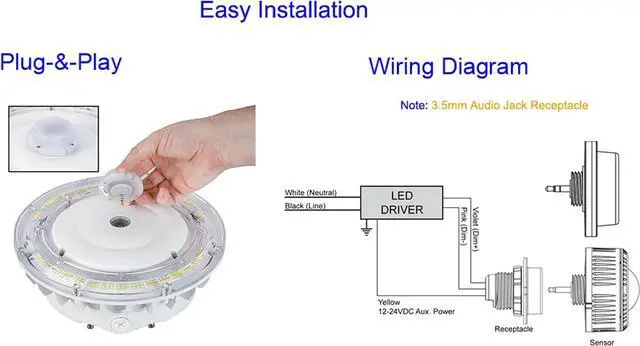

Installations:

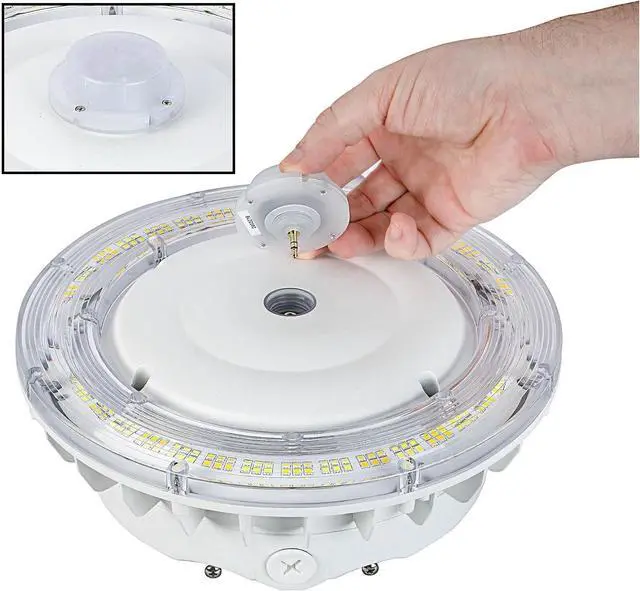

Remove sensor cover from the target fixtures (Such as UFO, Linear high bay, Canopy etc.)
Plug sensor jack into port and rotate sensor clockwise until sensor base reaches the bottom.
Do not overtighten. Ensure sensor is fully and completely engaged with receptacle base.
Notes:
Warm up time is 40/(PIR) seconds or 15/(Microwave) seconds. After the sensor connects input power first time, the light will keep on 40/15seconds,then go to dimming to work normally.
Factory Default Setting: 100% sensitivity, Hold on time: 5min, Daylight sensor is off, Dimming level 30%.Dimming time: 60minitues.
Any setting changed by remote control, the led light that sensor connect will on/off as confirm.
Optional Setting up by RC-100 Controller(sold saperatedly)
Time setting: 10s/1min/5min/10min/15min/20min/30min/60min
Light control 24H/10LUX/30LUX/50LUX

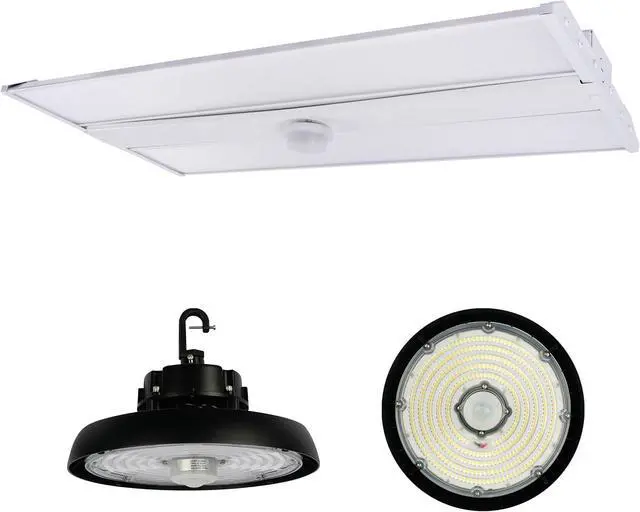

Ideal for commercial and industrial lighting applications, including warehouses, factories, Parking Garage and large spaces, to make LED fixture more Energy-Saving.
Products Dimensions & Specifications Basic Specifications Easy Installation Play-&-Play Sensor Coverage Applications
Contact Type: Audio Jack
Receptacle: In 3.5mm AUX socket
Mounting Height: Max. 40Ft
Detection Radius: 20%/50%/75%/100%(3-26FT)
Dimming Control: 0-10V Bi-Level
Remote Capability: Yes
Temperature:-4°F~+140°F(-20°C~+60°C) for PIR, -40°F~+158°F(-40°C~+70°C) for Microwave
IP rating: IP65
Notes:
Plug and Play Motion Sensor for use in 3.5mm AUX socket
Default Setting: Warm up 40/15sec,100% Sensitivity, Hold-on Time 5min, Dim level 30%, Dim time 60min, Daylight sensor off, can customize your sensor to optimize energy savings by remote controller with model# RC-100
Installations:
Remove sensor cover from the target fixtures (Such as UFO, Linear high bay, Canopy etc.)
Plug sensor jack into port and rotate sensor clockwise until sensor base reaches the bottom.
Do not overtighten. Ensure sensor is fully and completely engaged with receptacle base.
Notes:
Warm up time is 40/(PIR) seconds or 15/(Microwave) seconds. After the sensor connects input power first time, the light will keep on 40/15seconds,then go to dimming to work normally.
Factory Default Setting: 100% sensitivity, Hold on time: 5min, Daylight sensor is off, Dimming level 30%.Dimming time: 60minitues.
Any setting changed by remote control, the led light that sensor connect will on/off as confirm.
Optional Setting up by RC-100 Controller(sold saperatedly)
Time setting: 10s/1min/5min/10min/15min/20min/30min/60min
Light control 24H/10LUX/30LUX/50LUX
Ideal for commercial and industrial lighting applications, including warehouses, factories, Parking Garage and large spaces, to make LED fixture more Energy-Saving.
Products Dimensions & Specifications Basic Specifications Easy Installation Play-&-Play Sensor Coverage Applications
