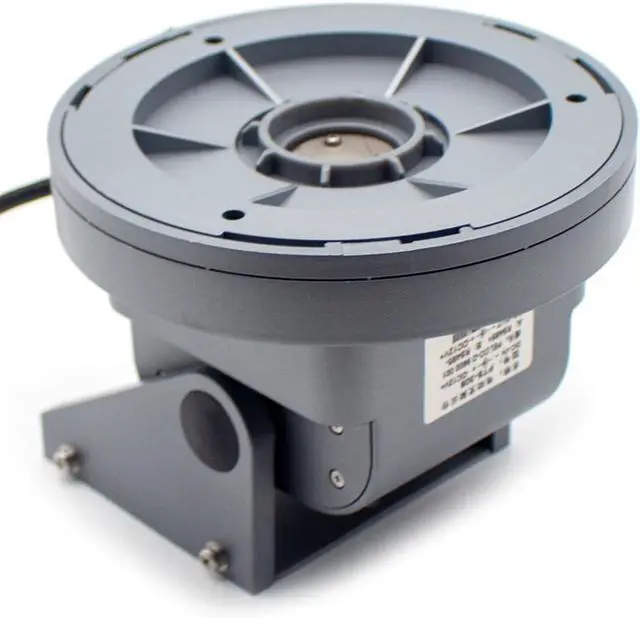

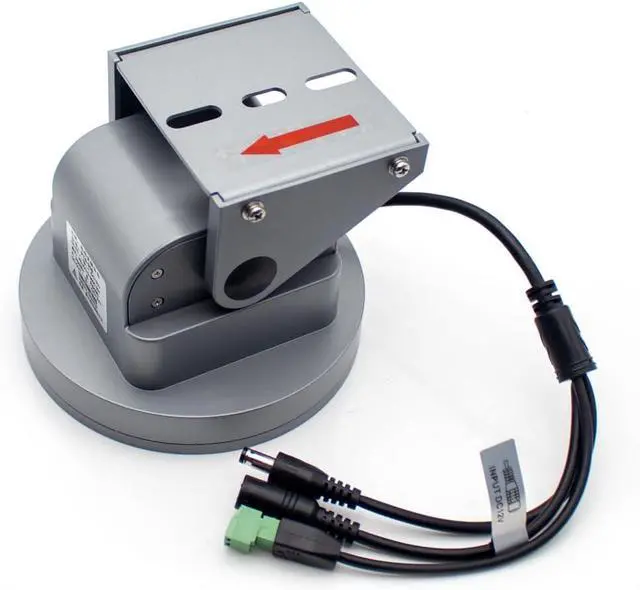

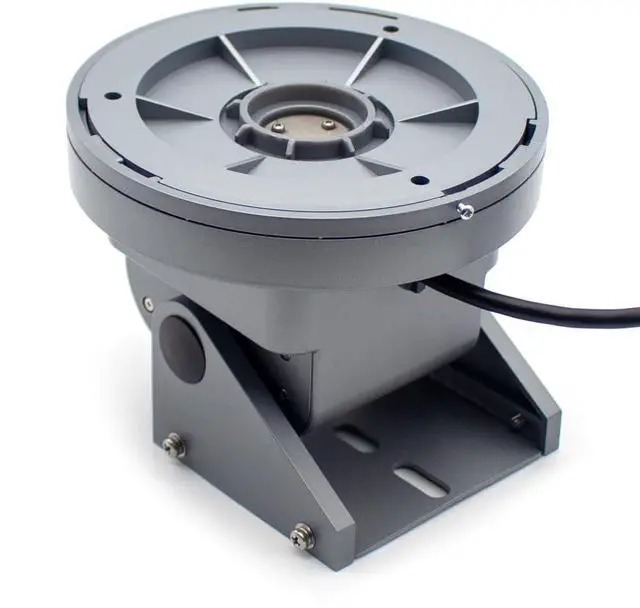

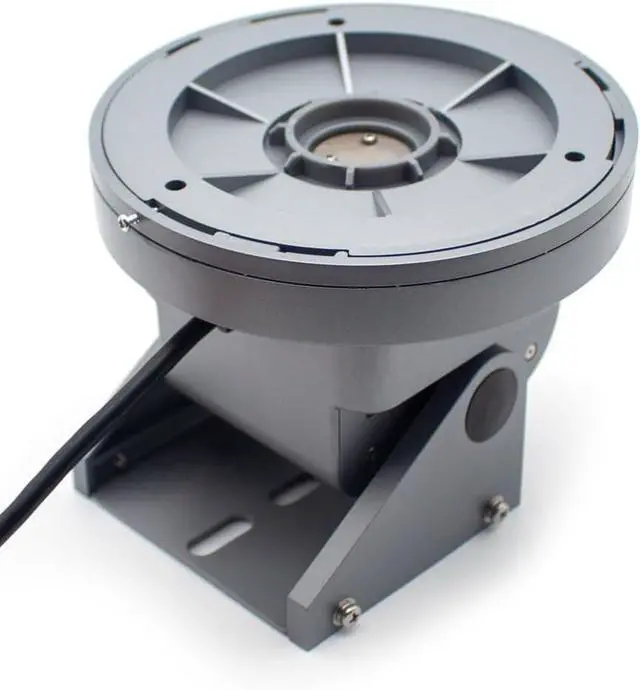

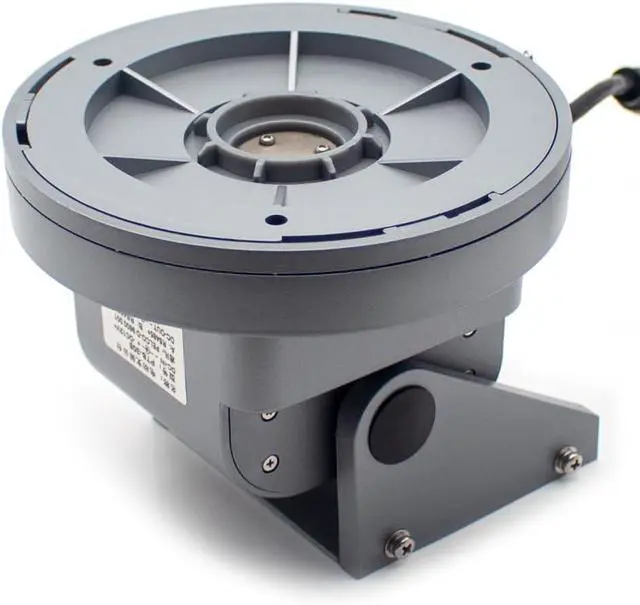

RS485 Electric Pan-Tilt Bracket - 9600 Baud Rate Small Rotation Bracket for Surveillance Cameras
- Control Method: Operates via RS485 interface; requires RS485 commands to rotte.
- No Self-Check or Preset Functions: Does not support automatic self-inspection or preset positions.
- Fixed Settings: Baud rate (9600) and address code are fixed and cannot be modified.
- Smooth Rotation: Provides precise vertical and horizontal movement for flexible camera positioning.
- Compact Design: Lightweight and compact, ideal for small-scale surveillance applications.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
RS485 Electric Pan-Tilt Bracket - 9600 Baud Rate Small Rotation Bracket for Surveillance Cameras
Specification:
Vertical Rotation Speed: 3°/s
Vertical Rotation Range: -15° to 30°
Horizontal Rotation Speed: 10°/s
Horizontal Rotation Range: -90° to 90°
Interface: RS485
Power Supply: DC 12V
Protection Class: Class A
Material: Plastic
Cable Length: 200mm
Control Method: RS485 bus control for pan-tilt function
Load Capacity: 2000g

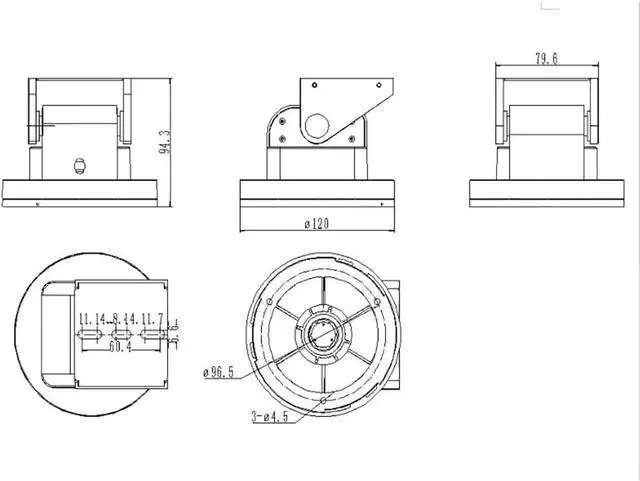

Product Dimensions: 120mm x 94.3mm
Product Weight: 415g
Important Notes:
This pan-tilt bracket does not have self-check or preset position functions. It only moves when controlled via RS485 commands.
The baud rate (9600) and address code are fixed and cannot be changed.
Please verify all parameters before placing an order to ensure compatibility with your system.
Package included:
1 x Electric Pan-Tilt Bracket
Specification:
Vertical Rotation Speed: 3°/s
Vertical Rotation Range: -15° to 30°
Horizontal Rotation Speed: 10°/s
Horizontal Rotation Range: -90° to 90°
Interface: RS485
Power Supply: DC 12V
Protection Class: Class A
Material: Plastic
Cable Length: 200mm
Control Method: RS485 bus control for pan-tilt function
Load Capacity: 2000g
Product Dimensions: 120mm x 94.3mm
Product Weight: 415g
Important Notes:
This pan-tilt bracket does not have self-check or preset position functions. It only moves when controlled via RS485 commands.
The baud rate (9600) and address code are fixed and cannot be changed.
Please verify all parameters before placing an order to ensure compatibility with your system.
Package included:
1 x Electric Pan-Tilt Bracket
