Access Control Keypad Reader Smart Keypad Lock IP65 Waterproof Remote Access Controler Wireless Exit Button 125Khz RFID Smart Lock (AW1-EM Wireless Access Control Kit)

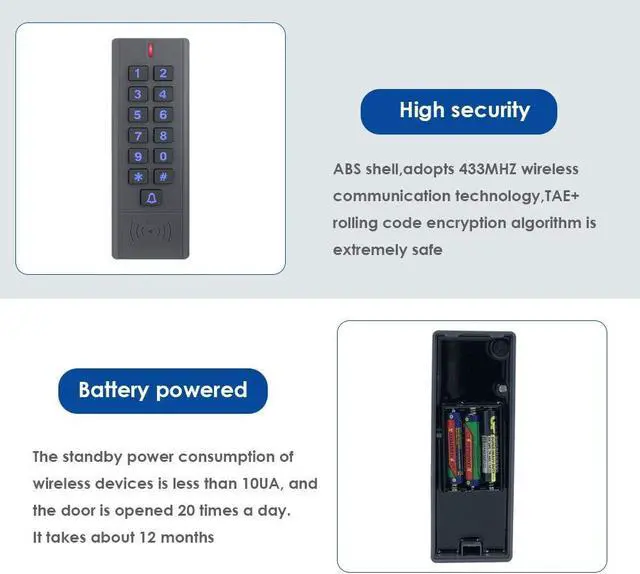

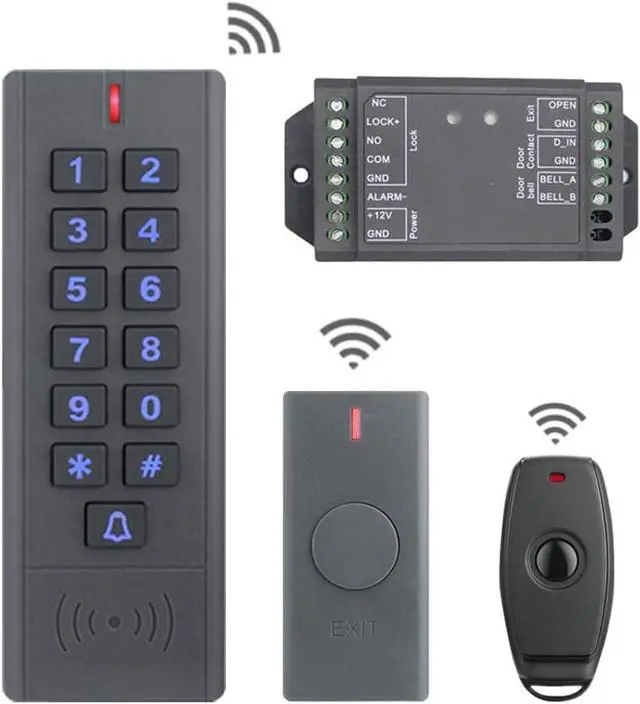

Operating Voltage Keypad: 3 units of AAAbatteries / ExitButton: 2032Lithiumbattery(3V) / Controller: 12VDC ±20% Idle Current Keypad10uA / ExitButton10uA / Controller20mA Working Current Keypad100mA / ExitButton8mA / Controller50mA User Capacity 500 Ordinary Users+100 Visitor Users Card type EM Card Card Frequency 125KHz Communication Frequency 433MHz Communication Distance 30m Maximum Relay Contact Load 2Amp Maximum Operating Temperature -30C+60C, (-22°F140°F Operating Humidity Keypad: 10%-99%, Controller: 10%-88%, Exit Button: 10%-88% Keypad Dimensions L134 X W48 X H25(mm) Exit Button Dimensions L80 X W38 X H15(mm) Controller Dimensions L85 X W50 X H25(mm) Unit Weight Keypad: 150g, Controller: 62g, ExitButton: 34g This is a set ofaccess control devices with ABS shell. Communication over 433MHz using TEA+ rolling code encryption algorithm. The kit consists of these devices:wireless keypad,wireless exit button, controller.wireless keyboard machine and wireless exit button do not need wiring, and it is easy to install. One controller can be equipped with 5 wireless keyboard machines.
Wireless keypad supports 500 ordinary users and 100 Visitor users, open the door with a 4-8 digit PIN or EM/Mifare card. For night time use, white backlight is installed on the wireless keypad.

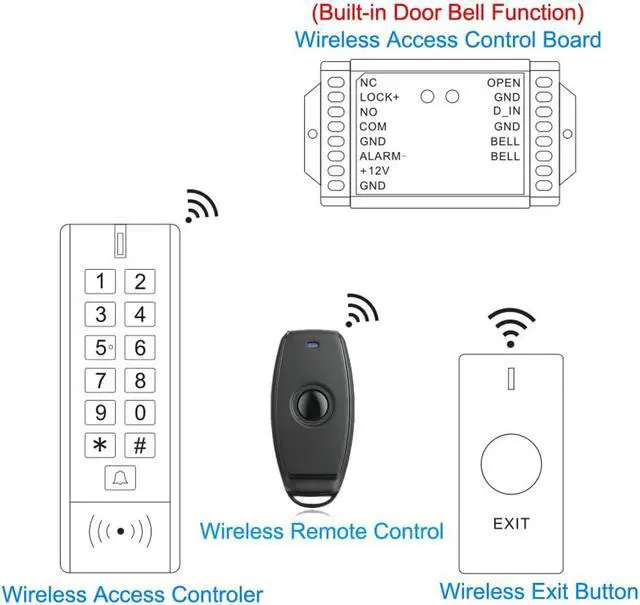

There is a doorbell in the controller,Controller provides a variety of interfaces. such as external doorbell interface,alarm interface, and exit button interface,Door contact can be connected to controller for break in detection.Up to 5 wireless keypads and wireless exit buttons can be set to work with one controller.A single wireless keypad or wireless exit button can be set to work with multiple controllers.
There is a photosensitive anti-dismantle button on the back of the wireless access control controller, which can be connected to an external alarm or electromagnetic switch to prevent disassembly and theft

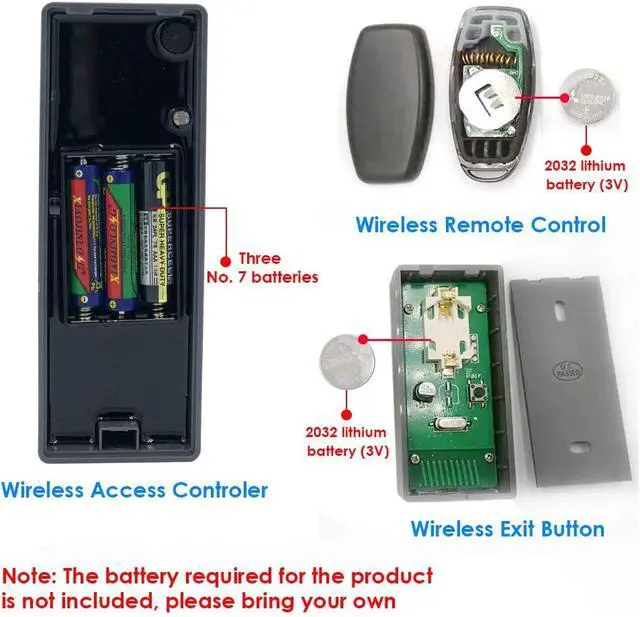

The access control keyboard supports 3 AAA batteries (NO.7), and the wireless remote control and switch support CR2032 button batteries (3V).
Note: The battery required for the productis not included, please bring your own
1.TEA+Rolling Code of encryption algorithm and the splitdesign guarantees higher-secure.
2.Keypad waterproof, conforms to IP66.
3.Backlit keypad

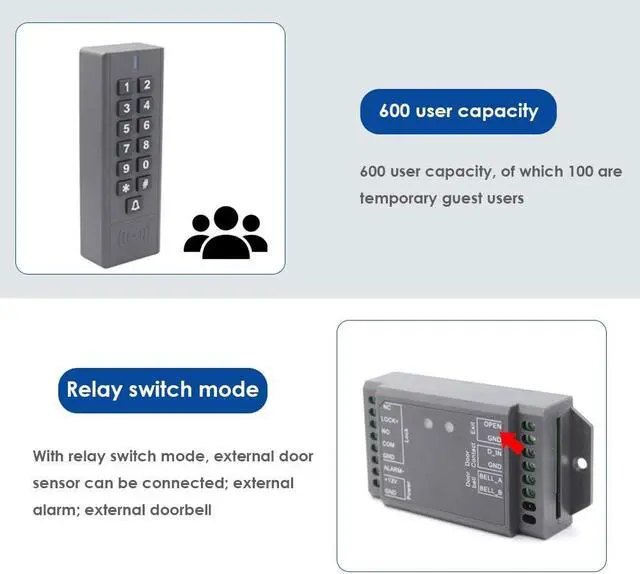

4.500 Ordinary Users+100 Visitor Users.
5.PIN length: 4-8 digits.
6.The controller has Doorbell sound and can external another doorbell also.
7.Pulse Mode or Toggle Mode.
8.Door detection, external alarm.
AW1-EM Wireless Access Control Kit Specifications INTRODUCTION Access Control Keypad Photosensitive anti-tamper function The battery types supported by the device Features and Benefits
