Complete Access Control System Kit RFID Keypad Reader (125KHz, 1000 Users), 180KG/350lb Magnetic Lock, 12V 3A Power Supply, Exit Button, 10 Key Key Fobs for Home Office Security

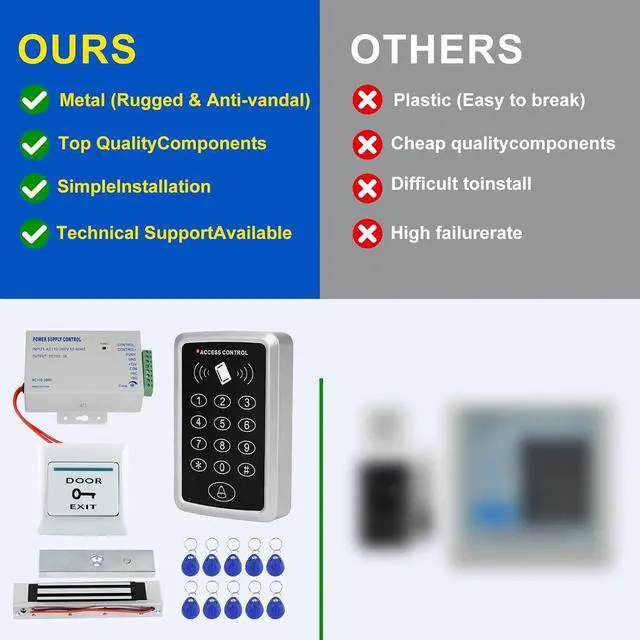

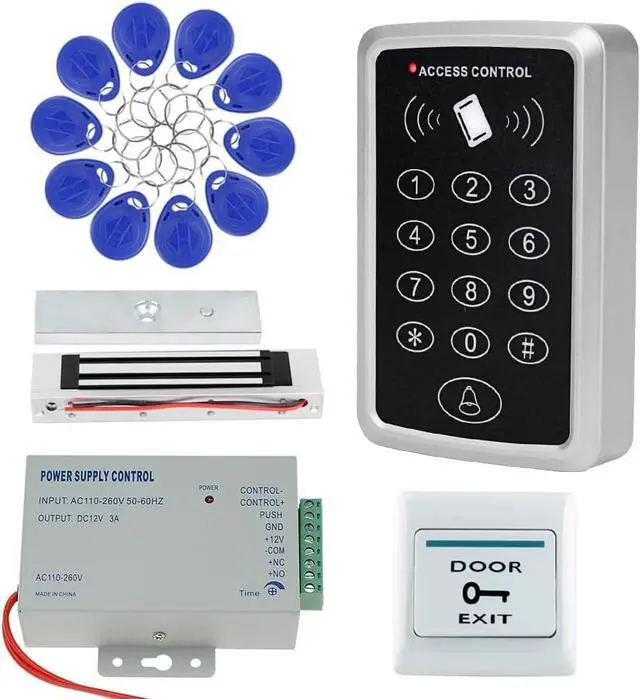

- Complete Access Control KitThe kit includes: T12 metal keypad, 180KG magnetic lock, 12V 3A power supply, exit release button, and 10 125KHz ID key fobs. All included in one package, no need to purchase accessories separately, making installation easier.
- 180KG Magnetic Lock Strong Adsorption, Safe and ReliableEquipped with an electromagnetic lock featuring 180KG/350lb suction power, it unlocks upon power failure (Fail-Safe) and automatically releases in emergencies to ensure unobstructed escape routes. Suitable for offices, apartment doors, warehouses, shops, and other locations.

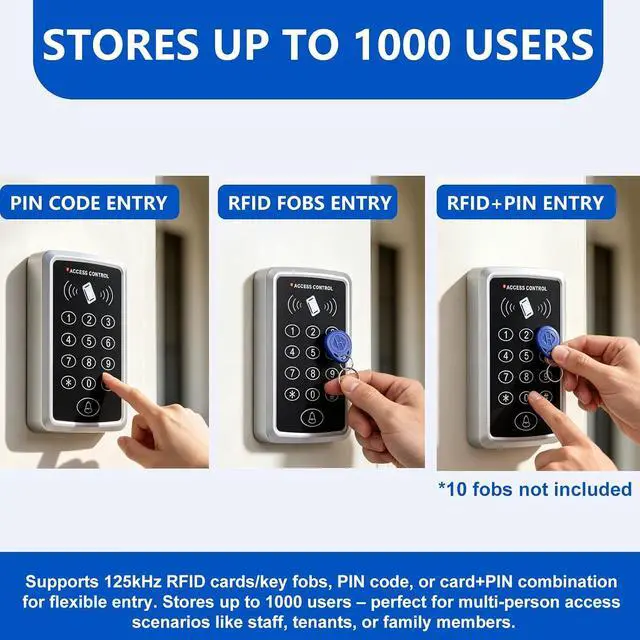

- 1000 User Capacity, Three Opening ModesSupports three opening methods: 125KHz RFID card/key fob, password, and card + password. It can store up to 1000 users, suitable for scenarios with multiple people entering and exiting.
- Computer-Free, Extremely Simple Programming: The management card can be set up directly, and all programming operations can be completed on the keyboard. No computer c
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Uoonner access control kit includes keypad reader, magnetic lock, power supply, exit button, and 10 key fobs all in one box. Perfect for offices, apartment gates, warehouses, and retail stores. Easy to install and manage.
Material: ABS
Voltage: DC12V
Current: <100mA
User Capacity: 1000 users
Proximity Reader Frequency: 125KHz
Reading Distance: 0-10cm
Operating Temperature: -10 to +70
Dimensions: 120 x 22 x 78 mm (L/H/W)
Opening Options: RFID Card (Keychain), Password, RFID Card (Keychain) + Password
AC Input: Standard AC110V-260V 50-60HZ, DC Output: DC12V/3AN
C/NO output setting, can control various types of electric locks.A
utomatic protection function: Automatic protection with no voltage output when a short circuit occurs in the surrounding circuit.D
imensions: 130*67*37mmM
aterial: Metal
Operating Voltage: DC12V, Operating Current: 380-500mA
NC Mode: Fail-safe, unlocks when power is off, locks when power is on.
Features: Unfolds installation, built-in reverse current protection device (MOV).
Suitable for: Wooden doors, glass doors, metal doors, fire doors, etc.
Lock Dimensions: 6.77 x 1.57 x 0.82 inches (172 x 40 x 21 mm); Armature Plate Dimensions: 5.11 x 1.25 x 0.43 inches (130 x 32 x 11 mm)
1. Dimensions: 86 * 86 * 8mm
2. Material: Fire-retardant ABS plastic
3. Power Input: DC 12V
4. Output Contacts: NO / COM
Material: ABS Plastic
Frequency: 125KHz
Color: Blue
Quantity: 10 pieces
K80 Power Supply:
180kg/350lbsElectromagnetic Lock
Exit Release Button
10*RFID Keychain
Built with durable ABS material, resistant to wear and tear. Supports 125KHz RFID card/key fob, PIN code, or card+PIN combination. Stores up to 1000 users ideal for multi-tenant environments. Comes with IP65 waterproof cover for indoor and outdoor use.
The access control keypad is equipped with an IP65 waterproof protective cover, and can operate in temperatures ranging from -10°C to +70°C, making it resistant to rain, dust, and extreme temperatures. It can operate stably whether used in indoor offices or as an outdoor gate.
The management card can be set directly, and all programming operations can be completed on the keyboard without connecting to a computer or requiring additional software; with a clear instruction manual, the entire process from installation to debugging is barrier-free, and even beginners can get started quickly.
All-in-One Access Control Kit Ready to Use, Security Upgraded T12 Access Control Keyboard K80 Power Supply: 180kg/350lbsElectromagnetic Lock Exit Release Button 10*RFID Keychain Wiring diagram
Material: ABS
Voltage: DC12V
Current: <100mA
User Capacity: 1000 users
Proximity Reader Frequency: 125KHz
Reading Distance: 0-10cm
Operating Temperature: -10 to +70
Dimensions: 120 x 22 x 78 mm (L/H/W)
Opening Options: RFID Card (Keychain), Password, RFID Card (Keychain) + Password
AC Input: Standard AC110V-260V 50-60HZ, DC Output: DC12V/3AN
C/NO output setting, can control various types of electric locks.A
utomatic protection function: Automatic protection with no voltage output when a short circuit occurs in the surrounding circuit.D
imensions: 130*67*37mmM
aterial: Metal
Operating Voltage: DC12V, Operating Current: 380-500mA
NC Mode: Fail-safe, unlocks when power is off, locks when power is on.
Features: Unfolds installation, built-in reverse current protection device (MOV).
Suitable for: Wooden doors, glass doors, metal doors, fire doors, etc.
Lock Dimensions: 6.77 x 1.57 x 0.82 inches (172 x 40 x 21 mm); Armature Plate Dimensions: 5.11 x 1.25 x 0.43 inches (130 x 32 x 11 mm)
1. Dimensions: 86 * 86 * 8mm
2. Material: Fire-retardant ABS plastic
3. Power Input: DC 12V
4. Output Contacts: NO / COM
Material: ABS Plastic
Frequency: 125KHz
Color: Blue
Quantity: 10 pieces
K80 Power Supply:
180kg/350lbsElectromagnetic Lock
Exit Release Button
10*RFID Keychain
Built with durable ABS material, resistant to wear and tear. Supports 125KHz RFID card/key fob, PIN code, or card+PIN combination. Stores up to 1000 users ideal for multi-tenant environments. Comes with IP65 waterproof cover for indoor and outdoor use.
The access control keypad is equipped with an IP65 waterproof protective cover, and can operate in temperatures ranging from -10°C to +70°C, making it resistant to rain, dust, and extreme temperatures. It can operate stably whether used in indoor offices or as an outdoor gate.
The management card can be set directly, and all programming operations can be completed on the keyboard without connecting to a computer or requiring additional software; with a clear instruction manual, the entire process from installation to debugging is barrier-free, and even beginners can get started quickly.
All-in-One Access Control Kit Ready to Use, Security Upgraded T12 Access Control Keyboard K80 Power Supply: 180kg/350lbsElectromagnetic Lock Exit Release Button 10*RFID Keychain Wiring diagram
