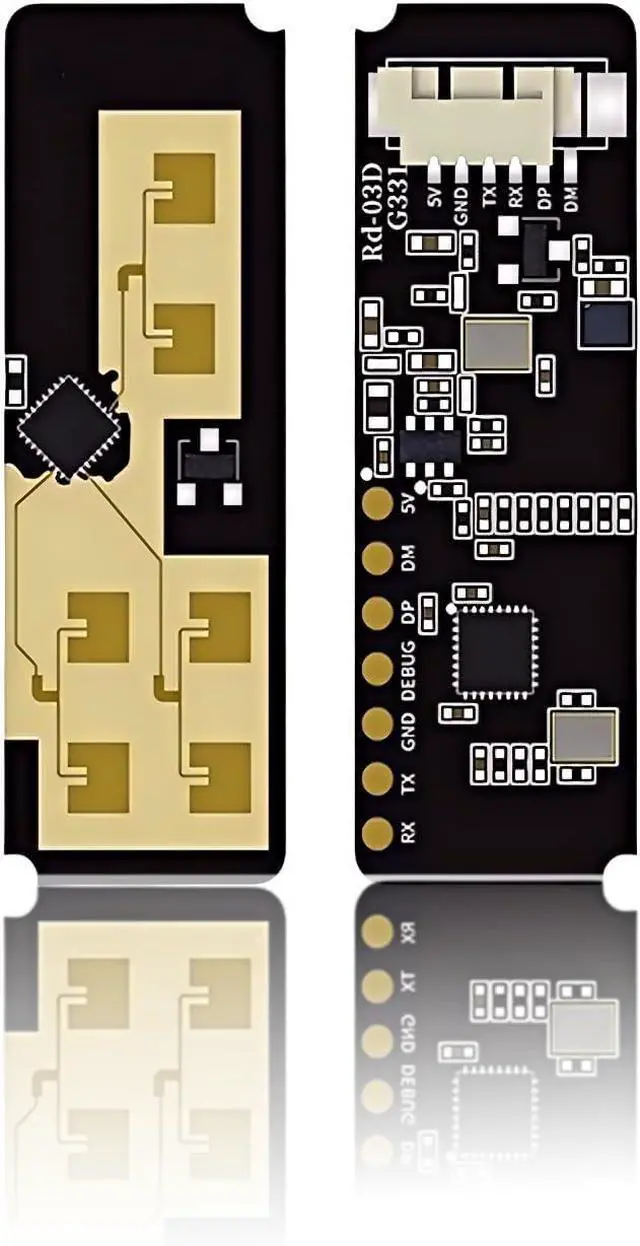

Rd-03D 24G Hz Multi-Target Human Motion Trajectory Positioning and Tracking Radar Module, 2pcs

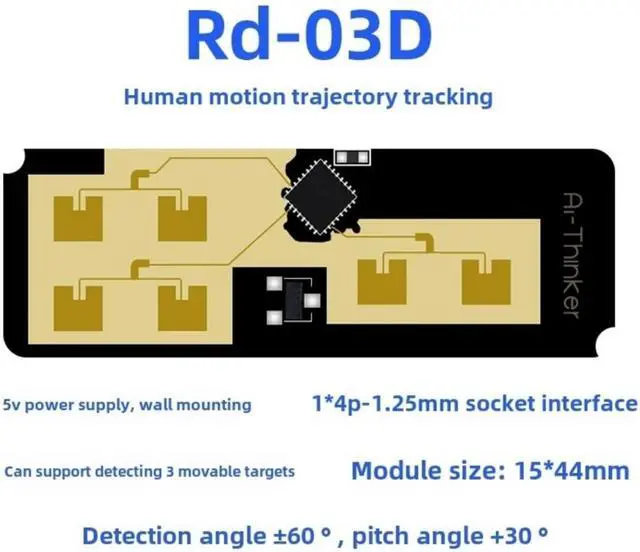

- Rd-03d mmwave human detection sensor: 5V power supply wall mounted installation, capable of detecting 3 moving targets simultaneously, Module size: 15mm * 44mm, 1 * 4P-1.25mm socket interface. Detect azimuth angle ± 60 °, elevation angle ± 30 °,Detection distance: 8 meters.
- Rd-03d mmwave radar: Using the S5KM312CL chip, it accurately perceives the motion status of the human body and the area, and is equipped with intelligent algorithms to achieve motion trajectory recognition and tracking, which can measure the speed and distance of targets in the area.

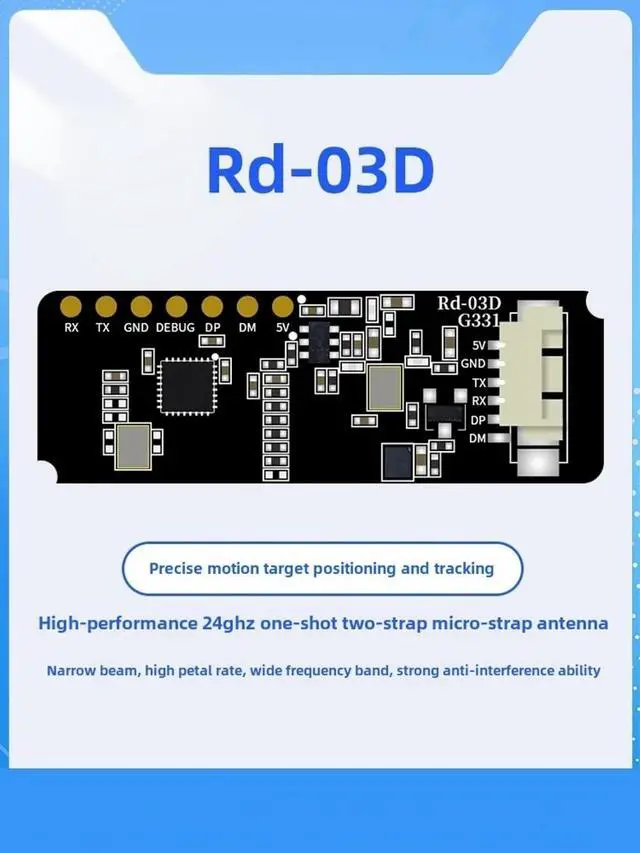

- Accurate motion target positioning and tracking: High performance Rd-03d 24G Hz one transmitter and two receivers microstrip antenna, featuring narrow beam, high resolution, wide frequency band, strong anti-interference ability, and low power consumption
- Radar rd-03d:Plug and play, real-time reporting of detection results, real-time display of distance, angle, speed, position and other information, recognition of the motion status o
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Purchase and you will receive
Rd-03d mmwave human detection sensor Module *1
We offer:
Visual upper level demonstration tool software (English version), which can intuitively experience the tracking effect of RD-03D moduleNeed to purchase TTL serial port adapter.
Rd-03D is a radar module equipped with the S5KM312CL chip.
S5KM312CL is an integrated microcontroller millimeter wave sensor SoC based on FMCW radar transceiver technology.
It operates in the 24 GHz K-band with a maximum scanning bandwidth of 0.25 GHz.
This module adopts FMCW waveform and advanced signal processing technology exclusive to S5 series chips, combined with MCU's proprietary radar signal processing and built-in intelligent positioning and tracking algorithm, to detect multiple targets within a designated area and report the results in real time.
Users can quickly develop corresponding targeted tracking products.
The Rd-03D module accurately senses the motion status of the human body and regions.
It is equipped with intelligent algorithms to achieve motion trajectory recognition and tracking, and can measure the speed and distance of targets within the area.
Faster recognition speed and lower power consumption.
This module can be quickly configured and is suitable for various promotional facilities.
It can intelligently distinguish between human motion, micro motion, and stillness, and control the on/off of the device.
This module has good resistance to external interference and is not affected by wireless signals such as WIFI.
Using standard 1 * 4P-1.25mm socket connectors
2. The radar supports the 24 GHz ISM frequency band
3. High performance 1T2R antenna
4. Accurate target positioning and tracking
5. MAX sensing distance is 8m
6. The ranging resolution is 0.75m and the ranging accuracy is 0.15m

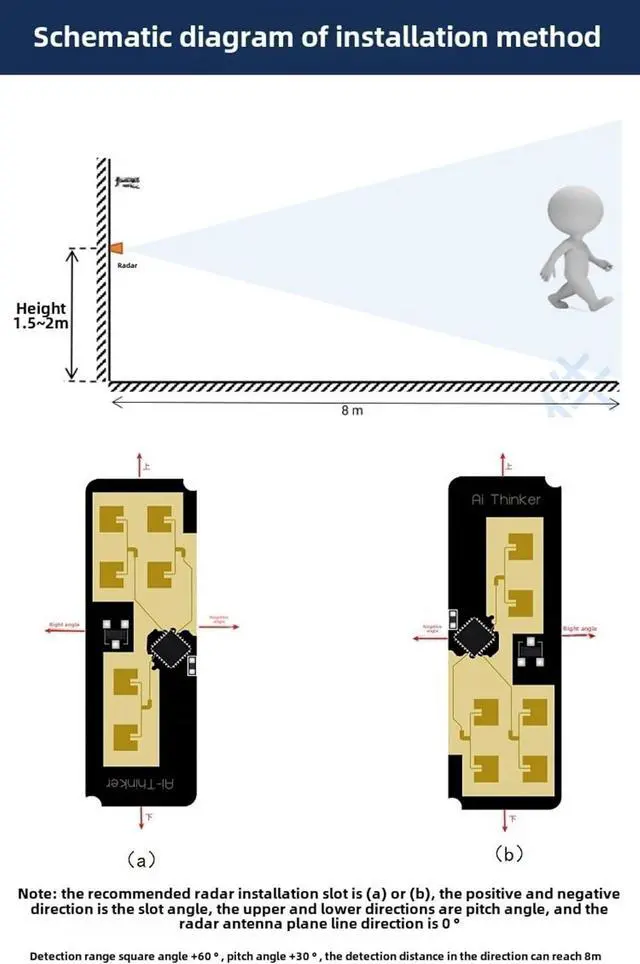

7. Detection range azimuth angle ± 60 °, elevation angle ± 30 ° Wall mounted

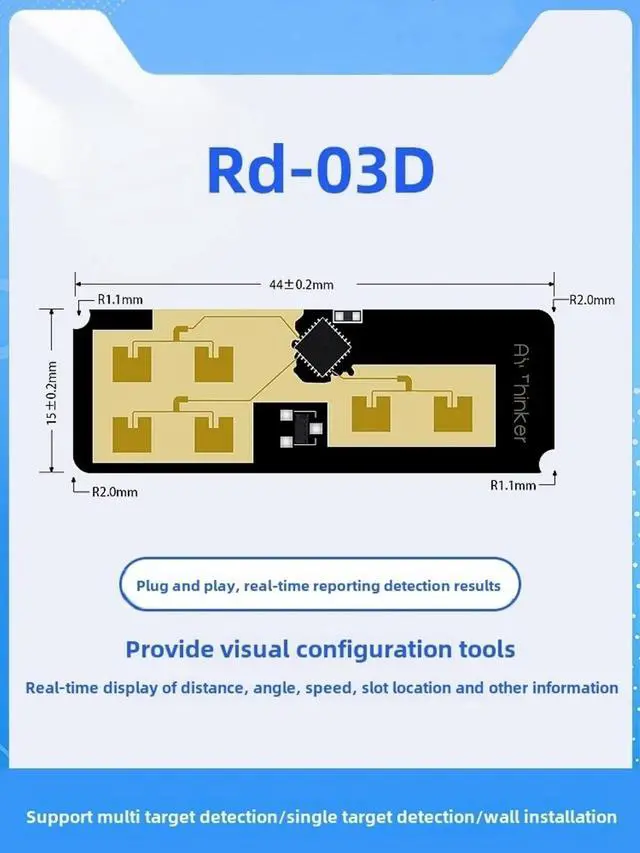

8. Provide visualization tools to configure tracking and detection range, data reporting interval, and target retention time

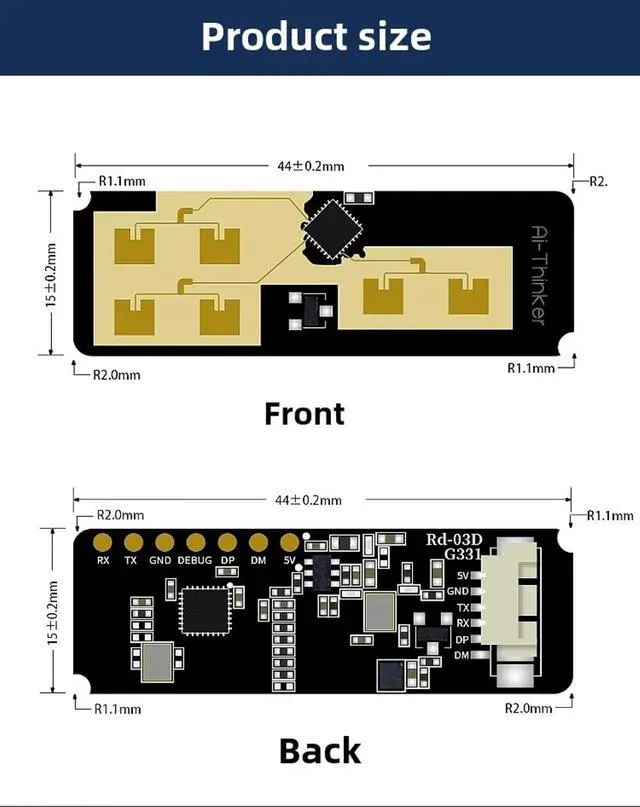

9. Ultra small module size: 15 * 44mmGram8g.
10. Automatically load default configuration, plug and play
11. Supports UART, can use serial port to achieve intelligent parameter adjustment of radar, convenient and fast
12. 5V single power supply
13. Typical application scenarios:
1 * Smart Home
2 * Intelligent Business
3 * Bathroom
4 * Intelligent Lighting
Rrd-03d mmwave radar Presence sensor mmwave presence sensor human presence sensor radar sensor 24ghz radar sensors lidar sensor rd03d esp32
Rd-03d mmwave human detection sensor Module *1
We offer:
Visual upper level demonstration tool software (English version), which can intuitively experience the tracking effect of RD-03D moduleNeed to purchase TTL serial port adapter.
Rd-03D is a radar module equipped with the S5KM312CL chip.
S5KM312CL is an integrated microcontroller millimeter wave sensor SoC based on FMCW radar transceiver technology.
It operates in the 24 GHz K-band with a maximum scanning bandwidth of 0.25 GHz.
This module adopts FMCW waveform and advanced signal processing technology exclusive to S5 series chips, combined with MCU's proprietary radar signal processing and built-in intelligent positioning and tracking algorithm, to detect multiple targets within a designated area and report the results in real time.
Users can quickly develop corresponding targeted tracking products.
The Rd-03D module accurately senses the motion status of the human body and regions.
It is equipped with intelligent algorithms to achieve motion trajectory recognition and tracking, and can measure the speed and distance of targets within the area.
Faster recognition speed and lower power consumption.
This module can be quickly configured and is suitable for various promotional facilities.
It can intelligently distinguish between human motion, micro motion, and stillness, and control the on/off of the device.
This module has good resistance to external interference and is not affected by wireless signals such as WIFI.
Using standard 1 * 4P-1.25mm socket connectors
2. The radar supports the 24 GHz ISM frequency band
3. High performance 1T2R antenna
4. Accurate target positioning and tracking
5. MAX sensing distance is 8m
6. The ranging resolution is 0.75m and the ranging accuracy is 0.15m
7. Detection range azimuth angle ± 60 °, elevation angle ± 30 ° Wall mounted
8. Provide visualization tools to configure tracking and detection range, data reporting interval, and target retention time
9. Ultra small module size: 15 * 44mmGram8g.
10. Automatically load default configuration, plug and play
11. Supports UART, can use serial port to achieve intelligent parameter adjustment of radar, convenient and fast
12. 5V single power supply
13. Typical application scenarios:
1 * Smart Home
2 * Intelligent Business
3 * Bathroom
4 * Intelligent Lighting
Rrd-03d mmwave radar Presence sensor mmwave presence sensor human presence sensor radar sensor 24ghz radar sensors lidar sensor rd03d esp32
