RFID Access Control Kit, Standalone System with 180kg Magnetic Lock, Power Supply, Exit Button, 10 Key Fobs,1000 Users,DC12V for Office Apartment Hotel

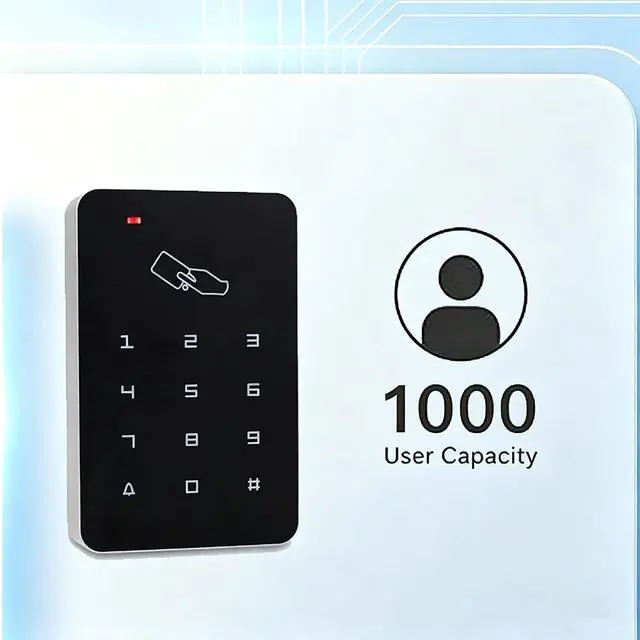

- 1.1000-User Capacity Supports up to 1000 standard users with 125KHz proximity technology. 0-10cm reading distance for quick and reliable card access.
- 2.Flexible Entry Modes Supports card, PIN, or card+PIN access. Built-in doorbell button adds extra convenience for daily use.
- 3.180kg Magnetic Lock Provides strong holding force for reliable door security. Fail-safe design unlocks automatically during power outages.
- 4.Complete Standalone Access Control Kit Works independently without a computer. Includes RFID keypad, 180kg magnetic lock, power supply, exit button, doorbell, and 10 key fobs. One box, ready to install.
- 5.Versatile Applications Low power consumption, easy installation. Ideal for offices, apartments, hotels, homes, and building entrances.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

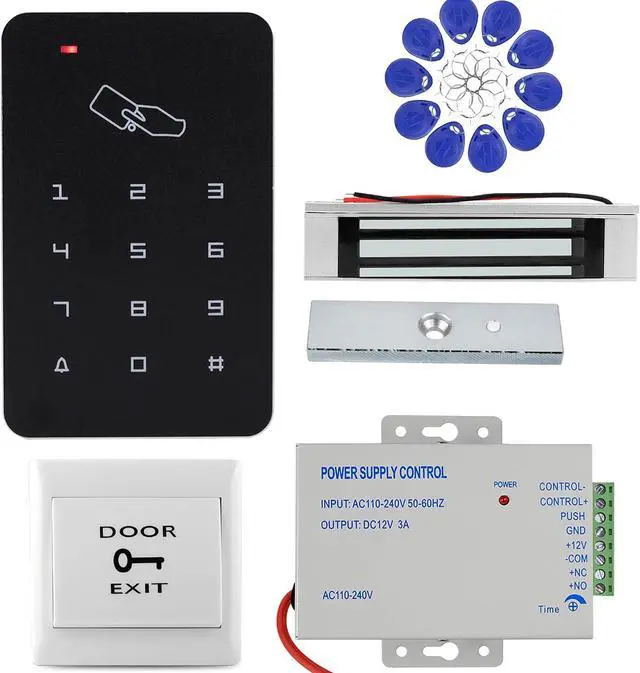

Complete kit RFID keypad, 180kg magnetic lock, power supply, exit button, and 10 key fobs. Supports 1,000 users with card, PIN, or card+PIN access. Standalone no computer needed. Ideal for offices, apartments, hotels, and warehouses.

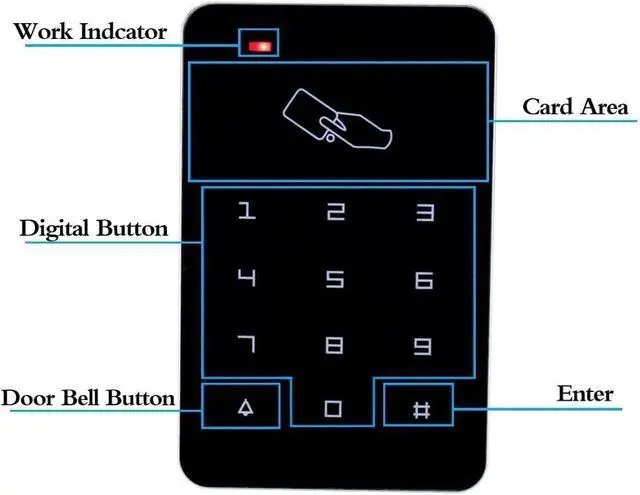

RFID keypad 120 x 78 x 22mm. Supports 1,000 users with card, PIN, or card+PIN. Standalone no computer needed.

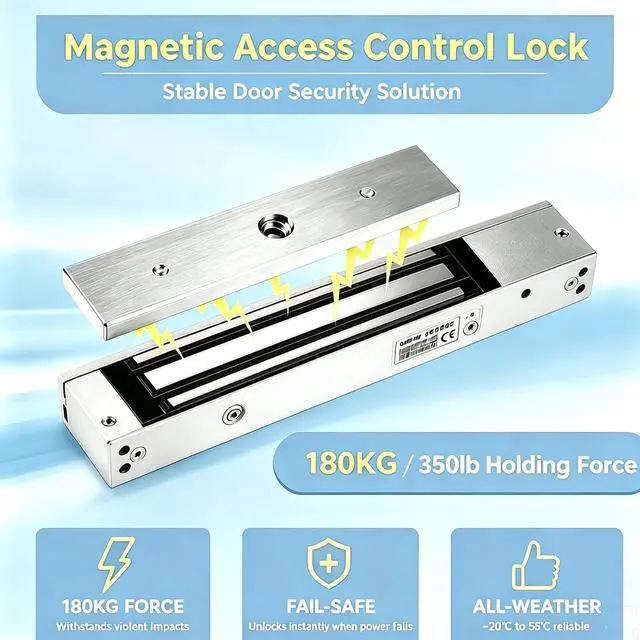

180kg magnetic lock 396lbs holding force. Locks when power is on, unlocks when power is off.

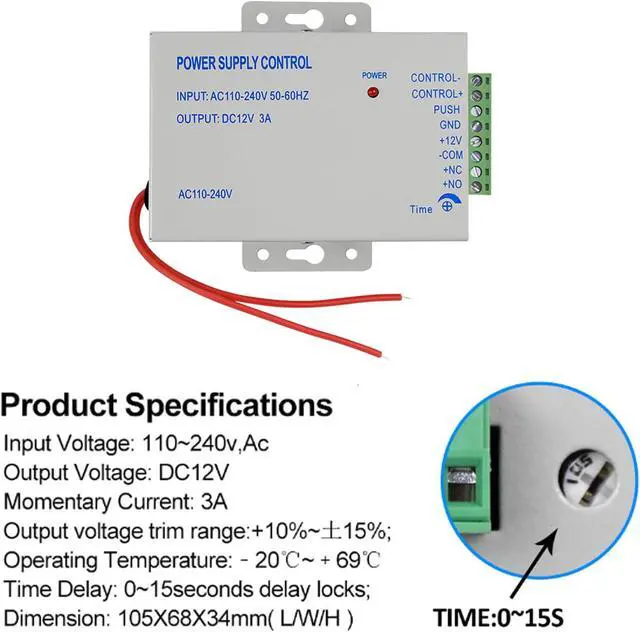

Power supply 105 x 68 x 34 mm. AC 110240V input, DC 12V 3A output. Supports 015s adjustable delay and NC/NO output.

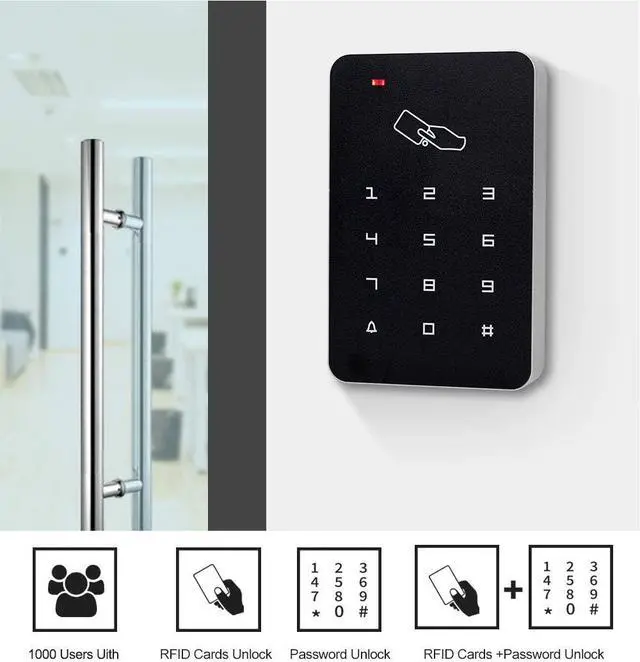

RFID Card Swipe a 125KHz proximity card for quick, contactless entry.
PIN Code Enter a 48 digit password on the keypad. No card needed.
Card + PIN Require both card and PIN for dualverification security.
Outdoor ready Add the weatherproof rain cover to protect your keypad from rain, dust, and direct sunlight.
Allweather performance The durable ABS housing combined with the rain cover ensures reliable operation in outdoor environments.
Ideal for outdoor locations Perfect for gates, garages, warehouses, and building entrances exposed to weather.
Office Manage employee entry with RFID card, PIN, or card+PIN. Supports 1,000 users ideal for daily office access control.
Company Building Standalone operation, no computer needed. Reliable for main entrances, meeting rooms, and restricted areas.
Indoor Use Compact and low power consumption. Fits inside apartment lobbies, hotel corridors, and warehouse offices.
Easy to Install & Operate
The access control kit uses a simple DC 12V wired connection, suitable for most daily door entry applications.
Basic Wiring Steps
1. Connect the access controller to the DC 12V power supply.
2. Connect the electric lock to the power supply output.
3. Connect the exit button to the PUSH and GND terminals.
4. Power on the system and complete user setup according to the manual.
Wide Compatibility
Compatible with electric locks, magnetic locks, exit buttons, RFID cards, PIN codes, and fingerprint access.
Applicable Scenarios Wiring Diagram
RFID keypad 120 x 78 x 22mm. Supports 1,000 users with card, PIN, or card+PIN. Standalone no computer needed.
180kg magnetic lock 396lbs holding force. Locks when power is on, unlocks when power is off.
Power supply 105 x 68 x 34 mm. AC 110240V input, DC 12V 3A output. Supports 015s adjustable delay and NC/NO output.
RFID Card Swipe a 125KHz proximity card for quick, contactless entry.
PIN Code Enter a 48 digit password on the keypad. No card needed.
Card + PIN Require both card and PIN for dualverification security.
Outdoor ready Add the weatherproof rain cover to protect your keypad from rain, dust, and direct sunlight.
Allweather performance The durable ABS housing combined with the rain cover ensures reliable operation in outdoor environments.
Ideal for outdoor locations Perfect for gates, garages, warehouses, and building entrances exposed to weather.
Office Manage employee entry with RFID card, PIN, or card+PIN. Supports 1,000 users ideal for daily office access control.
Company Building Standalone operation, no computer needed. Reliable for main entrances, meeting rooms, and restricted areas.
Indoor Use Compact and low power consumption. Fits inside apartment lobbies, hotel corridors, and warehouse offices.
Easy to Install & Operate
The access control kit uses a simple DC 12V wired connection, suitable for most daily door entry applications.
Basic Wiring Steps
1. Connect the access controller to the DC 12V power supply.
2. Connect the electric lock to the power supply output.
3. Connect the exit button to the PUSH and GND terminals.
4. Power on the system and complete user setup according to the manual.
Wide Compatibility
Compatible with electric locks, magnetic locks, exit buttons, RFID cards, PIN codes, and fingerprint access.
Applicable Scenarios Wiring Diagram
