Tuya WiFi Fingerprint Access Control Kit:100FP/8000C/125kHz+13.56MHz/IP68backlit keypad, 180kg Maglock or Small Electric Lock, 10x IC Keyfobs, PSU, Exit Button Office/Warehouse (180kg)

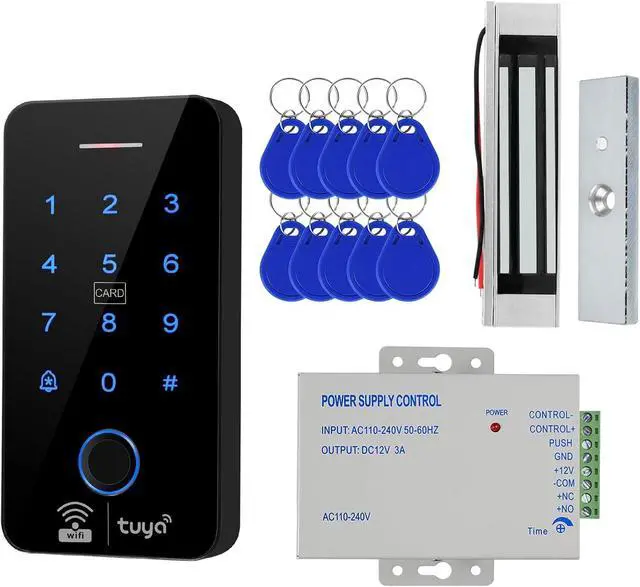

- All-in-One Access Control Kit Includes F20 smart keypad (fingerprint/password/RFID/Tuya app), K80 red line 12V 3A switching power supply, Includes a 180kg magnetic lock (Fail-Safe, 170x40x20mm), and 10 blue IC key fobs (13.56MHz). No need to buy extra components everything for a complete door access system is in the box.
- Tuya Smart Remote & Multiple Entry Methods Control via Tuya Smart App over 2.4GHz WiFi or Bluetooth: remotely unlock, grant/revoke access, view logs. Also supports fingerprint (up to 100), RFID cards (up to 8,000, dual-frequency 125kHz EMID & 13.56MHz MF1K), and keypad password. Blue backlit keys for night use. The 10 included blue IC key fobs work right out of the box.
- Surface Mount Design, Built-in MOV Protection Pull Force: 180kg static pull force, suitable for wooden doors, glass doors, metal doors, and fire doors. Dimensions: Lock body 170×40×20mm, iron plate 130×30×10mm, surface mounting, simple and quick, operating voltage DC12V, current 380-500mA
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
All-in-One Access Control Kit Includes F20 smart keypad (fingerprint/password/RFID/Tuya app), K80 red line 12V 3A switching power supply, Includes a 180kg magnetic lock (Fail-Safe, 170x40x20mm), and 10 blue IC key fobs (13.56MHz). No need to buy extra components everything for a complete door access system is in the box.
Tuya Smart Remote & Multiple Entry Methods Control via Tuya Smart App over 2.4GHz WiFi or Bluetooth: remotely unlock, grant/revoke access, view logs. Also supports fingerprint (up to 100), RFID cards (up to 8,000, dual-frequency 125kHz EMID & 13.56MHz MF1K), and keypad password. Blue backlit keys for night use. The 10 included blue IC key fobs work right out of the box.
Surface Mount Design, Built-in MOV Protection Pull Force: 180kg static pull force, suitable for wooden doors, glass doors, metal doors, and fire doors. Dimensions: Lock body 170×40×20mm, iron plate 130×30×10mm, surface mounting, simple and quick, operating voltage DC12V, current 380-500mA, unlocking time 1s. Safety Modes: Power-on locking, power-off unlocking (Fail-Safe), automatic door opening in emergencies, built-in reverse current protection device (MOV) to effectively resist power surges.
Reliable K80 Power Supply 12V 3A Switching power supply with metal casing. Input 110-240VAC 50-60Hz, output DC12V 3A (36W). Features 0-15s adjustable delay, high efficiency (low heat, no heatsink needed), wide operating temp (-20°C to +65°C), and 500,000 cycle durability test. Keeps your lock and keypad running stable 24/7.

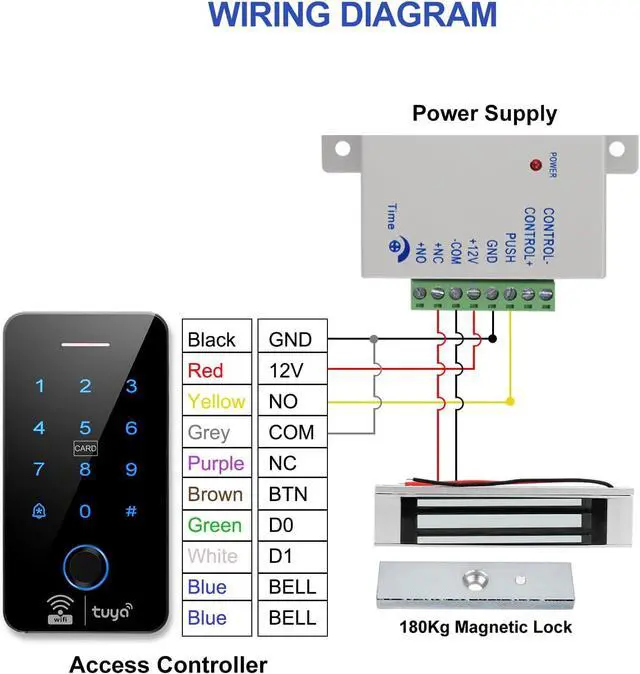

IP68 Waterproof Keypad & Easy Installation Main keypad is IP68 rated fully dustproof and waterproof for outdoor gates, garages, or warehouses. Blue backlit buttons, WG26/34 input/output, powered by 12V DC. The lock has a magnetic sensing design with low power consumption (standby 120mA). All components come with clear wiring diagrams suitable for DIY installation.
Tuya Smart Remote & Multiple Entry Methods Control via Tuya Smart App over 2.4GHz WiFi or Bluetooth: remotely unlock, grant/revoke access, view logs. Also supports fingerprint (up to 100), RFID cards (up to 8,000, dual-frequency 125kHz EMID & 13.56MHz MF1K), and keypad password. Blue backlit keys for night use. The 10 included blue IC key fobs work right out of the box.
Surface Mount Design, Built-in MOV Protection Pull Force: 180kg static pull force, suitable for wooden doors, glass doors, metal doors, and fire doors. Dimensions: Lock body 170×40×20mm, iron plate 130×30×10mm, surface mounting, simple and quick, operating voltage DC12V, current 380-500mA, unlocking time 1s. Safety Modes: Power-on locking, power-off unlocking (Fail-Safe), automatic door opening in emergencies, built-in reverse current protection device (MOV) to effectively resist power surges.
Reliable K80 Power Supply 12V 3A Switching power supply with metal casing. Input 110-240VAC 50-60Hz, output DC12V 3A (36W). Features 0-15s adjustable delay, high efficiency (low heat, no heatsink needed), wide operating temp (-20°C to +65°C), and 500,000 cycle durability test. Keeps your lock and keypad running stable 24/7.
IP68 Waterproof Keypad & Easy Installation Main keypad is IP68 rated fully dustproof and waterproof for outdoor gates, garages, or warehouses. Blue backlit buttons, WG26/34 input/output, powered by 12V DC. The lock has a magnetic sensing design with low power consumption (standby 120mA). All components come with clear wiring diagrams suitable for DIY installation.
