Multi-Door Network Access Control Panel 4 Doors with Software
- [Precise Four-Door Control] Supports access management for up to four doors. Entry is via card swipe, and exit is via a button or card swipe. The system can store, download, and view detailed entry and exit records for easy security management.
- [Large User Capacity and Flexible Access Control] It can accommodate 20,000 users and record up to 100,000 entries. The door opens automatically during office hours, and allows for setting specific time periods for different users, enabling granular authorization management.
- [Professional-grade management software] Equipped with powerful access control management software, supporting a variety of extended control functions, it can meet the professional-grade security management needs of enterprises.
- [Stable Network Communication and Wide System Compatibility] Utilizes the TCP/IP network protocol, ensuring stable and reliable data transmission. Supports Access and SQL Server databases and is compatible with all 32-bit and 64-bit Windows syste
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The software supports all 32-bit and 64-bit Windows systems including Win7/Win8/Win10/Win11.
We provide video tutorials and detailed wiring diagrams, and our professional technical team is available to answer your questions, making system installation easy.

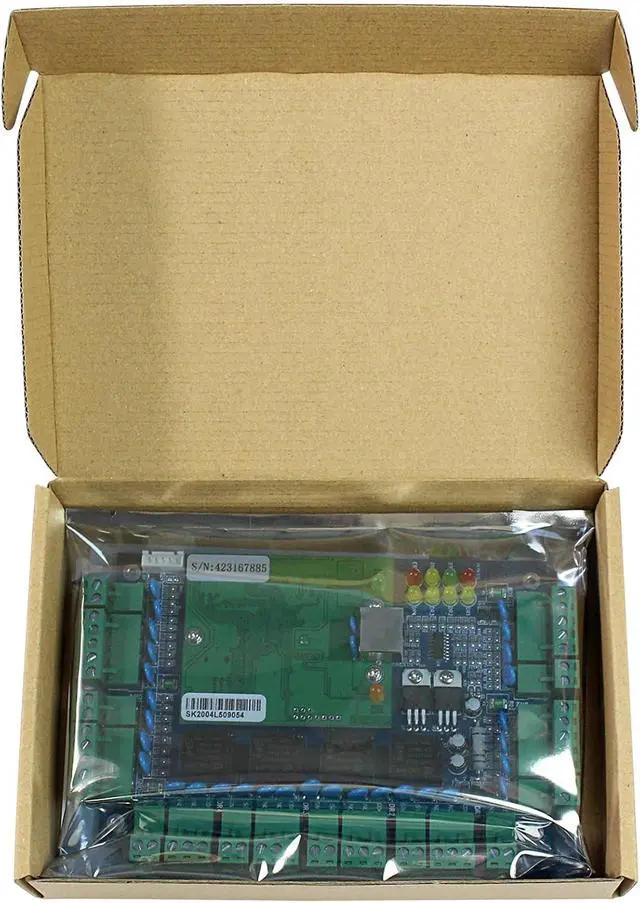

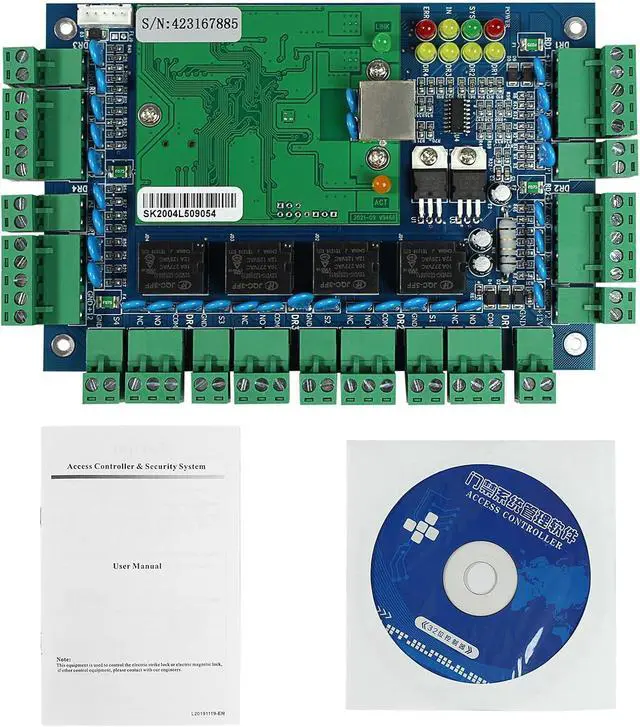

Package includes:
1 access control control panel for 4 doors
1 user manual with detailed instructions
Maximum distance from reader to controller: 100 meters/328 feet (recommended distance 80 meters/262 feet) Prolonged door opening, unauthorized entry, threatening alarm
Fire alarm linkage: Without the expansion board, only a software interface alarm is activated, driving the computer speaker; with the expansion board, a hardware alarm is activated; with the enhanced expansion board, a security alarm is achieved. (Fire alarm linkage board ASIC: B0GKDT8WBP)
Prolonged forced door opening/closing: Yes
Remote door opening: Yes
Block-to-block: Yes
Reverse ball and tail: Yes
Multi-card door opening: Yes
Prolonged opening for a specified time: Yes
Emergency locking: Yes
Features:
Communication Method: TCP/IP
Supported Databases: Access or SQL Server
Control Method: 4 doors, card swipe entry, button exit
Power Supply: 12VDC; 4-7A
Board Power Consumption: Less than 100mA
Reader Input Format: Wiegand 26/Wiegand34 (all compatible readers, RFID/Mifare, etc.)
Number of Readers: 4 units
Door Control: Supports 4-door control
Door Opening Time Extension Setting: 1-600 seconds (adjustable)
Maximum Number of Controllers: Unlimited
Operating Temperature: -40 to 70
Operating Humidity: 10-90% RH, non-condensing
User Capacity: 20,000 users
Log Capacity: 100,000 event buffers

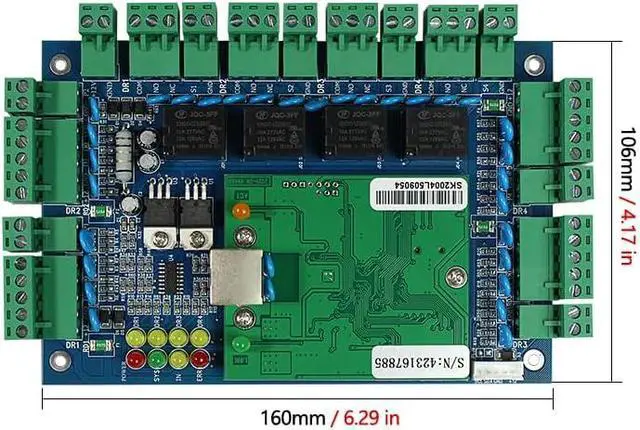

Dimensions: Approx. 16*10.6CM / 6.29*4.17 in

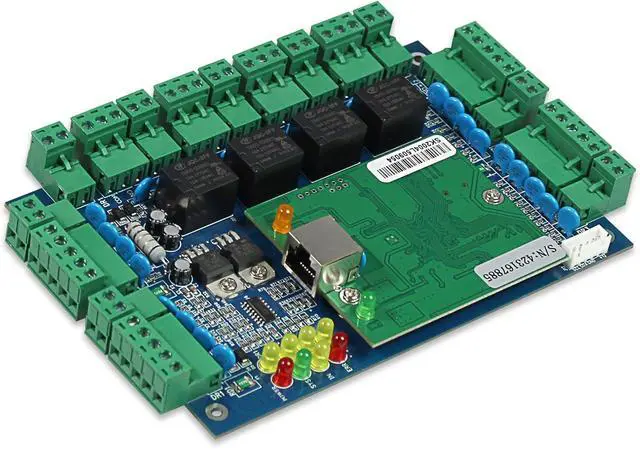

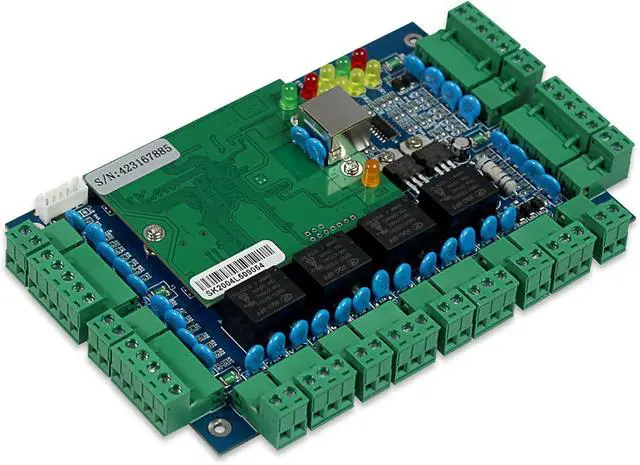

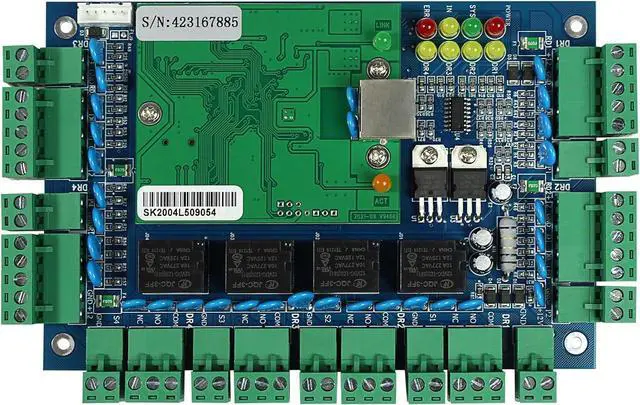

Professional-grade four-door TCP/IP network Wiegand 26-bit access control board panel.
We provide video tutorials and detailed wiring diagrams, and our professional technical team is available to answer your questions, making system installation easy.
Package includes:
1 access control control panel for 4 doors
1 user manual with detailed instructions
Maximum distance from reader to controller: 100 meters/328 feet (recommended distance 80 meters/262 feet) Prolonged door opening, unauthorized entry, threatening alarm
Fire alarm linkage: Without the expansion board, only a software interface alarm is activated, driving the computer speaker; with the expansion board, a hardware alarm is activated; with the enhanced expansion board, a security alarm is achieved. (Fire alarm linkage board ASIC: B0GKDT8WBP)
Prolonged forced door opening/closing: Yes
Remote door opening: Yes
Block-to-block: Yes
Reverse ball and tail: Yes
Multi-card door opening: Yes
Prolonged opening for a specified time: Yes
Emergency locking: Yes
Features:
Communication Method: TCP/IP
Supported Databases: Access or SQL Server
Control Method: 4 doors, card swipe entry, button exit
Power Supply: 12VDC; 4-7A
Board Power Consumption: Less than 100mA
Reader Input Format: Wiegand 26/Wiegand34 (all compatible readers, RFID/Mifare, etc.)
Number of Readers: 4 units
Door Control: Supports 4-door control
Door Opening Time Extension Setting: 1-600 seconds (adjustable)
Maximum Number of Controllers: Unlimited
Operating Temperature: -40 to 70
Operating Humidity: 10-90% RH, non-condensing
User Capacity: 20,000 users
Log Capacity: 100,000 event buffers
Dimensions: Approx. 16*10.6CM / 6.29*4.17 in
Professional-grade four-door TCP/IP network Wiegand 26-bit access control board panel.
