Door Access Control System Kit with NC Electric Strike Lock + 125KHz Access Control Keypad + DC12V 3A Power Supply + Exit Button +10pcs RFID Keyfobs Cards for Door Entry System
- COMPLETE DOOR ACCESS KIT - Includes NC electric strike lock, 125KHz keypad, DC12V 3A power supply, exit button, and 10 RFID keyfobs. No extra parts needed. Ideal for home, office, or apartment.

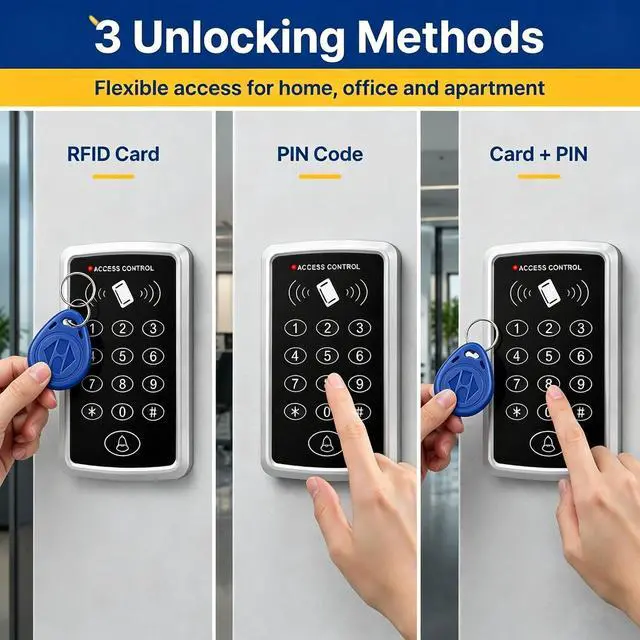

- 1000 USERS & 3 ACCESS MODES - Supports up to 1000 RFID cards or PIN codes. Unlock via RFID card, PIN code, or card+PIN. Perfect for multi-user environments like rental properties or offices.
- STANDALONE PROGRAMMING NO COMPUTER NEEDED - All settings done directly on the keypad. Easily add or delete users and set passwords without any software or PC.
- NC ELECTRIC STRIKE LOCK FAIL-SAFE DESIGN - Metal electric strike lock unlocks when power is off, allowing emergency exit and safe egress. Compatible with wood, metal, and glass doors.
- EASY INSTALLATION & ADJUSTABLE TIME DELAY - Works with DC12V hardwired system. Adjustable door open time (0-255 sec) for flexible access control. Includes manual and wiring diagram for quick setup.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

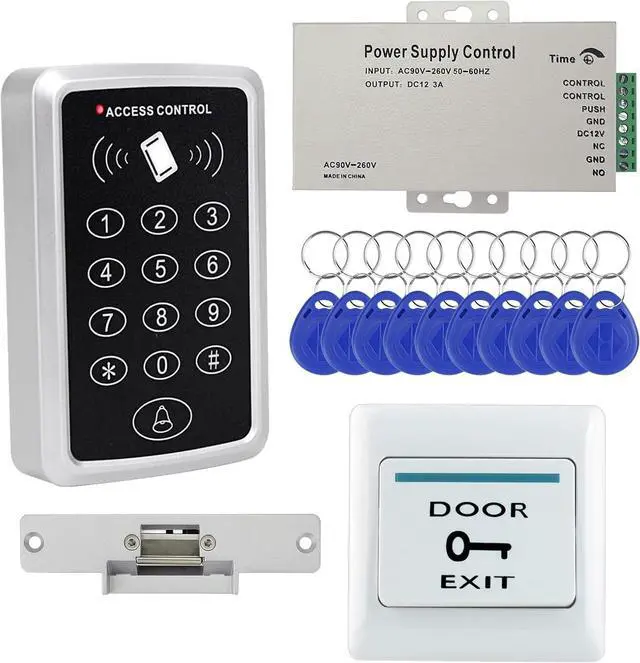

Package including: Access Control keypad + Power supply + NC Electric Strike Lock + Door Exit button + 10pcs 125 KHz Keyfobs

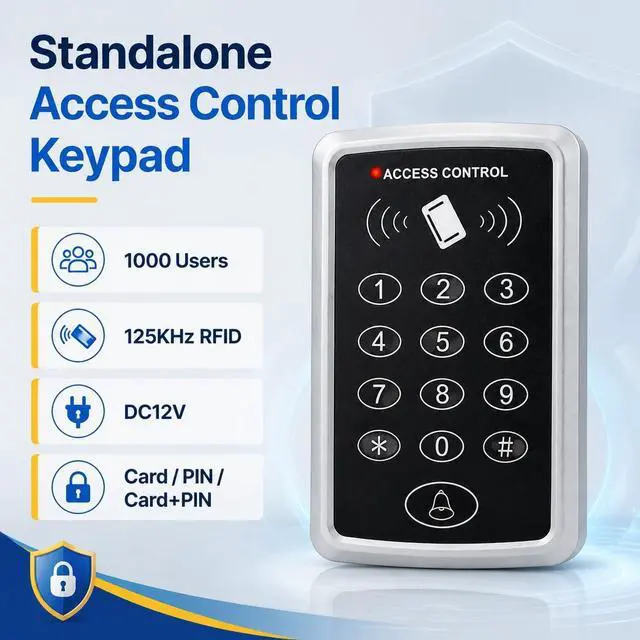

Access Control Keypad

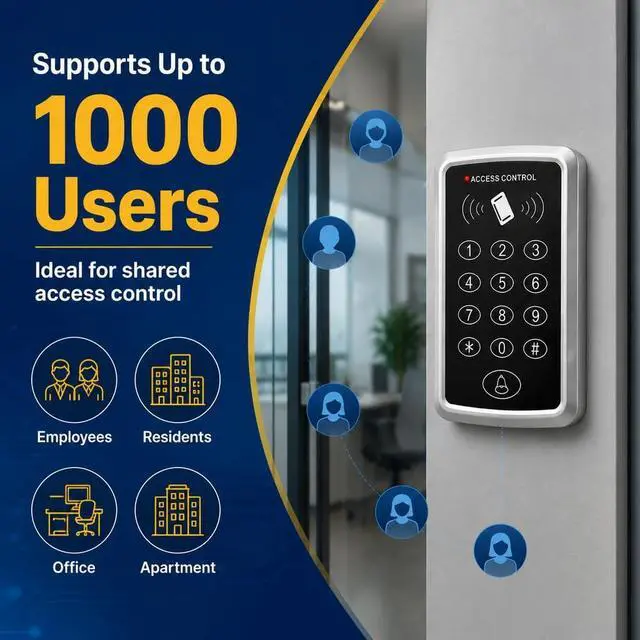

User Capacity: 1000 user cards
Dimensions: 120mm x 78mm x 22mm (L x W x H)
Operating Frequency: 125kHz
Operating Current: <100mA
Operating Voltage: DC12V
Operating Temperature: -10°C to +60°C

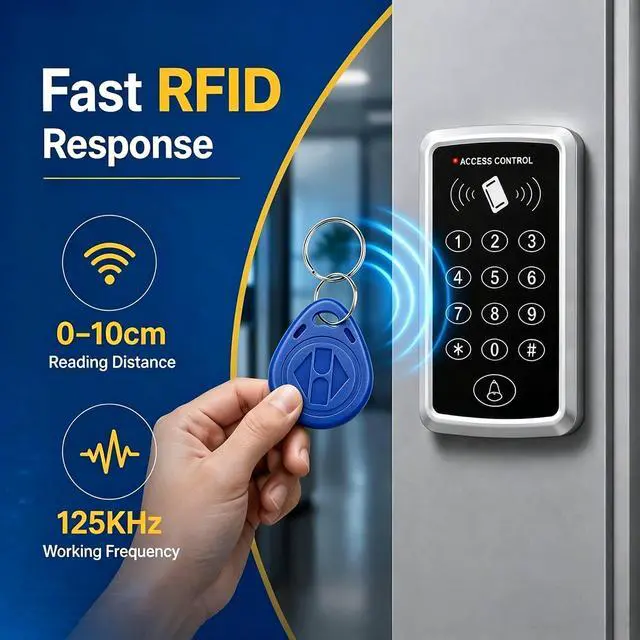

Reading Distance: 0-10cm
Relative Humidity: 20%-90%
Input Voltage: AC90V-AC260V 50-60HZ
Output Voltage: DC12V
Instantaneous Current: 3A / 5A
Continuous Current: 3.5A
Operating Temperature: -20 to +60
Operating Humidity: 90%
Delay: 0~30S
Remote Control Function: Yes
Dimensions: 138*67*37mm (L / W / H)
Clamping force: 500kg
Operating temperature: -30~+60 degrees Celsius
Function: Power-off locking (NO), Power-on locking (NC)
Material: Stainless steel
Function: Built-in MOV
Opening method: 90-degree swing door
Suitable for wooden doors, glass doors, metal doors, fire doors, any framed door, etc.
Dimensions: 150 x 28×34mm (L/W/H)
Material: Fire-retardant plastic/ABS

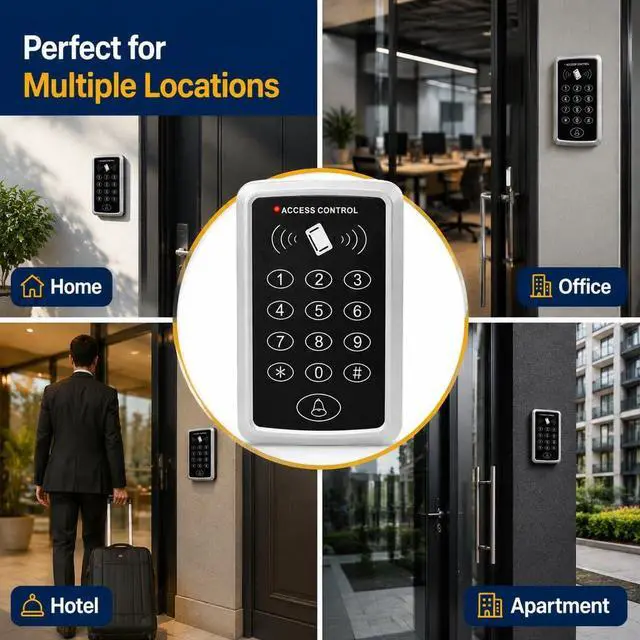

Applications: Home/Office/Hotel/Factory/Shop, etc.
Durability Test: 500,000 cycles
Contact Rating: 3A / 36VDC
Input: 12VDC
Output: NO / NC / COM
Operating Temperature: -10 to +55
Relative Humidity: 0%-90%
Dimensions: 86 * 86 * 20mm
Suitable for access control systems
Material: ABS waterproof material
Support: Read-only, not writable.
Operating Frequency: 125KHz
Chip: TK4100 / EM4100 chip
Each keychain has a metal key ring and a unique ID number.

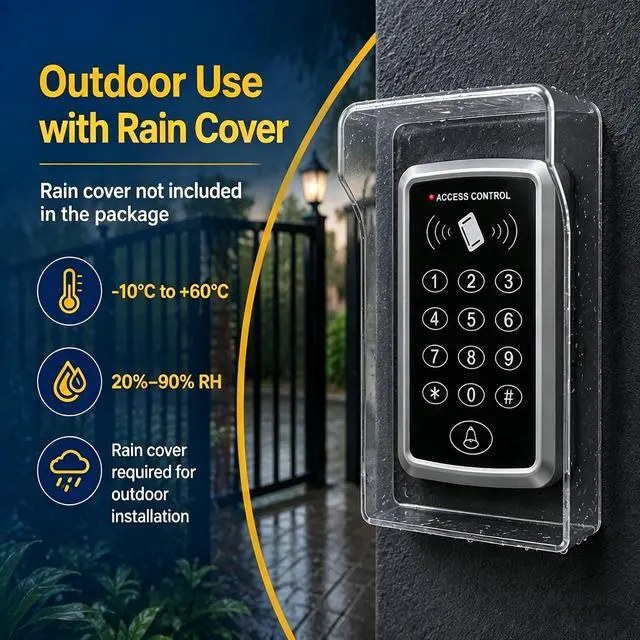

The access control unit can be used with a weatherproof cover and is suitable for outdoor installation.
Please notethis product does not include a rain cover.
For outdoor use, a rain cover can be purchased separately, or you can use existing rain-proof items or shelters at home.
The simple wiring diagram is to connect the access control keypad, magnetic lock, and exit button to the DC12V power supply.
The specific wiring of the access control machine and the 12V power supply is: +12V connects to +12V, the COM and GND of the access control machine connect to the GND on the 12V power supply, and the NO on the access control machine connects to the PUSH on the 12V power supply.
After the magnetic lock and switch are connected to the 12V power supply according to the wiring diagram, we can connect the other end of the 12C power supply to the AC110-240V wire we use.
Choose ReaIOKbii because of its ease of installation, powerful NC Electric Strike Lock, flexible access options including keypad and RFID key fob, and built-in emergency exit system. It is a reliable all-in-one solution for both residential and commercial security needs.
Product Specifications Power Supply NC Electric Strike Lock Exit Button RFID ID Key Fob Multiple Door Opening Methods Waterproof Outdoor Installation Wiring Diagram Instruction Choose Us
Access Control Keypad
User Capacity: 1000 user cards
Dimensions: 120mm x 78mm x 22mm (L x W x H)
Operating Frequency: 125kHz
Operating Current: <100mA
Operating Voltage: DC12V
Operating Temperature: -10°C to +60°C
Reading Distance: 0-10cm
Relative Humidity: 20%-90%
Input Voltage: AC90V-AC260V 50-60HZ
Output Voltage: DC12V
Instantaneous Current: 3A / 5A
Continuous Current: 3.5A
Operating Temperature: -20 to +60
Operating Humidity: 90%
Delay: 0~30S
Remote Control Function: Yes
Dimensions: 138*67*37mm (L / W / H)
Clamping force: 500kg
Operating temperature: -30~+60 degrees Celsius
Function: Power-off locking (NO), Power-on locking (NC)
Material: Stainless steel
Function: Built-in MOV
Opening method: 90-degree swing door
Suitable for wooden doors, glass doors, metal doors, fire doors, any framed door, etc.
Dimensions: 150 x 28×34mm (L/W/H)
Material: Fire-retardant plastic/ABS
Applications: Home/Office/Hotel/Factory/Shop, etc.
Durability Test: 500,000 cycles
Contact Rating: 3A / 36VDC
Input: 12VDC
Output: NO / NC / COM
Operating Temperature: -10 to +55
Relative Humidity: 0%-90%
Dimensions: 86 * 86 * 20mm
Suitable for access control systems
Material: ABS waterproof material
Support: Read-only, not writable.
Operating Frequency: 125KHz
Chip: TK4100 / EM4100 chip
Each keychain has a metal key ring and a unique ID number.
The access control unit can be used with a weatherproof cover and is suitable for outdoor installation.
Please notethis product does not include a rain cover.
For outdoor use, a rain cover can be purchased separately, or you can use existing rain-proof items or shelters at home.
The simple wiring diagram is to connect the access control keypad, magnetic lock, and exit button to the DC12V power supply.
The specific wiring of the access control machine and the 12V power supply is: +12V connects to +12V, the COM and GND of the access control machine connect to the GND on the 12V power supply, and the NO on the access control machine connects to the PUSH on the 12V power supply.
After the magnetic lock and switch are connected to the 12V power supply according to the wiring diagram, we can connect the other end of the 12C power supply to the AC110-240V wire we use.
Choose ReaIOKbii because of its ease of installation, powerful NC Electric Strike Lock, flexible access options including keypad and RFID key fob, and built-in emergency exit system. It is a reliable all-in-one solution for both residential and commercial security needs.
Product Specifications Power Supply NC Electric Strike Lock Exit Button RFID ID Key Fob Multiple Door Opening Methods Waterproof Outdoor Installation Wiring Diagram Instruction Choose Us
