Mateksys Matek H743-WLITE Flight Controller STM32H743VIH6 ICM42688-P DPS310 OSD MicroSD Blackbox F765 wse Updated H743-WLITE

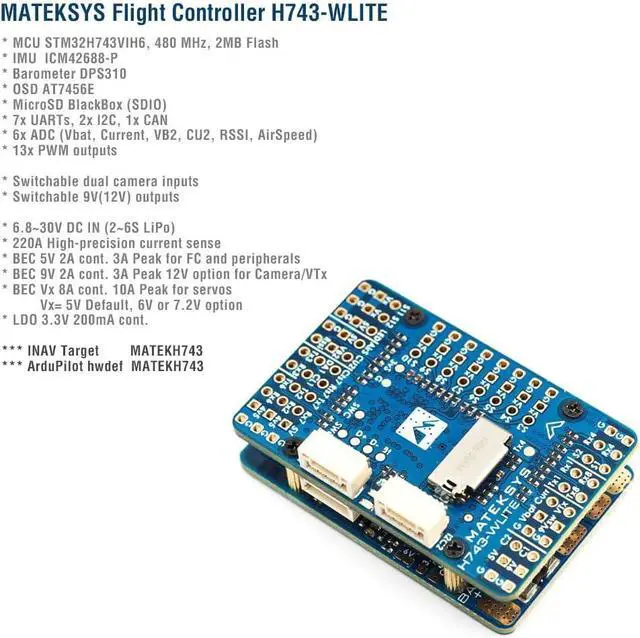

Matek Flight Controller H743-WLITE : Upgraded Flight Controller,it is designed specially for fixed wing,with 3x BEC

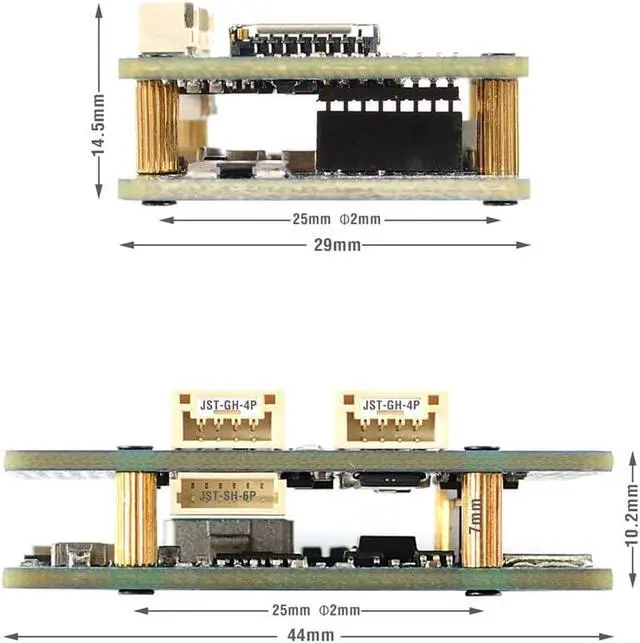

Current Senor: Current Senor: 220A, 3.3V ADC (Scale 150 in INAV, 66.7 A/V in ArduPilot),Mounting: 25 x 25mm, 2mm
7x Uarts (1,2,3,4,6,7,8) with built-in inversion,13x PWM outputs(12+LED),2x I2C,1x CAN,3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
MCU: STM32H743VIH6, 480MHz , 512KB RAM, 2MB Flash,IMU: ICM42688-P,Baro: DPS310 (I2C2),OSD: AT7456E,Blackbox: MicroSD card slot (SDIO)

Overview

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Matek Flight Controller H743-WLITE : Upgraded Flight Controller,it is designed specially for fixed wing,with 3x BEC
Current Senor: Current Senor: 220A, 3.3V ADC (Scale 150 in INAV, 66.7 A/V in ArduPilot),Mounting: 25 x 25mm, 2mm
7x Uarts (1,2,3,4,6,7,8) with built-in inversion,13x PWM outputs(12+LED),2x I2C,1x CAN,3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
MCU: STM32H743VIH6, 480MHz , 512KB RAM, 2MB Flash,IMU: ICM42688-P,Baro: DPS310 (I2C2),OSD: AT7456E,Blackbox: MicroSD card slot (SDIO)
