Depth Camera, Astra 2
- Orbbec Depth Camera, Astra 2
- The upgraded Astra 2 3D camera, released in 2023, is the successor to the widely used Astra series products. The camera is based on structured light technology and has been upgraded with Orbbecs latest custom ASIC for high quality depth processing, IMU and multi-camera sync. Astra 2 is easy to set up and operate with the Orbbec SDK, and the camera delivers extremely accurate and reliable data for indoor operation.
- Product Features: High quality depth data output from 0.6m to 8m Up to 30 fps at 1600X1200 depth resolution Up to 30 fps at 1920X1080 RGB resolution Multi-camera synchronization supported IMU supported
- Technical Specs: Product Name: Astra 2 Depth Range: 0.6m 8m Depth FOV: 58.2°H x 45.2°V Depth Resolution/FPS: Up to 1600 x 1200 @30fps RGB FOV: 74.7°H x 46.2°V RGB Resolution/FPS: Up to 1920 x 1080 @30fps IMU: Supported Dimensions (W*H*D): 144.5mm x 45.3mm x 38.6mm Temperature: 0 35°C10%-95%RH (non-condensing) Power Input: USB 3.0 Type-C Po
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

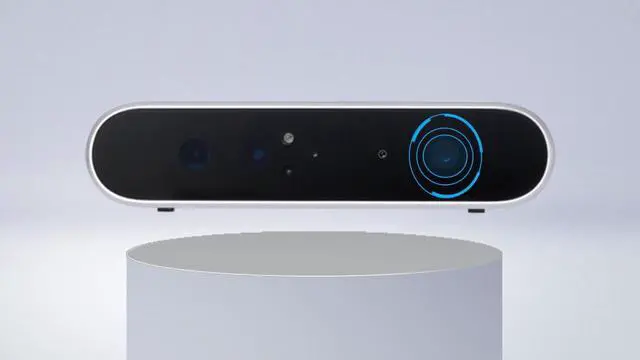

Orbbec Depth Camera, Astra 2
The upgraded Astra 2 3D camera, released in 2023, is the successor to the widely used Astra series products. The camera is based on structured light technology and has been upgraded with Orbbecs latest custom ASIC for high quality depth processing, IMU and multi-camera sync. Astra 2 is easy to set up and operate with the Orbbec SDK, and the camera delivers extremely accurate and reliable data for indoor operation.
Product Features: High quality depth data output from 0.6m to 8m Up to 30 fps at 1600X1200 depth resolution Up to 30 fps at 1920X1080 RGB resolution Multi-camera synchronization supported IMU supported
Technical Specs: Product Name: Astra 2 Depth Range: 0.6m 8m Depth FOV: 58.2°H x 45.2°V Depth Resolution/FPS: Up to 1600 x 1200 @30fps RGB FOV: 74.7°H x 46.2°V RGB Resolution/FPS: Up to 1920 x 1080 @30fps IMU: Supported Dimensions (W*H*D): 144.5mm x 45.3mm x 38.6mm Temperature: 0 35°C10%-95%RH (non-condensing) Power Input: USB 3.0 Type-C Power Consumption: Average < 3 W Data Output: Point CloudDepth Map, IR & RGB SDK: Orbbec SDK Weight: 241g
The upgraded Astra 2 3D camera, released in 2023, is the successor to the widely used Astra series products. The camera is based on structured light technology and has been upgraded with Orbbecs latest custom ASIC for high quality depth processing, IMU and multi-camera sync. Astra 2 is easy to set up and operate with the Orbbec SDK, and the camera delivers extremely accurate and reliable data for indoor operation.
Product Features: High quality depth data output from 0.6m to 8m Up to 30 fps at 1600X1200 depth resolution Up to 30 fps at 1920X1080 RGB resolution Multi-camera synchronization supported IMU supported
Technical Specs: Product Name: Astra 2 Depth Range: 0.6m 8m Depth FOV: 58.2°H x 45.2°V Depth Resolution/FPS: Up to 1600 x 1200 @30fps RGB FOV: 74.7°H x 46.2°V RGB Resolution/FPS: Up to 1920 x 1080 @30fps IMU: Supported Dimensions (W*H*D): 144.5mm x 45.3mm x 38.6mm Temperature: 0 35°C10%-95%RH (non-condensing) Power Input: USB 3.0 Type-C Power Consumption: Average < 3 W Data Output: Point CloudDepth Map, IR & RGB SDK: Orbbec SDK Weight: 241g
