Sound Light Alarm, YSG25K Industrial Security Horns Sirens Voice Strobe Flash 120dB Waterproof, Emergency Warning Light Outdoor Alarm,Triggered Switch high & Low Level for Garage,Other Public Places.

Industrial Sound Light AlarmYSG25K Industrial Sound and Light Alarm with 25W high power speaker, the highest volume up to 120 db; Switching control to play a specific alarm voice, in the process of broadcasting the voice of the police light flashes, up to support 7-way one-to-one control playback; Support replacement voice, open the top cover of the police light, USB connection to the computer, you can freely replace the alarm voice broadcast; Applicable to a variety of occasions.

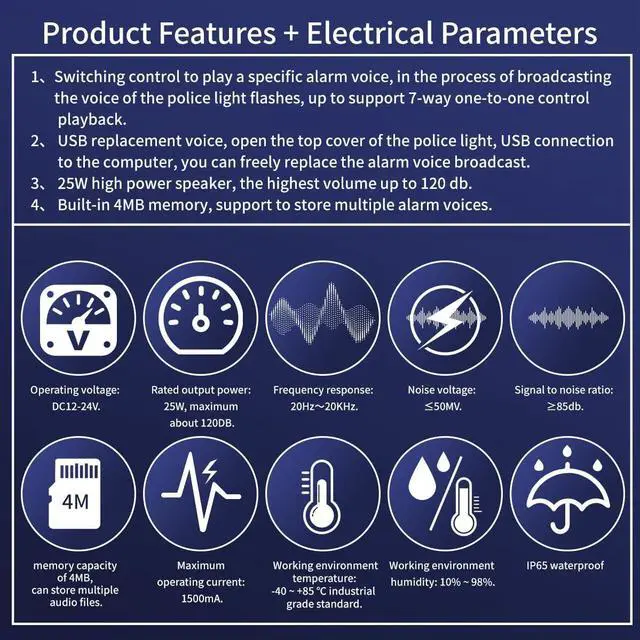

Electrical ParametersSound Light Alarm has 4MB memory, support to store multiple alarm voices; Operating voltage: DC12-24V; Rated output power: 25W, maximum about 120DB; Frequency response: 20Hz20KHz; Noise voltage: 50MV; Signal to noise ratio: 85db; Memory capacity of 4MB, can store multiple audio files; Maximum operating current: 1500mA; Working environment temperature: -40 ~ +85 industrial grade standard; Working environment humidity: 10% ~ 98%.

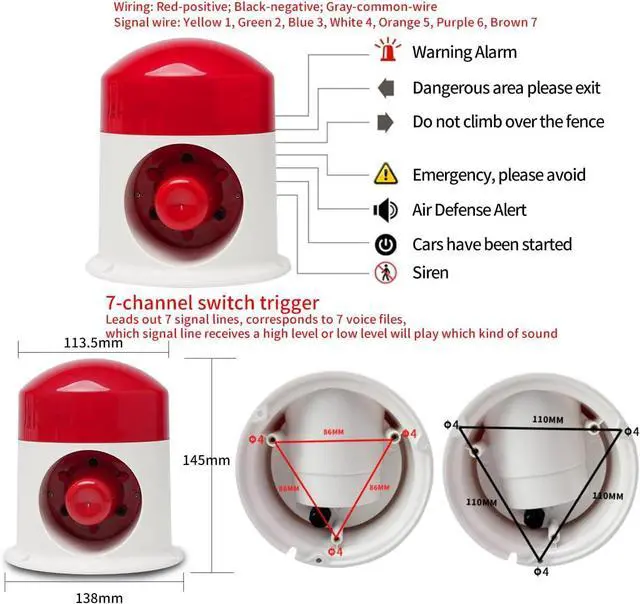

Product FeaturesSafety Voice Strobe Alarm Wiring Instructions---1. RedPower supply positive (DC12-24V); 2. Black: Power Negative; 3. Yellow: Signal 1, trigger playback of audio file 00001.mp3; 4. Green: Signal 2, trigger playback of audio file 00002.mp3; 5. Blue: Signal 3, trigger playback of audio file 00003.mp3; 6. White: Signal 4, trigger playback of audio file 00004.mp3; 7. Orange : Signal 5, trigger playback of audio file 00005.mp3; 8. Purple: Signal 6, trigger playback of audio file 00006.mp3; 9.Brown: Signal 7, trigger playback of audio file 00007.mp3.

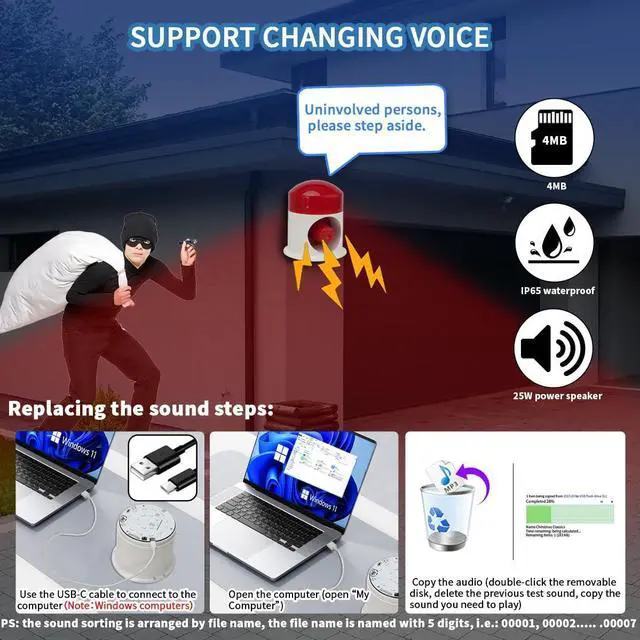

Replace Voice Ways 1: Using type-c cable connects to the Y5610 Voice Prompter on one end and plugs into the computer on the other; 2: Open My Computer; 3: Double-click on the removable disc, delete the previous test audio and copy in the audio you need to play. Note: The sound sorting is by filename, and the filename naming is named with 5 digits, i.e.: 00001, 00002..... .00010.
Industrial Sound Alarm FunctionThe playback modes are selected by the red 3-position dip switches, and there are 8 modes in total & the diagram.DIP switch 1, 2, 3 Dial to the bottom means set 0, dial to the top means set 1, three gears a total of 8 combinations, corresponding to the playback mode & Product Illustration and Interface Description & Switching Control Wiring Diagram & Other Application Notes (For details, please read the manual)

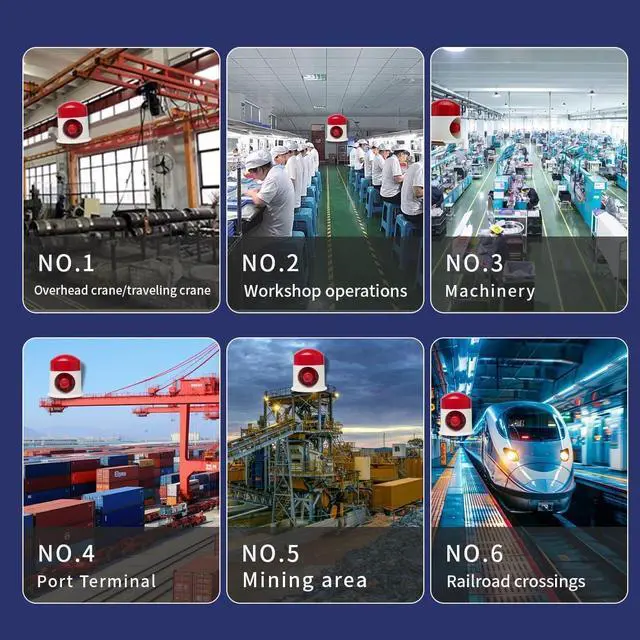

Voice Light AlarmBoth wall mount and base installation are optional. Can be widely used in warehouses, crane, building sites, tunnel construction, metallurgy, ports, construction site, school security etc.We have factories and hardware engineers specializing in voice sound circuit boards and modules.Various styles, support customization, If you have any questions, please email us, looking forward to cooperating with you!
