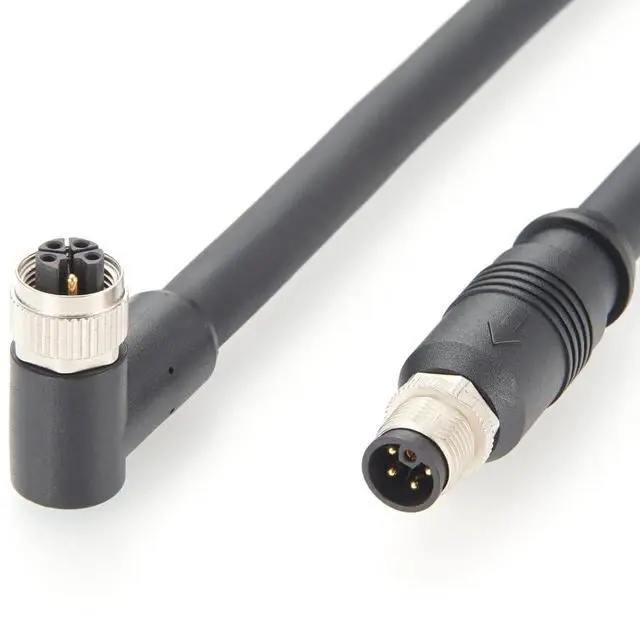

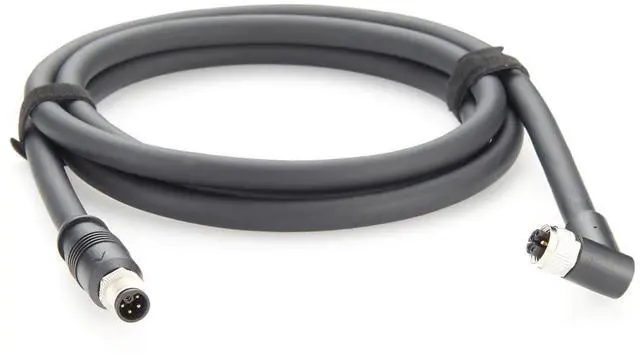

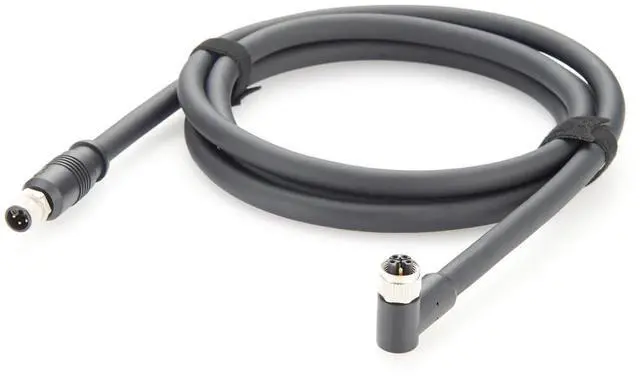

M12 L-Coded 5Pin 4+PE Connector Cable Profinet Power Supply High Flex Drag Chain IP67 Waterproof M12 Male Straight to Female Right Angled Cable Extension Cable for Sensor Actuator PLC Camera
- Product Parameter Connector Type: M12 L-Coded 5Pin 4+FE; Cable Length: 6FT/10FT Optional; OD: 11MM; Wire Gauge: 1.5mm²; Material: PVC; Protection class (When coupled): IP67.
- High Current Carrying Each pin can carry up to 16A current, which is four times that of traditional M12 cables, providing stronger power support.
- Threaded Connection thread locking mechanism, anti vibration locking design, 12mm thread joint can be easily connected to sensor devices and ctuator devices and field bus components.
- Highly Flexible This M12 L-code cable assembly is suitable for drag chain environment, can withstand more than 10 million drag chain operations, ensuring reliability in long-term use.
- Easy To Connect M12 cable female to male provide quick and easy connection between field devices and terminal connections, flexible and convenient plug-and-play;No tools required for installation and removal.
- Application M12 power cable is for input/output boxes, network devices
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification
Connector A: M12 L-Coded 5Pin 4+FE,Straight,Male
Connector A: M12 L-Coded 5Pin 4+FE,Straight,Female
Current rating: Up to 16A
Length: 6FT/10FT Optional
Wire gauge: 1.5mm²
Operating temperature: -40°C to +105°C
OD: 11mm
Protection class (When coupled): IP67

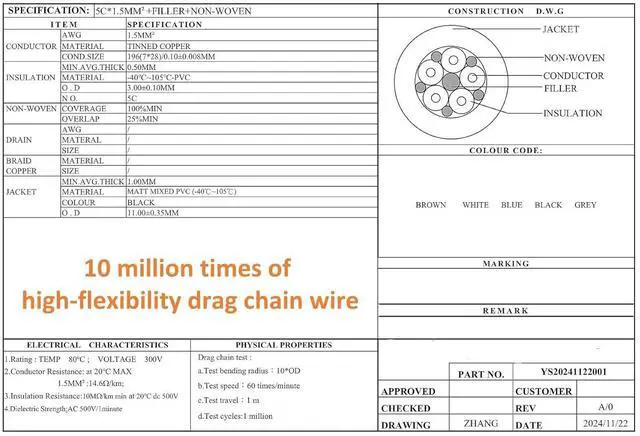

10 Million Cycle of High Flex Drag Chain Cable
Connector A: M12 L-Coded 5Pin 4+FE,Straight,Male
Connector A: M12 L-Coded 5Pin 4+FE,Straight,Female
Current rating: Up to 16A
Length: 6FT/10FT Optional
Wire gauge: 1.5mm²
Operating temperature: -40°C to +105°C
OD: 11mm
Protection class (When coupled): IP67
10 Million Cycle of High Flex Drag Chain Cable
