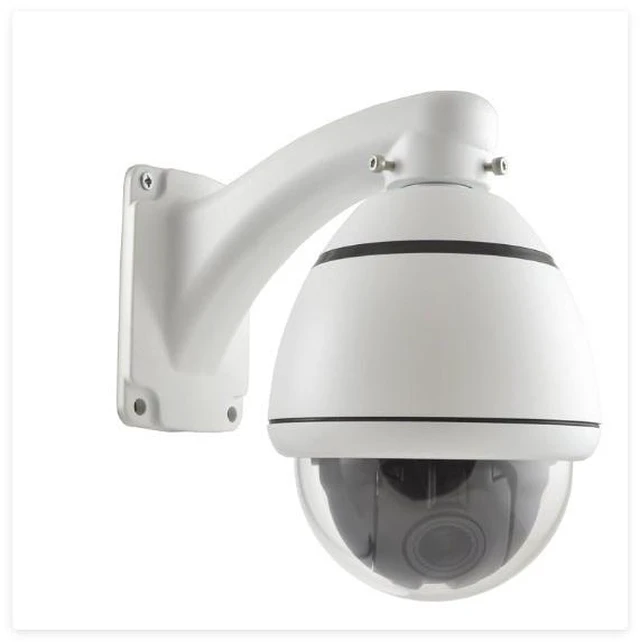

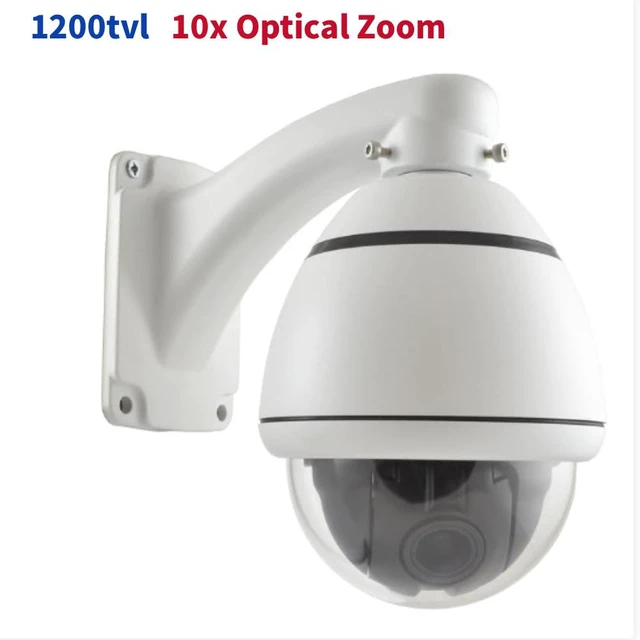

1200tvl 10x Optical Zoom Speed Dome Camera NTSC Indoor&outdor

1200tvl 10x Optical Zoom Speed Dome Camera indoor&outdor

Feature:

1. Aluminium alloy Shell, Size: 3.5 inch.

2. Built-in Full Screen Chinese/English OSD Menu, Camera Name and Preset Name can be setted, coordinate display, support Site Address modification

3. Controlled by 32-bit Processor, Driven by Precision Stepper Motor, Stable Movement, Accurate Positioning.

4. Power-off memory function, automatic recovery after power resumes

5. Pan Range: 360º Tilt Range: 90º (180º Auto overturn).

6. Pan Speed: 0-200° /Sec, Tilt Speed: 0-120° /Sec.

7. Built-in RS-485, compatible with multiple control protocols,

Auto match Baud rate and Protocol(Pelco D/P)

8. Auto focusing and auto BLC

9. DC12V2A± 10%, 50/60HZ

10.2 years Warranty

Specification:

Model No .

Image sensor:1/2.8" CMOS

Signal model:PAL/NTSC

Horizontal resolution:1200TVL

S/N radio:>65dB(Enhanced)

White balance: Auto

Electronic shutter: 1/50~1/12000 seconds

Focus length: 3.9~39.0mm

Optical focus: 10X

Presets: 256

Patrol track: 4groups, each can record 200 actions

Cruise track: Total 30 presets can join cruise, can setting the presets' residence time

Other scan : Support Horizontal scan, deuce area scan, scan random

Rotation range : Horizontal 360°unlimted rotation, Vertical 90°,auto reversal

Rotation speed: Horizontal & Vertical Min 0.01°,Max 200°/S

Communications: RS-485, PELCO D, PELCO P

OSD: Yes

Power supply: DC12V/2A

Work environment: -10°C ~ +50°C RH90% Max
