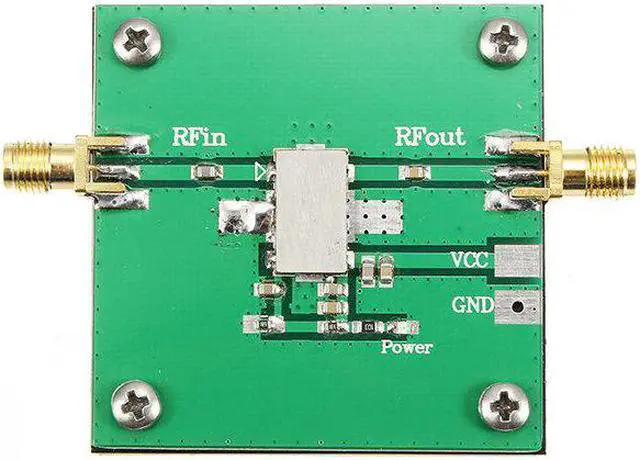

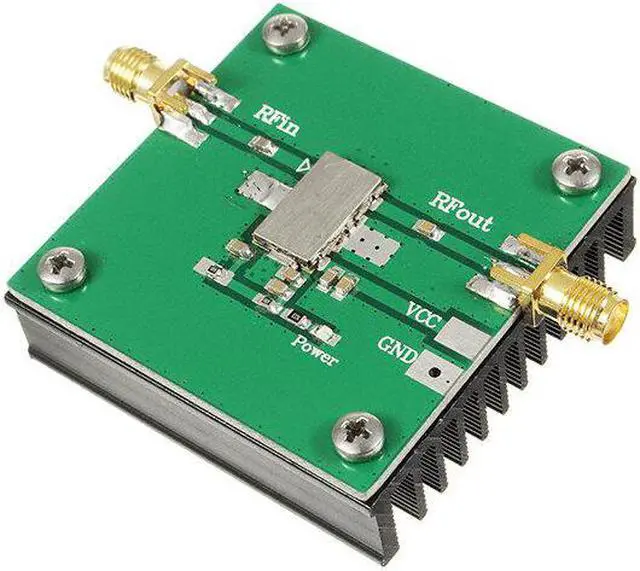

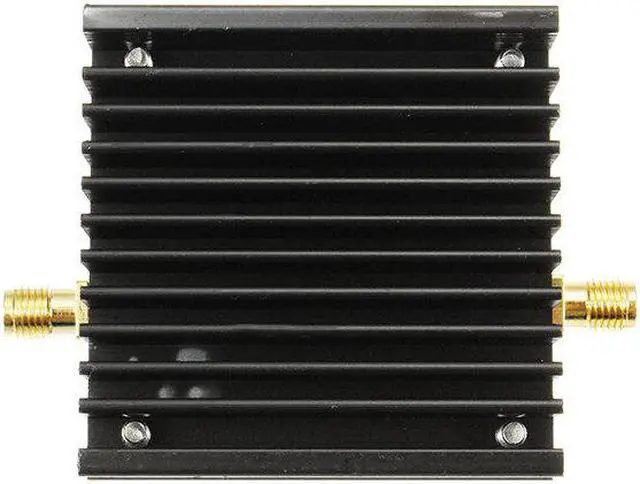

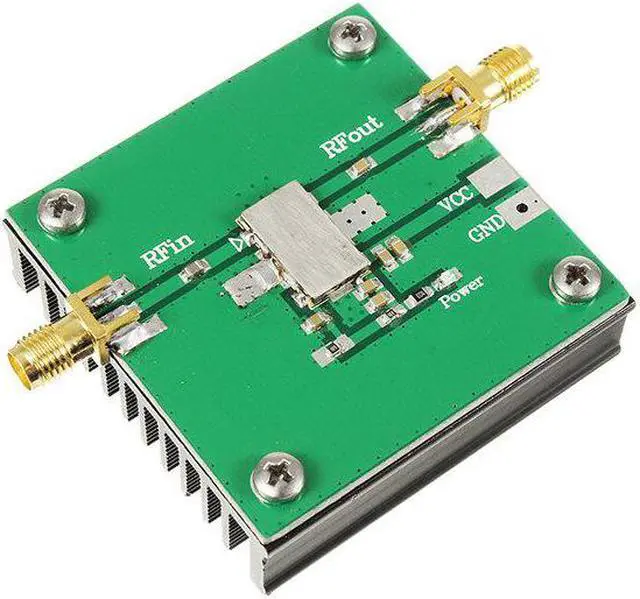

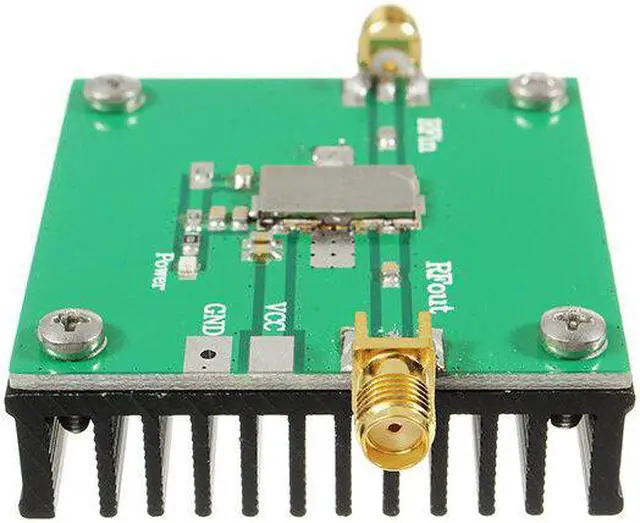

4.0W 30dB 915MHz RF Power Amplifier
- Good Quality
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
Operating frequency: 890-960MHz
Power gain: 30dB
Maximum output power: + 33dBm (2W @ 5V, 1.2A)
+ 36dBm (4W @ 6V, 1.8A)
Harmonic suppression: 48dBc
Working current: 1.2A (5V, recommended operating voltage)
Supply voltage: 5VDC
System impedance: 50 ohms
RF interface: SMA female (female screw hole)
Dimensions: 50 * 50mm (without connector)
Weight: 55g
Package included:
1 x 4.0W 30dB 915MHz RF Power Amplifier
