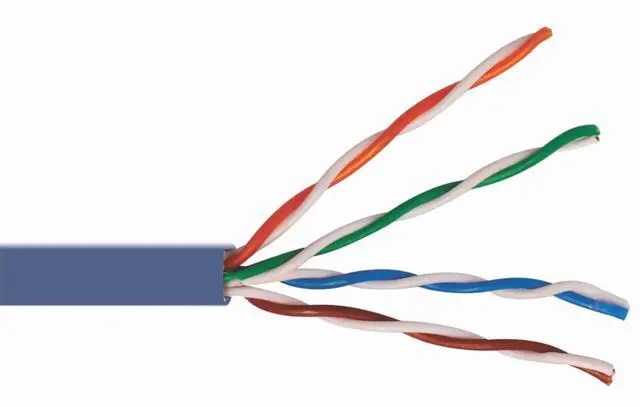

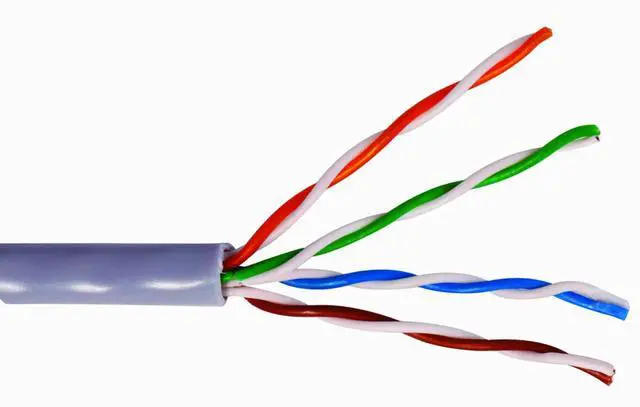

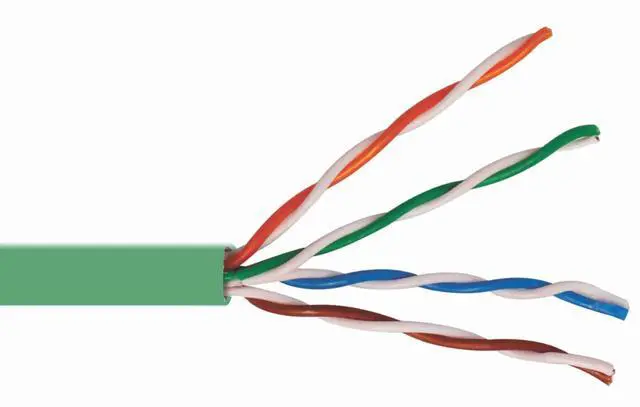

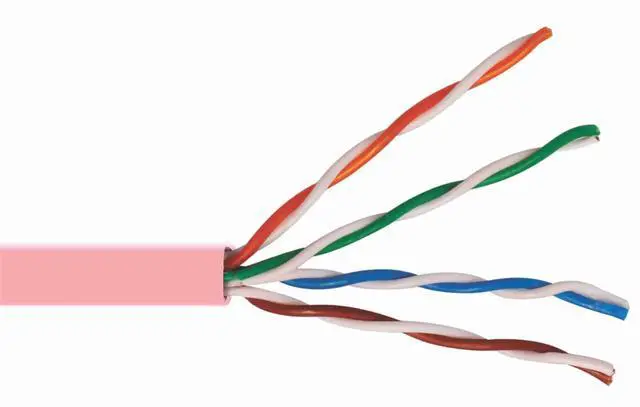

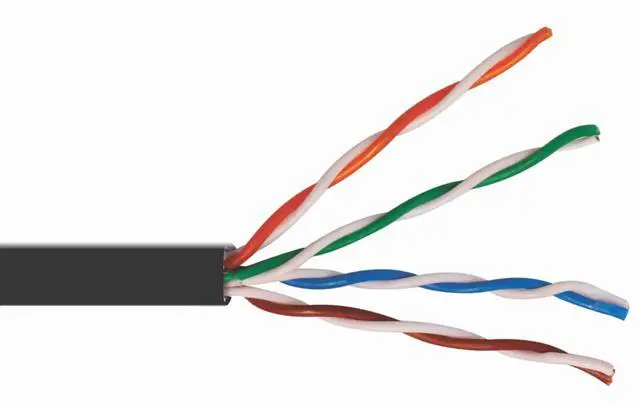

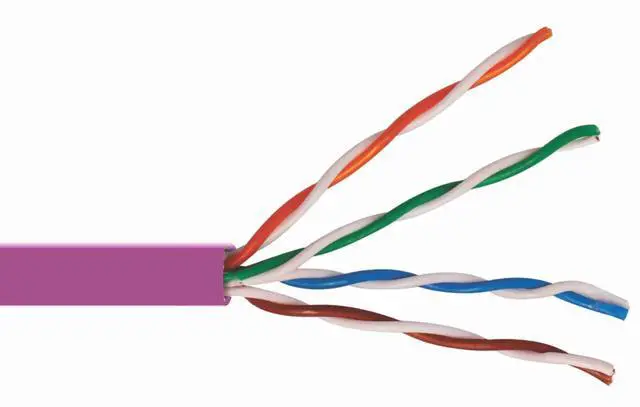

Bulk Wire - CAT5e PVC

CATEGORY 5E 350MHZ 4 PAIR UTP ENHANCED DATA CABLE - CMR

This professional grade data cable offers superior signal transmission, long use life and ease of installation and termination. Conductors are made from superior solid annealed bare copper with overall tough and durable PVC jacket. This wire is ETL listed and meets or exceeds codes for installation in new construction and remodeling, as well as verified to meet or exceed TIA (Telecommunications Industry Association) specifications and other industry standards.

BEWARE - ALL CAT5 CABLE IS NOT THE SAME. Cheap CAT5e wire is made with conductors from CCA (copper clad aluminum) or CCS (copper clad steel) which can limit bandwidth and performance, especially on long runs. This is very critical when connecting today's high definition video, cameras as well as POE (power over ethernet) equipment.

FEATURES:

• ETL Listed Type CMR


• Verfied to TIA - 568-C.2, and ISO/IEC 11801


• ROHS Compliant


• ATM 155 Mbps


• Ethernet 10BASE-T, 100BASE-TX, 100BASE-VG, 100BASE-T4


• 100-Mbps 1000BASE-T Gigabit Ethernet (IEEE 803.3)


• 16 Mbps Token Ring (ieee 803.5)

SPECIFICATIONS:

Number of conductors Pairs: 4 UTP (unshielded twisted pair)

Size: 24 awg.

Stranding: Solid

Conductor Material: Solid Annealed Bare Copper

Rip Cord: Nylon

Insulation Material: Polyethylene

Insulation Overall Diameter: 0.035 inches + or - 0.00002 inches

Insulation Average Thickness: 0.0081 inches

Jacket Material: Flame Retardant PVC

Outer Jacket Average Wall Thickness: 0.017 inches + or - 0.001 inches

Outer Jacket O.D.: 0.200 inches + or - 0.008 inches

Nominal Weight: 21 lbs

Voltage Rating: 300V
