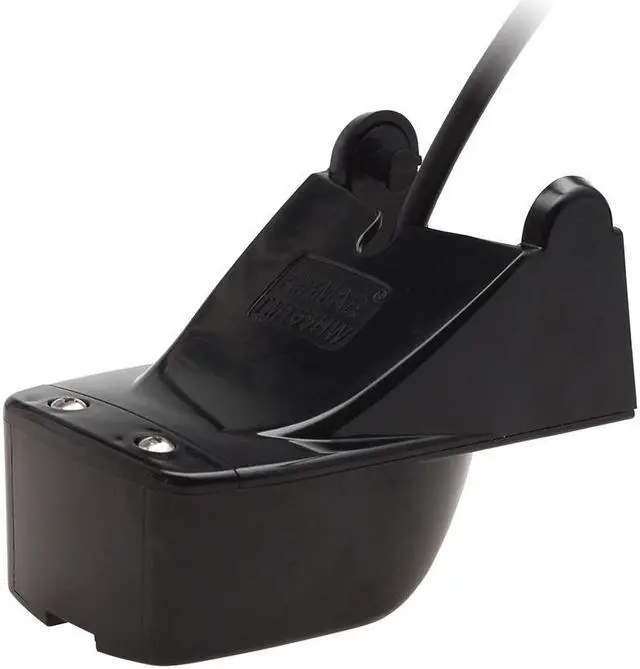

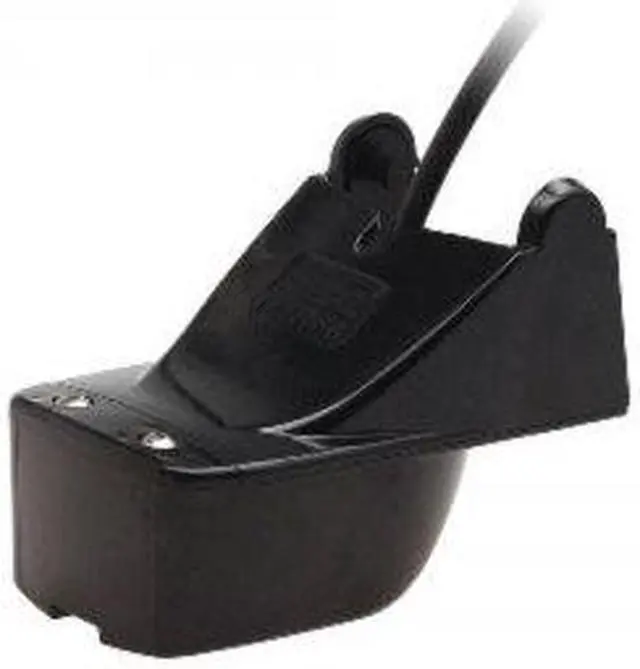

AIRMAR TM165HW CHIRP HIGH WIDE 600W TRANSOM MOUNT

AIRMAR TM165HW CHIRP HIGH WIDE 600W TRANSOM MOUNTTM165HW Chirp High Wide 600W Transom Mount Transducer - Requires Adapter CableReplacing a non-Chirp or single frequency transducer with the AIRMAR TM165HW (High Wide) 600W Chirp-ready transom mount transducer provides anglers with an inexpensive and easy performance upgrade to their current sonar systems. The TM165HW is legendary for producing the finest detail and largest coverage area of any transom mounted model in its class. The TM165HW is perfect for fishing boats up to 25 feet (8 meters) and recommended for planing hulls made from fiberglass, metal or wood - both outboard and IO.

TM165HW delivers large, crisp return images on the display with a noise-free, clear picture of the action below. Better coverage from top to bottom with stronger, well-defined fish targets. Super Wide 30 Average Beamwidth Achieves 3x the Coverage Under the Boat as Compared to Standard High Frequency Chirp-ready Transducers (eg, the popular B75H)The TM165HW is compatible with the following sonar brands and models:
Lowrance: All models compatible except
Hook seriesHumminbird: SM300; Helix and
Solix can be set manuallyGarmin: GPSMAP 7600, 8600, 7X2/9X2/10x2/12x2, GSD26Raymarine: compatible
with all modelsSimrad: compatible
with all modelsFeatures: Depth and fast-response water-temperature sensorRequires Mix and Match cable600 W with a maximum depth of 152 m (500')High
Frequency: 150 kHz to 250 kHz for superior shallow water performance, bottom detail and fish target separationHigh-wide beamwidth provides more coverage under the boat for detecting fish in the upper water columnSuper wide 30 average beamwidth for superior coverage under the boat and maximum detection areaHigh-performance, low-profile design provides excellent resolution at speed when installed properlyExclusive Xducer ID technologyThe TM165HW is an AIRMAR Mix and Match transducer. 600W Mix and Match transducers are made as a common base transducer with a short (2m) cable attached, plus an interchangeable longer (8m) brand-specific adapter cable.
Temperature: YesSpeed
Included:
NoPins: 12Mounting
Style:
TransomImagining:
StandardChirp: High WideCable
Length (Feet): 2m
