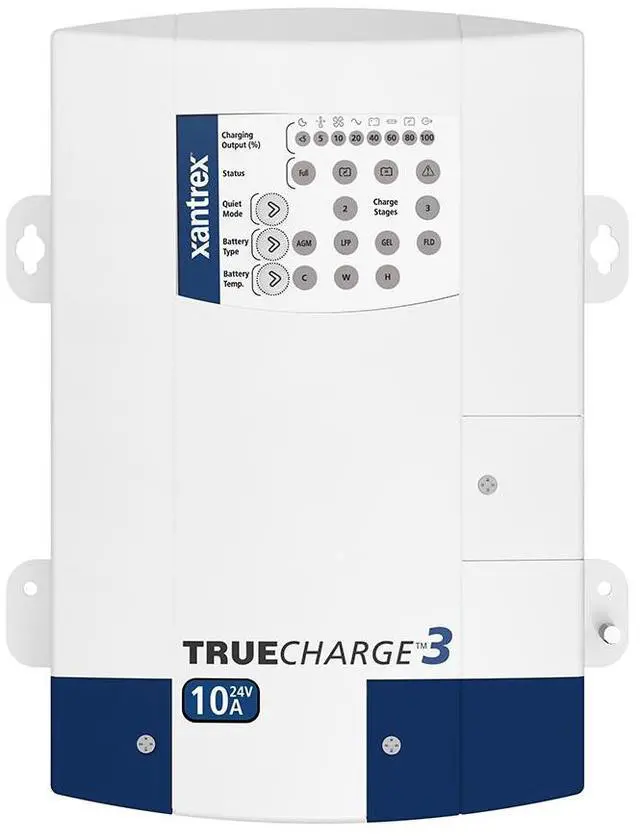

Xantrex TRUEcharge3 10A 3 Bank Battery Charger - 24V

TRU
Echarge™ 3 10A 3 Bank Battery Charger - 24VTRU
Echarge3 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, they feature low electrical interference and efficient power factor-corrected multistage charging. The TRU
Echarge3 Chargers can be mounted in multiple positions thanks to their inherent drip-proof design characteristics. Unlike its predecessors, TRU
Echarge3 is lithium-ion battery compatible. Designed for recreational and commercial applications worldwide, TRU
Echarge3 accepts 90– 265 Vac, and 47– 63 Hz, which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRU
Echarge3 24 V models can be enhanced with an optional remote panel. Each model has built-in protection against surges and spikes on the AC power line.
Features: Microprocessor-controlled, multistage charging algorithmsSettings for two and three-stage chargingBattery-equalization featureSettings for flooded, gel, AGM, or lithium-ion batteriesEquipped with parallel stacking (remote panel required) Ability to charge batteries drained to extremely low voltageAdded quiet modeProtection
Features: Reverse-battery polarity protectionDrip-proof designDC over-voltage protectionOver-temperature protectionCircuit breaker protectionThree-Stage ChargingMultistage charging ensures batteries receive optimum charging, but with minimal wear and tear, regulating the voltage and current delivered to the batteries in three automatic stages:
Bulk: Replaces 70– 80% of the battery’ s state-of-charge at the fastest possible rateAbsorption: Replenishes the remaining 20– 30% of charge, bringing the battery to a full charge at a slow, safe
rateFloat: Voltage is reduced and held constant to prevent damage and maintain batteries at a full charge for the remaining 20– 30% of charge, bringing the battery to a full charge at a slow, safe ratePower Factor Corrected (PFC) ChargingLess shore power is required for charging batteries, freeing up more usable AC power for running electrical devices and appliances and reducing the likelihood of tripping shore power breakers. Electrical

Specifications

(@ 25 degrees
C unless otherwise noted): Output
Current (nominal): 10 A  Output Voltage (nominal, depending
on settings): Charge 28.4 – 31.0 Vdc; Float 26.8 – 27.6 Vdc; 32 VdcDC
Output Connections: ThreeAC
Input Voltage: 90– 265 Vac; 47– 63 Hz 120 Vac, 230 Vac, 240 Vac nominalTemperature
Compensation: Three settings
Charger Efficiency: > 80%Battery
Type: Gel, Flooded, AGM, LiFePO4  Minimum Recommended
Battery Bank Size: 20 AhGeneral

Specifications

: Operating
Temperature Range: 0– 60°C (32– 140°F)  Storage Temperature -40– 80°C (-40– 176°F)Battery
Connection: Three positive terminals and one negative terminalDimensions (H x W x
L): 70 x 170 x 250 mm ( 2.8 x 6.7 x 9.8 ” )Weight 2.2 kg ( 4.8 lb)Regulatory Approvals  Meets CSA 60335-2-29, UL1564, IEC 60335-2-29, IP32 per EN. IEC 60529, FCC Part 158, Canada ICES-003 Class B emissions limits, ABYC A-31, and DOE/CEC energy efficiency compliant. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
