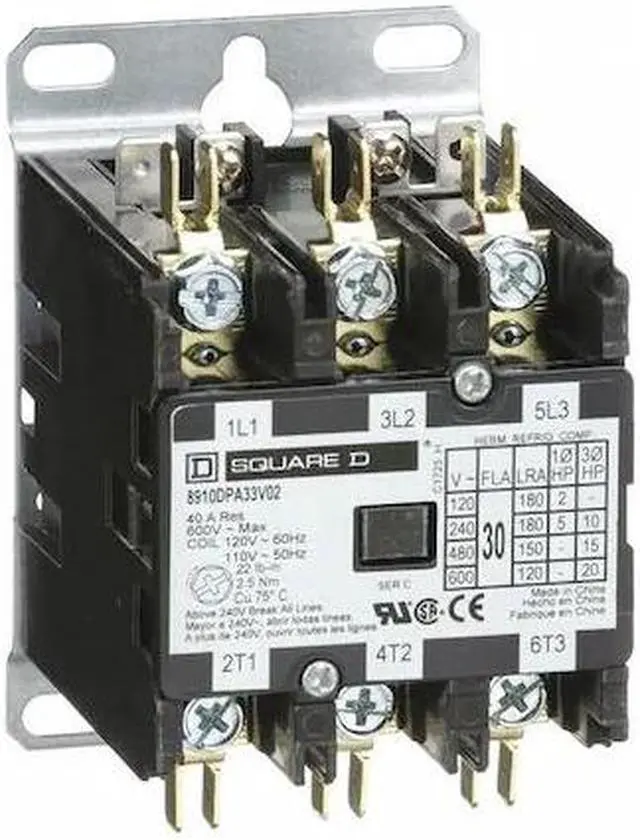

SQUARE D 8910DPA33V02 Definite Purpose Magnetic Contactor, 120V AC, 3 P,

The SQUARE D - 8910DPA33V02 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.

• Action: Non-Reversing operation mode is designed for a consistent current flow direction.
• Coil Voltage: Rated for operation within the specified voltage range of 120V AC.
• Depth: Measures 3.12 inches from front to back indicating how far it extends into the mounting surface or enclosure.
• Frequency: Rated for compatibility with 50/60 Hz frequency power systems.
• Full Load Amps-Inductive & Resistive: Specified to accommodate maximum currents of up to 30 A (inductive loads) and up to 40 A (resistive loads).
• Horsepower Ratings: Designed for control over various horsepower levels at different single-phase and three-phase voltages, including motors ranging from lower capacities like those requiring HP @ Single Phase -120V AC, through higher-capacity requirements such as those needing HP @ Three Phase -600V AC at up to 50 hp
• Number of Poles: Facilitates the potential simultaneous switching of three circuits, offering versatility in diverse industrial applications
• Safety Standards Compliance : Complies with CSA, RoHS, UL Listed standards. This compliance does not guarantee safety but indicates that it meets certain industry standards.
