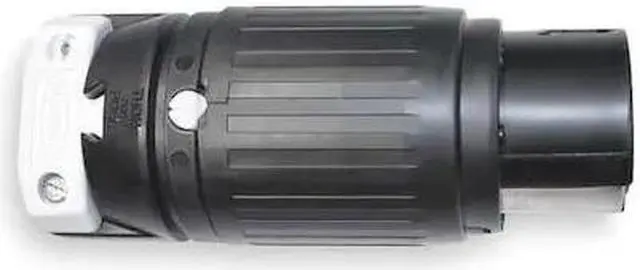

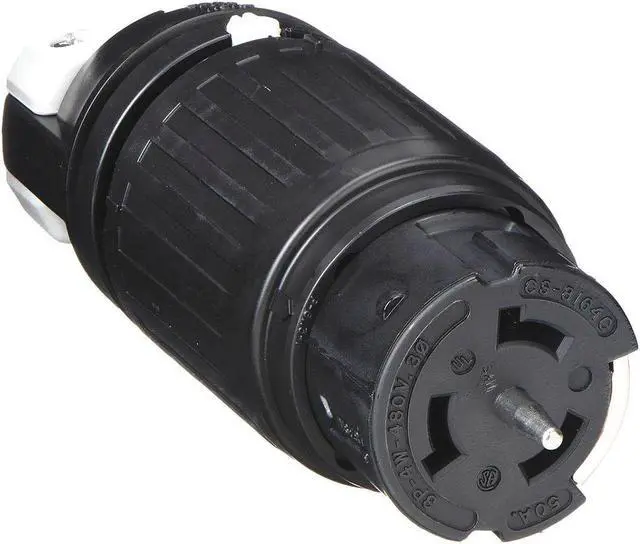

HUBBELL WIRING DEVICE-KELLEMS CS8164C Locking Connector, Non-NEMA, 50 A, 480V

The HUBBELL 50A Twist-Lock Connector is a locking connector suitable for use in industrial and commercial electrical applications. It features a nylon housing and thermoplastic polyester interior.

Key Features of the HUBBELL 50A Twist-Lock Connector:

• Amperage/Voltage Rating: Rated for 50 A at 480V AC with three-phase power compatibility.


• Cable Range: Accepts cable diameters from 0.83 in to 1.25 in; suitable for #10 AWG to #6 AWG stranded copper wire only.


• Body Material: Constructed from black nylon with an insulated body.


• Contact Material: Brass contacts used as contact material.


• Cord Clamp: Two-piece external cord clamp holds conductors and jacket.


• Dielectric Strength & Performance: Withstands minimum dielectric voltage of 2,000V; certified current interrupting at full rated current; max continuous operating temperature of 75°C (minimum -40°C without impact).


• Flame Resistance: Meets UL 94 HB flammability rating requirements for plugs/connectors; receptacles/inlets rated UL94 V-0.


• Standards Compliance: Certified to CSA C22.2 No.42 and listed to UL498 standards.
