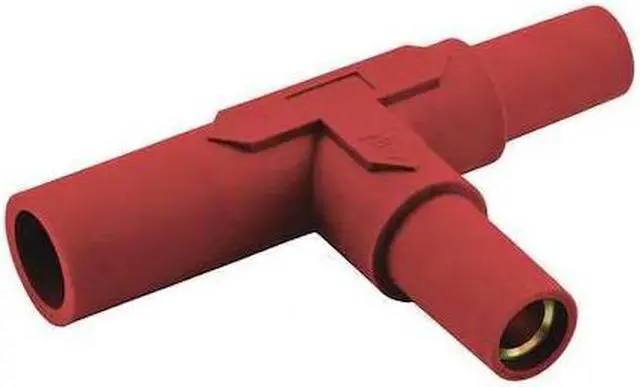

HUBBELL WIRING DEVICE-KELLEMS HBL15TR Tapping Tee,Red,150AC/DC,Taper Nose

The HUBBELL Tapping Tee is a single pole device intended for use in temporary electrical power distribution. This Series 15 tapping tee features a taper nose and plug-in connectivity, enabling parallel connections in compatible power setups. It is constructed with an insulated thermoplastic elastomer housing and brass contacts, rated for use in indoor dry locations.

Key Features of the HUBBELL Tapping Tee:

• Amperage/Voltage Rating: Rated for 150 A at 600V AC or 250V DC


• Configuration: Female-Female-Male (Tee style) with one conductor and one pole


• Material: Brass contact material; thermoplastic elastomer insulated body


• Mounting: Cord mounted design; complies with UL1691 standards


• NEMA Enclosure Ratings: Complies with NEMA Types 12, 3R, and 4X


• Temperature Range: Rated for operation within a temperature range of -40°C to +75°C (continuous, without impact)


• Standards Compliance: Listed to cUL, UL; meets NEC, ANSI/NFPA 70 standards
