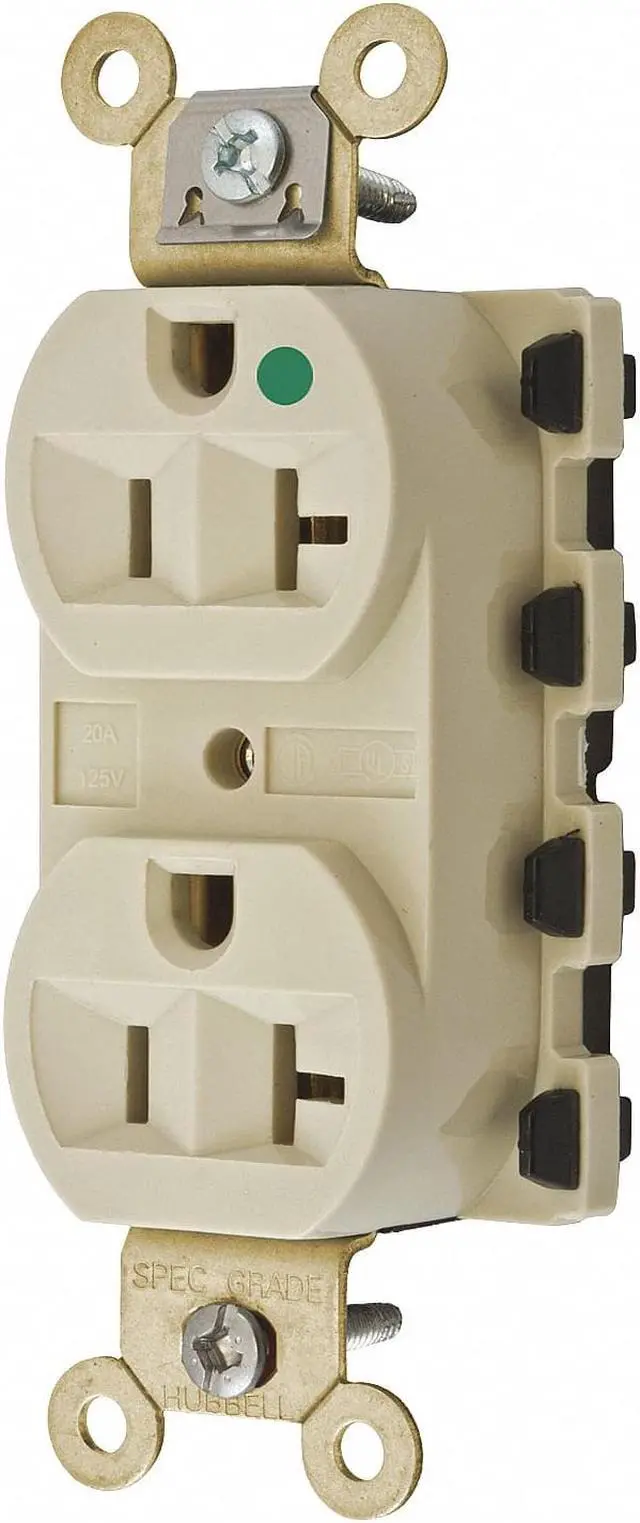

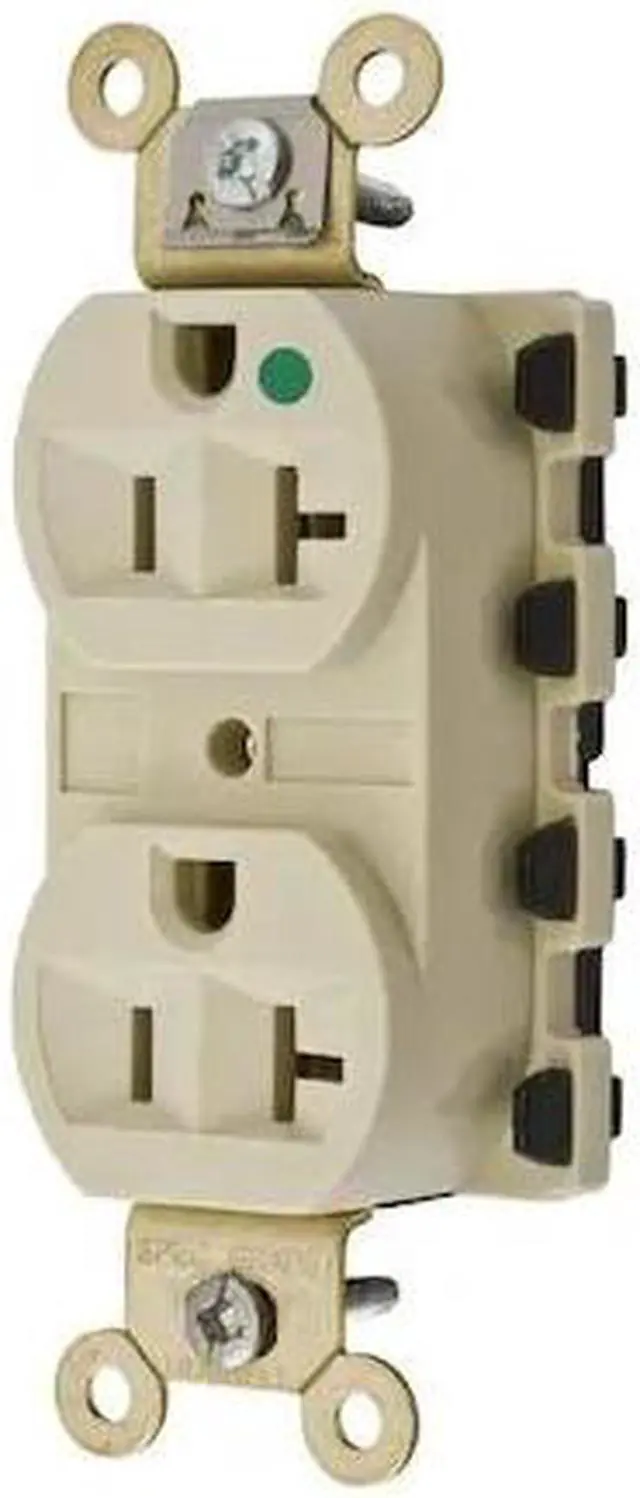

SNAPCONNECT SNAP8300IA 20A Duplex Modular Receptacle 125VAC 5-20R IV

The HUBBELL 20A Duplex Modular Receptacle 125VAC 5-20R IV is a hospital grade, duplex straight blade receptacle suitable for modular wiring installations. Featuring SNAPConnect® technology, this device enables installation of the connector during rough-in, with subsequent placement after wall finishing. The receptacle facilitates electrical connections and enables change-outs by maintenance personnel.

Key Features of the HUBBELL 20A Duplex Modular Receptacle:

• Amperage/Voltage: Rated for 20 A at 125 VAC


• NEMA Configuration: 5-20R, duplex outlet type


• Wiring Method: Modular back-wired connection with SNAPConnect® system


• Application Environment: Hospital Grade Fed. Spec., suitable for heavy use environments


• Grounding: Grounded with stainless steel automatic self-grounding clip and brass ground contacts


• Material Construction: Nylon face and housing; PBT base; brass power contacts; zinc plated steel mounting screws; brass mounting strap


• Dielectric Strength & Flammability: Withstands minimum 2,000V dielectric voltage; UL94 V-2 flammability rating


• Operating Temperature Range: -40°C to +75°C (without impact)


• Standards Compliance: CSA Certified C22.2 No.42 File 285, Federal Specification W-C-596, NEMA WD-6, UL498 File E2186


• Circuit Interrupting Capability: Certified for current interrupting at full rated current (20 A)
