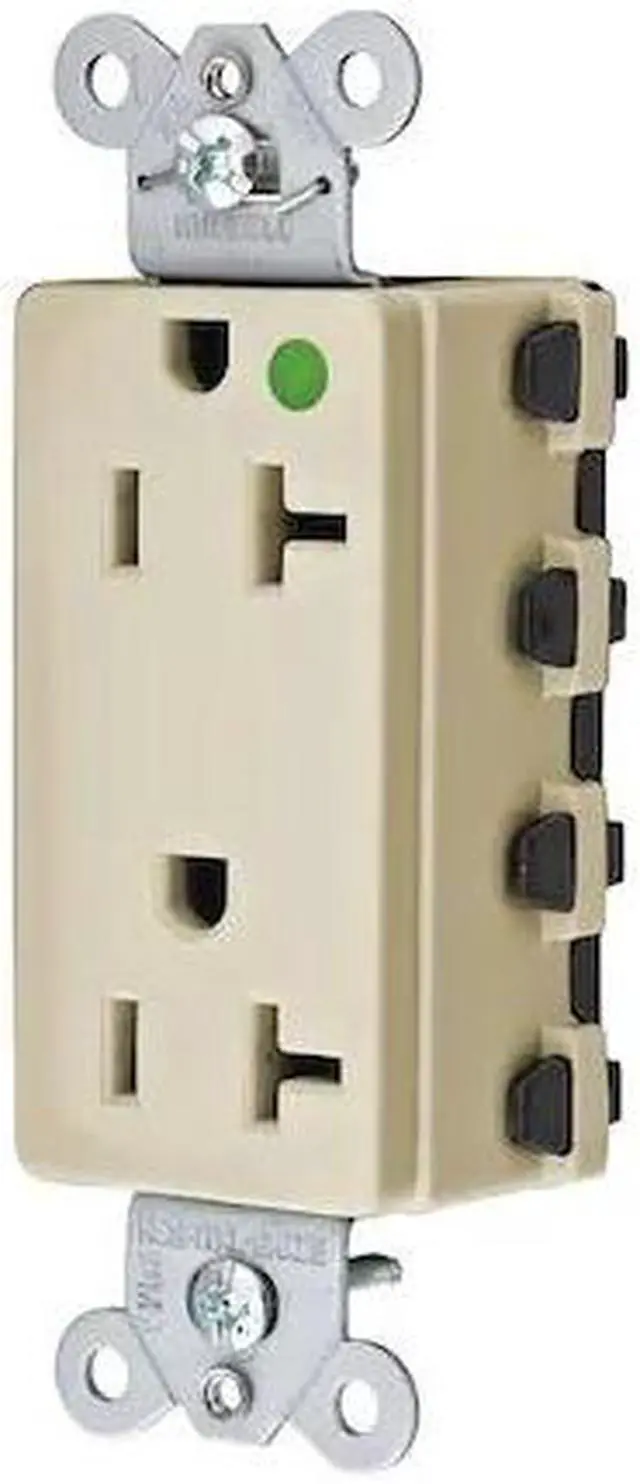

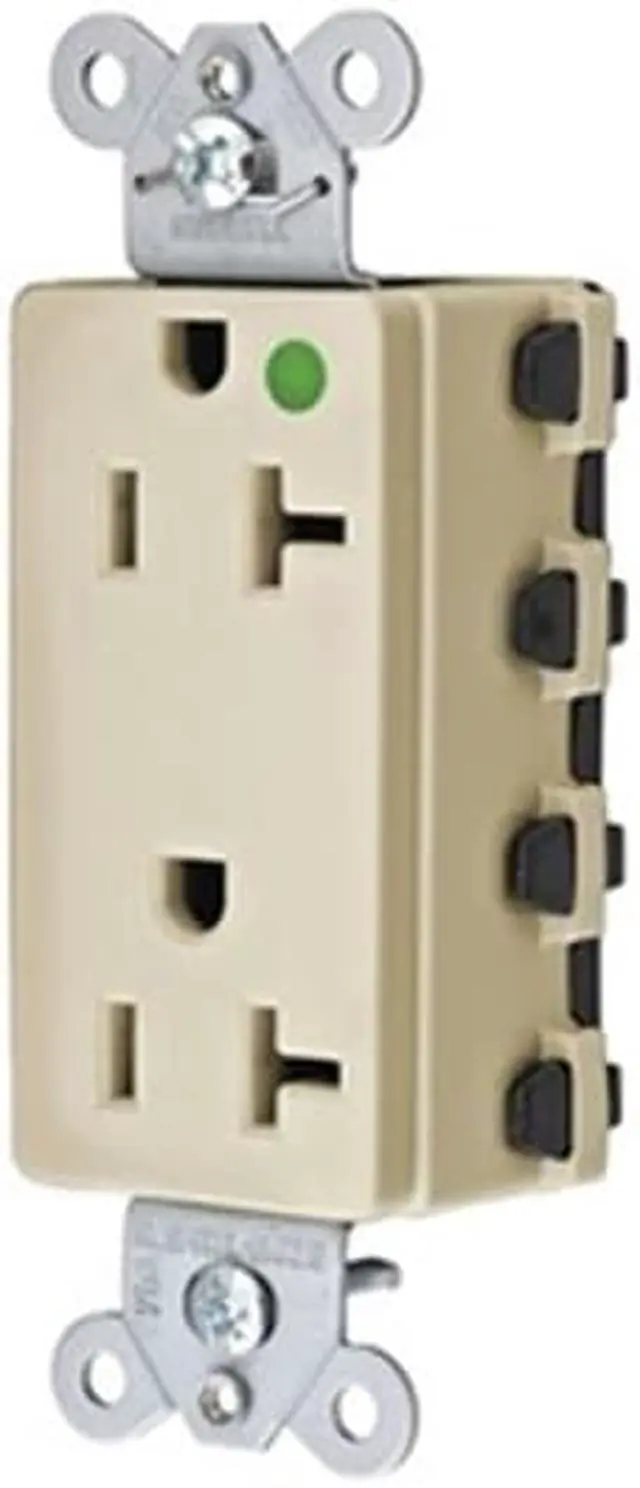

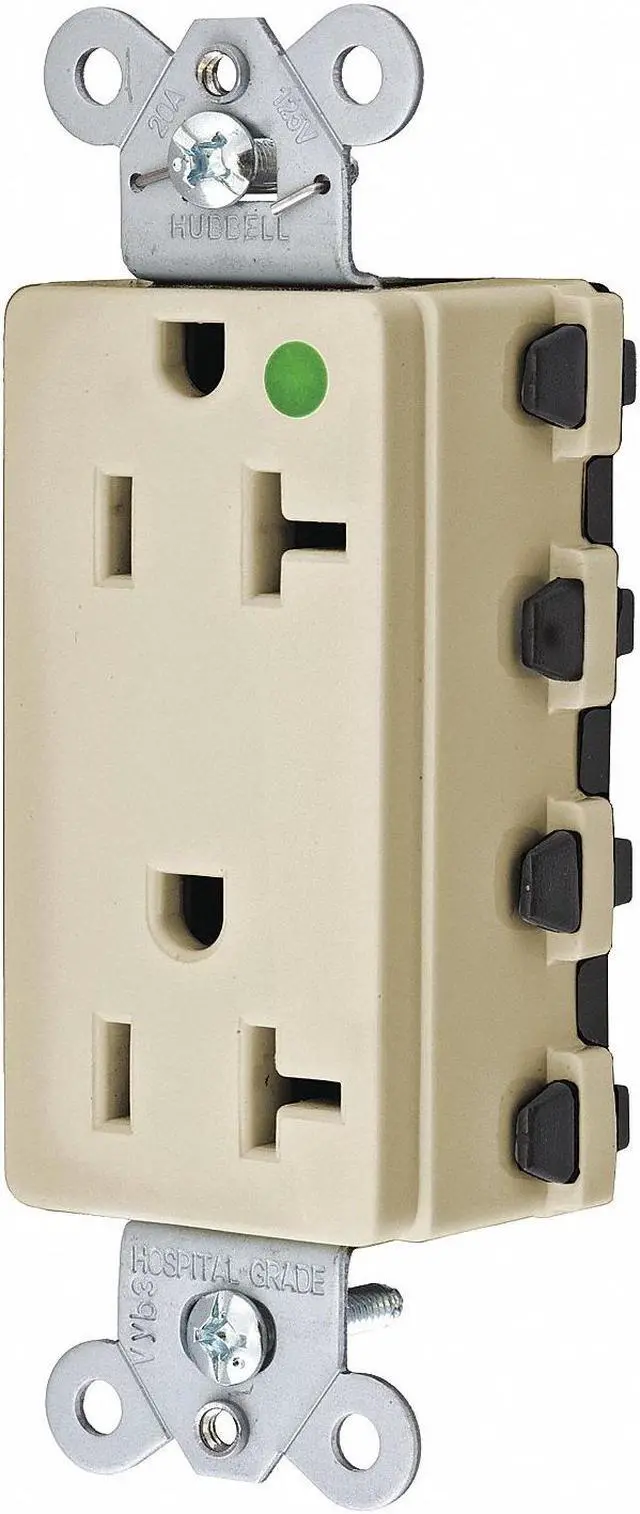

HUBBELL WIRING DEVICE-KELLEMS SNAP2182IA Duplex Straight Blade Receptacle,

The HUBBELL SNAPConnect® Hospital Grade Decorator Duplex Receptacle is a 20 A, 125V AC flush mount outlet suitable for modular wiring installations. Featuring a connectorized design, this receptacle allows the modular connector to be installed during rough-in and then snapped into place after wall installation, facilitating setup and device change-out. It is rated hospital grade; complies with applicable industry standards for heavy use environments.

Key Features of the HUBBELL SNAPConnect® Hospital Grade Decorator Duplex Receptacle:

• Amperage/Voltage: Rated for 20 A at 125V AC


• NEMA Configuration: 5-20R decorator duplex outlet with polarized, grounded connections


• Wiring Method: Modular back-wired connection supports #12 AWG wire size


• Mounting Type: Flush mount with included grounding clip and mounting hardware


• Material Construction: Nylon face and housing; brass power contacts; galvanized steel mounting strap; stainless steel self-grounding staple


• Dielectric Strength & Flammability: Withstands minimum 2,000V dielectric voltage; UL 94V-2 flammability rating


• Operating Temperature Range: -40°F to 167°F (maximum continuous operation at 75°C)


• Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL Listed to UL498 File E2186
