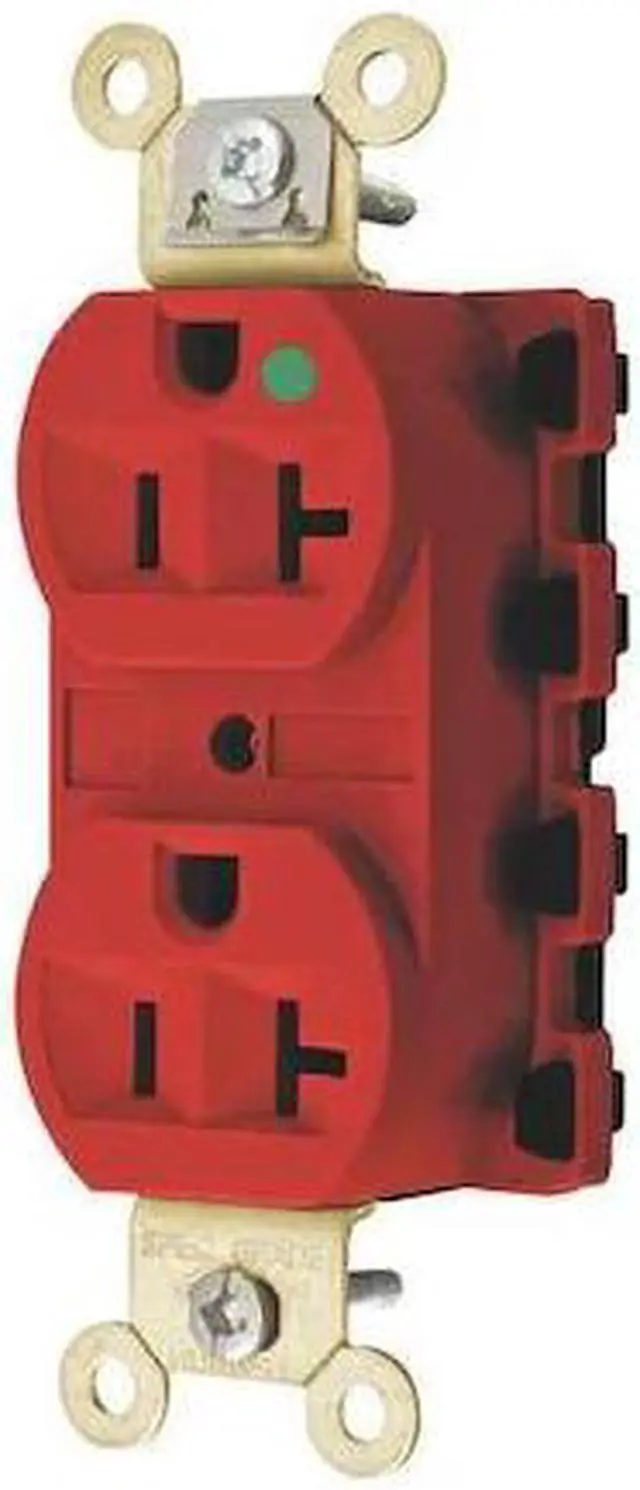

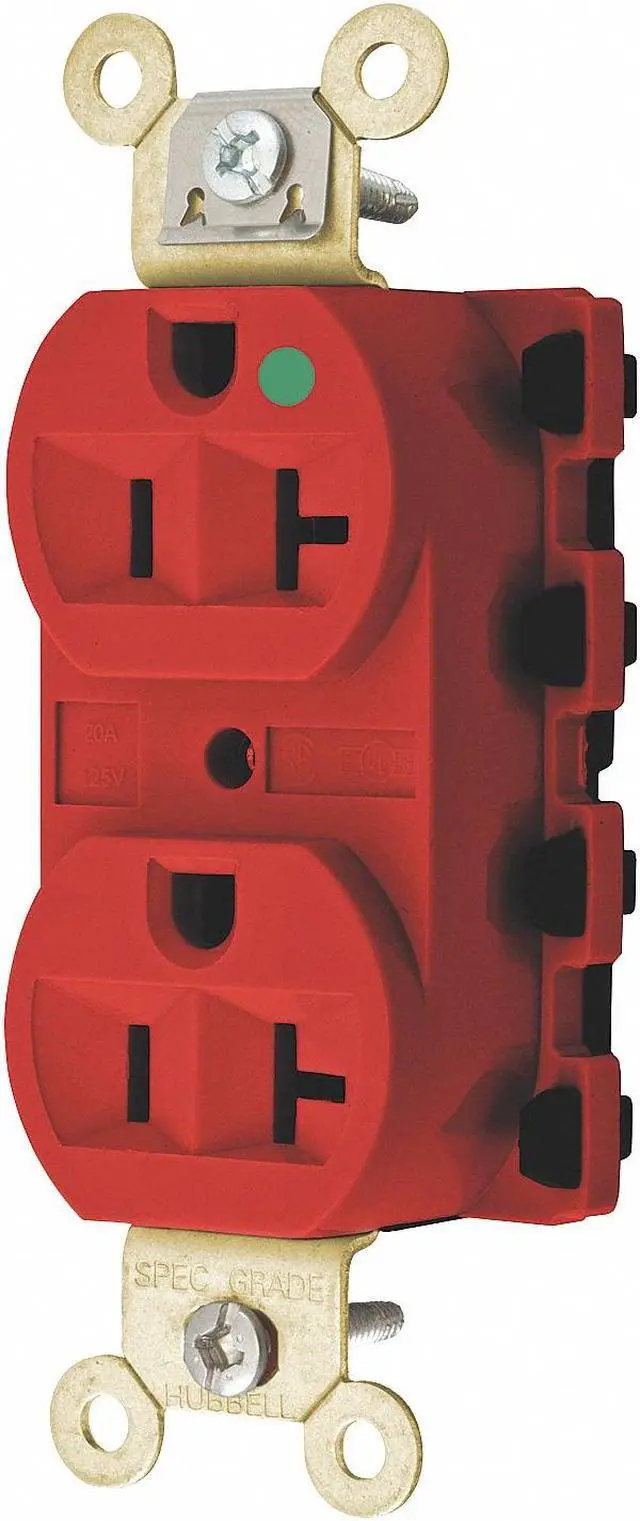

HUBBELL WIRING DEVICE-KELLEMS SNAP8300RA Straight Blade Receptacle, 5-20R, 20

The HUBBELL 20A Duplex Modular Receptacle 125VAC 5-20R RD is a duplex straight blade receptacle intended for modular wiring installations. Featuring SNAPConnect® technology, this device enables the connector to be installed during rough-in and then attached after wall completion. The receptacle is intended for use in high-traffic or commercial settings and includes an audible snap feature that indicates when connection is made.

Key Features of the HUBBELL 20A Duplex Modular Receptacle:

• Amperage/Voltage: Rated for 20 A, 125 VAC operation


• NEMA Configuration: 5-20R duplex outlet with Finder Groove Face style


• Wiring Method: Modular back-wired connection supports #12 AWG wire size


• Mounting Type: Flush mount design with included mounting hardware


• Material Construction: Nylon face and housing; brass power and ground contacts; stainless steel self-grounding clip


• Certification & Standards: Hospital Grade Fed. Spec., CSA Certified C22.2 No.42, NEMA WD-6 compliant, UL Listed to UL498 File E2186


• Performance Ratings: Withstands dielectric voltage of at least 2,000V; flammability rated UL94 V-2; operating temperature range -40°C to +75°C (without impact)


• Audible Snap Feature: Includes an audible snap feature that indicates when connection is made
