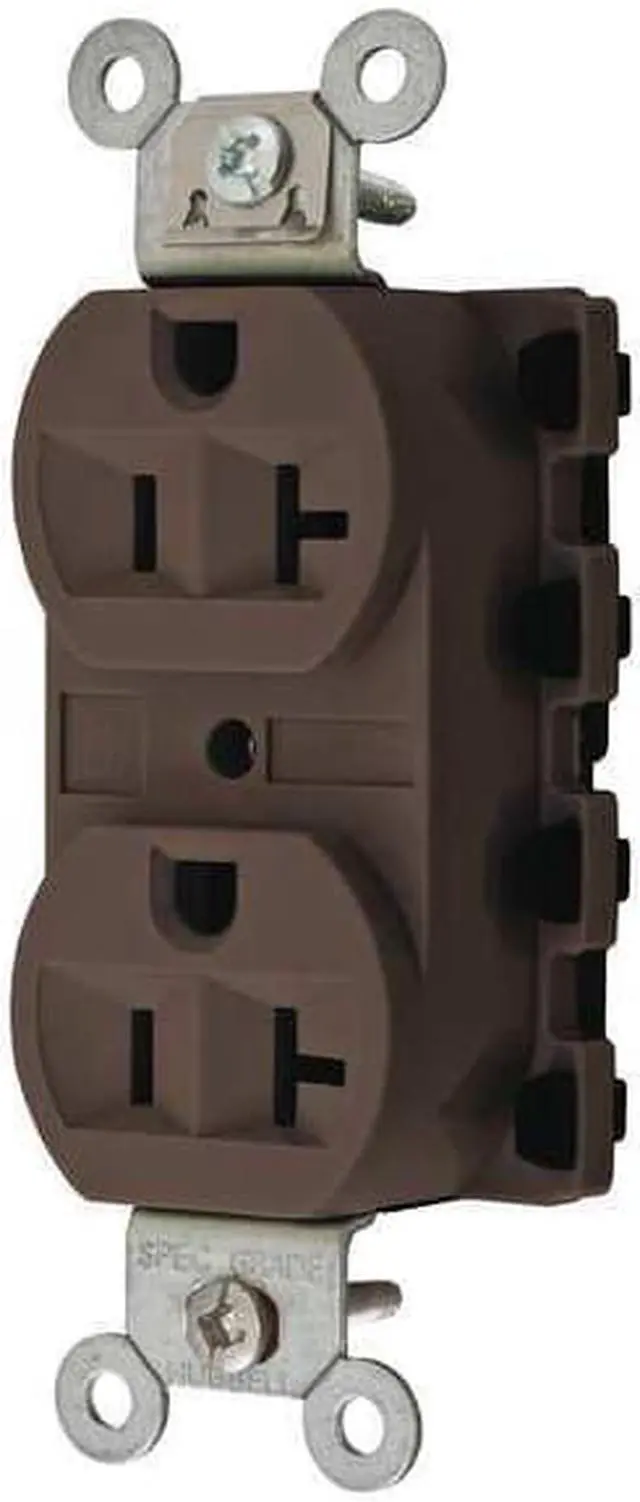

HUBBELL WIRING DEVICE-KELLEMS SNAP5362A Straight Blade Receptacle, 5-20R, 20 A,

The HUBBELL 20A Duplex Modular Receptacle 125VAC 5-20R BN is a suitable for modular wiring installations. Featuring SNAPConnect® technology, this device incorporates SNAPConnect® technology that permits the connector to be installed during rough-in and then attached after wall completion. The receptacle is rated for 20 amps at 125 volts AC and features a Finder Groove Face style; straight blade configuration.

Key Features of the HUBBELL - 20A Duplex Modular Receptacle:

• Amperage/Voltage: Rated for 20 A, 125 VAC operation


• NEMA Configuration: 5-20R duplex outlet with polarized, grounded design


• Wiring Method: Modular back-wired connection supports #12 AWG wire size


• Material Construction: Nylon face and housing; brass contacts; galvanized steel mounting strap


• Mounting Type: Flush mount with included grounding clip, staple, and mounting hardware


• Dielectric Strength & Flammability: Withstands minimum of 2,000V dielectric voltage; UL94 V-2 flammability rating


• Operating Temperature Range: -40°F to +167°F (without impact)


• Certifications & Standards: CSA Certified C22.2 No.42 File 285; Federal Specification W-C-596; NEMA WD-6 compliant; UL Listed to UL498 File E2186
