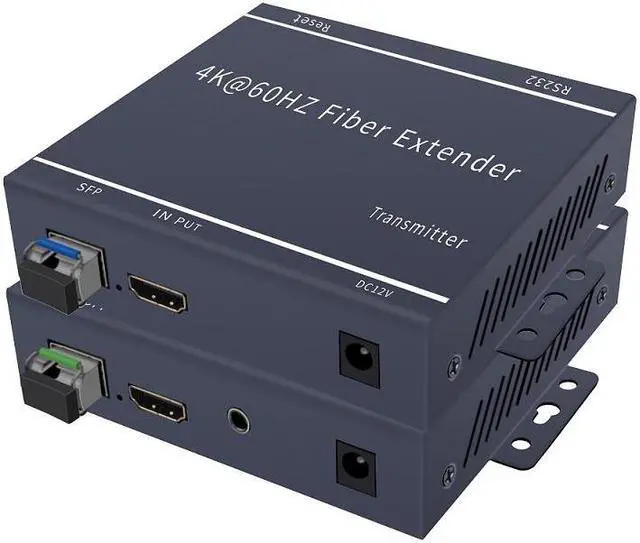

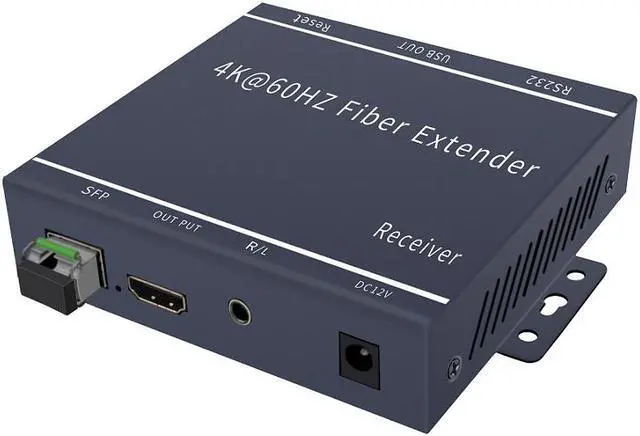

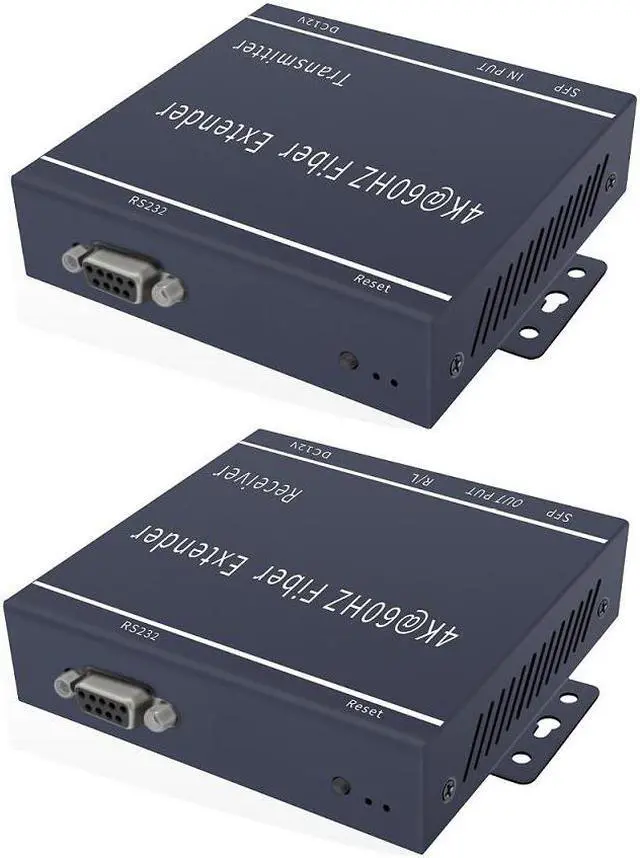

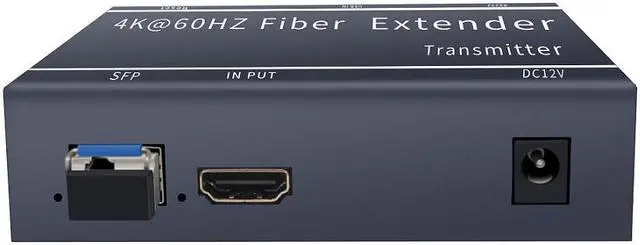

Up to 20KM / 12.4miles, 4Kx2K@60Hz HDMI2.0 Fiber Optic Extender Over Single Mode SFP MSA LC Fiber Optic Cable Transmitter and Receiver set

HDMI SFP Optic Fiber Extender

This product uses single-fiber two-way optical fiber transmission, which can extend the transmission of HDMI high-definition signals up to 20 kilometers. It has independent audio, RS232 serial ports. It adopts single-mode single-core SC interface gigabit optical module for transmission, low-cost fiber optic cable, and more stable signal transmission. It can be used in security monitoring, high-definition signals between buildings, large square screens and other long-distance HDMI signal transmission fields.
Features:
* Support HDMI 4K@60Hz( 4:2: 0);
* Support 3.5 mm stereo output;
* Support RS232;
* Comply with SFP MSA and SFF-8472 standard protocol ( 1.25G bps SFP Optical module);
* Pure hardware design, plug and play, no need to install additional software;
* Support 4K to 1080P (Downscaling);
HDMI version................................................. HDMI 2.0 4K@60Hz
HDMI resolution... The highest input can support 3840×2160@60Hz
Support audio format............................................................. L-PCM
Fiber wavelength........... 1310nm; 1550nm
Optical fiber transmission distance.............. The farthest 20KM
Working current.................. DC 12V 1A
range of working temperature.................................................... (-10 to +55?)

size............................................................ 100x100x25 (mm)
weight.......................................................0.9KG /Pair

Package Included:
1 x HDMI Fiber Transmitter (Tx)
1 x HDMI Fiber Receiver (Rx)
2 x 1.25G bps SC SFP Optical module
2 x 12V power supplier
1 x User manual.
