AMERICAN RECORDER 3 Conductor DMX Cable - 328 foot roll

3 PIN DMX LIGHTING CONTROL CABLE

When the very best is required this robust DMX Lighting Control Cables is designed for professional use and long-term durability for the most demanding applications.

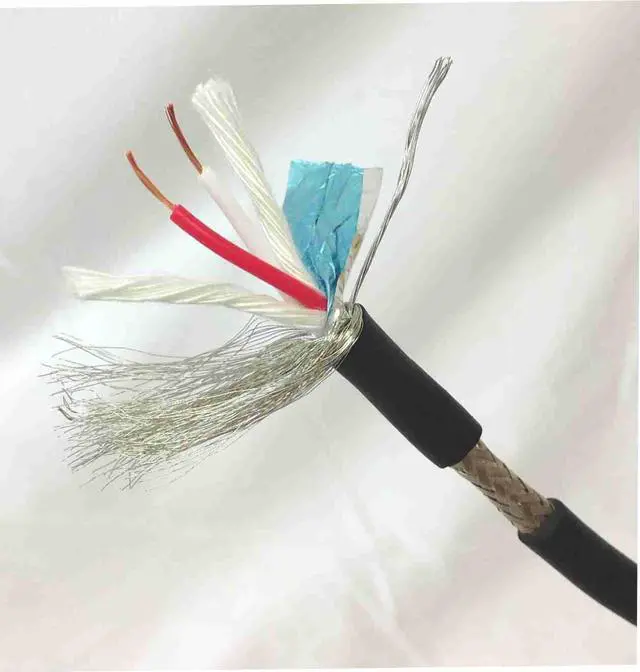

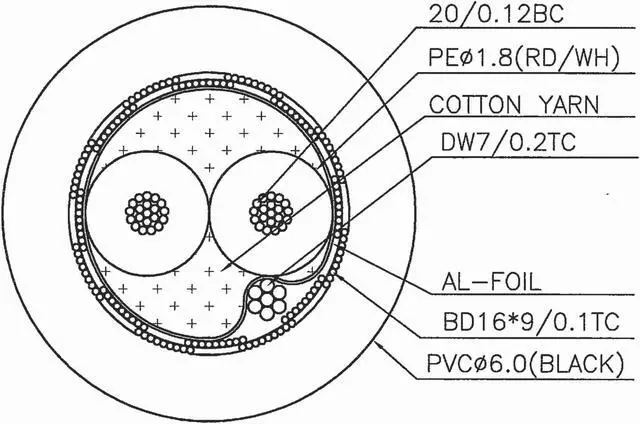

This DMX Cable features a digital 110 ohm twisted pairs (2 conductors 20 strands/0.12 awg) of bare copper with a heavy-duty PE insulator for maximum no-loss data transmission with even the longest cable runs.  The twisted pair is wrapped in tandem with flexible cotton fill for maintaining the cables internal structural integrity for repeated coil/uncoiling use.

With the abundant of so many electrical and electronic devices used in live sound theatrical and broadcast productions RF (radio frequency) & EMI (electro-mechanical interference)  noise can disrupt smooth signal data transfer which may cause delay or loss of control.

To prevent both RF and EMI interference from entering or radiating from our cables the entire assembly is double shielded first wrapped with a 100% foil cover followed by an aluminum braided sleeve effectively eliminating any stray high or low frequencies leakage.  The cable is then finished with a drain wire with an overall 8mm flexible PVC jacket.

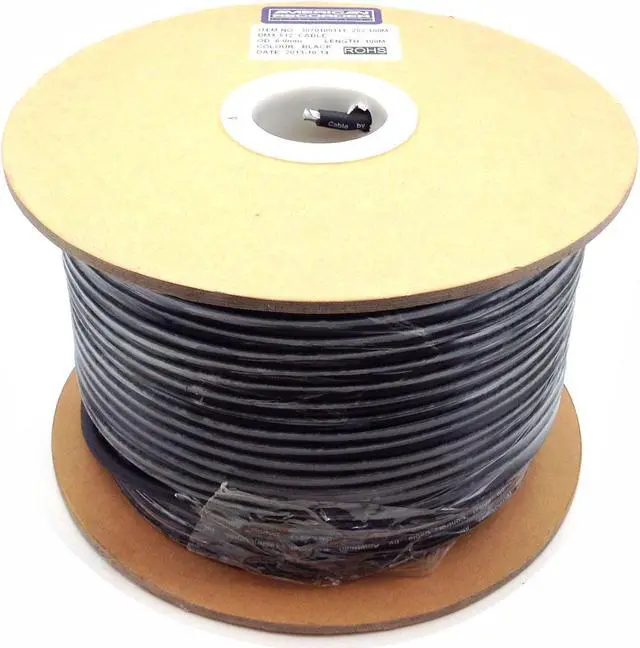

This wire is on 328 foot (100 meter) spool
