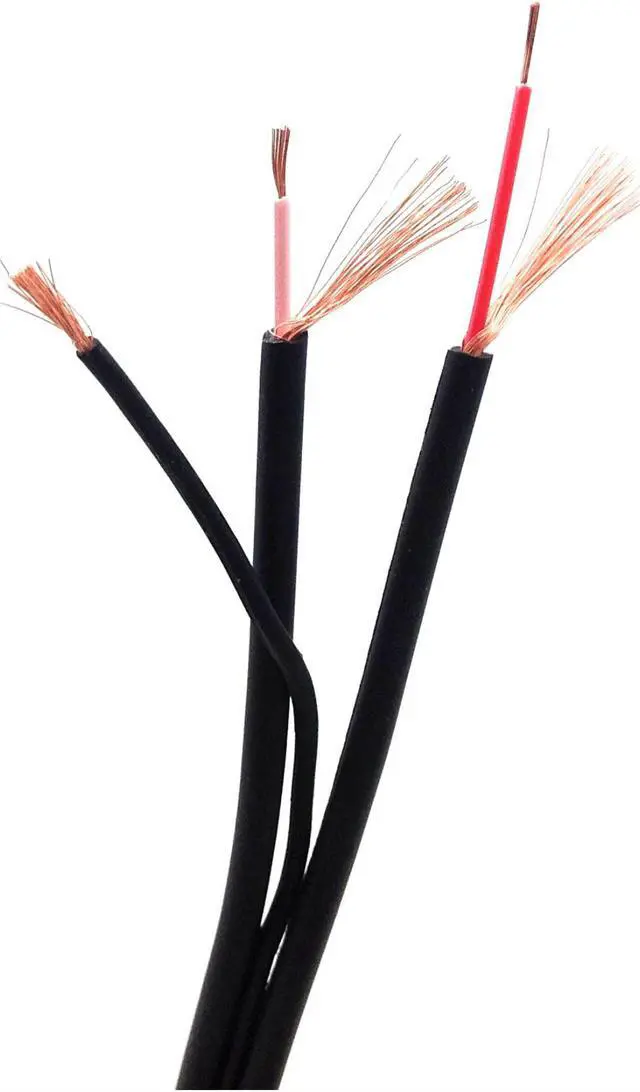

High Performance OFC Turntable Cable with Ground Wire

A vinyl LP (long-playing) record plays through a purely mechanical process that converts microscopic physical movements into sound.

Turntables use either a moving magnet (high-impedance) or moving coil (low-impedance) cartridge. The stylus traces the record?s grooves, translating the groove modulations into an electrical signal that is sent to connected audio components?typically a phono preamp, integrated amplifier, or receiver.

AMERICAN RECORDER?s high-performance turntable audio cable is engineered to faithfully and naturally transmit these extremely delicate, low-level signals.

Our turntable cables are built using a proprietary twin-lead cable design, featuring 27 AWG oxygen-free copper (OFC) center conductors surrounded by a 100% spiral shield. This optimized geometry and low capacitance ensure superior signal transfer with minimal noise while preventing high-frequency loss.

An 18 AWG chassis ground wire, terminated with a fork connector, is included for proper grounding. The ground wire extends 6 inches at each end, allowing for easy connection to a chassis ground screw. A durable yet supple outer PVC jacket ensures easy installation and long-term reliability.

• Bulk roll of turntable cable for those DIY cable makers.


• Available in 100 and 250 lengths.

PHYSICAL SPECIFICATIONS:

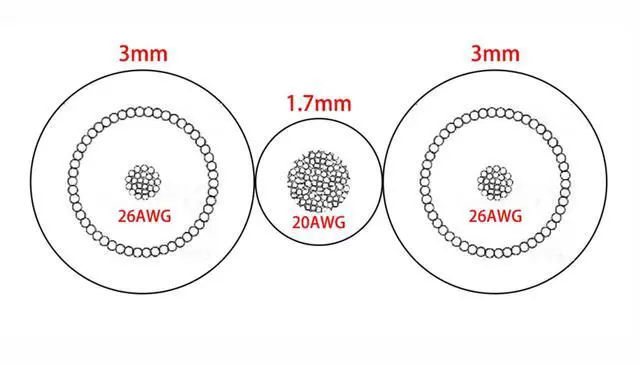

• Configuration: 2x75 ohm Coax +Ground


• Conductor Size: 27 awg (20 x 0.12mm)


• Conductor Material: OFC


• Shielding: 2 x 28 (0.12mm)


• Shielding Material: OFC


• Jacket Material: Flexible PVC


• Jacket Diameter: 3mm/1.7mm/3.mm


• Color: Black

ELECTRICAL CHARACTERISTICS:

• DC Resistance: 0.046 ohm/ft.


• Capacitance at 1kHz: 18.0 p/ft.


• Impedance at 10 MHz: 75 ohm


• Attenuation at 10 MHz: 0.019/ft.
