AMERICAN RECORDER 5 Pin, 5 Conductor DMX Cable

5 PIN (5 conductor) DMX LIGHTING CONTROL CABLE

When the very best is required this robust DMX Lighting Control Cables is designed for professional use and long-term durability for the most demanding applications.

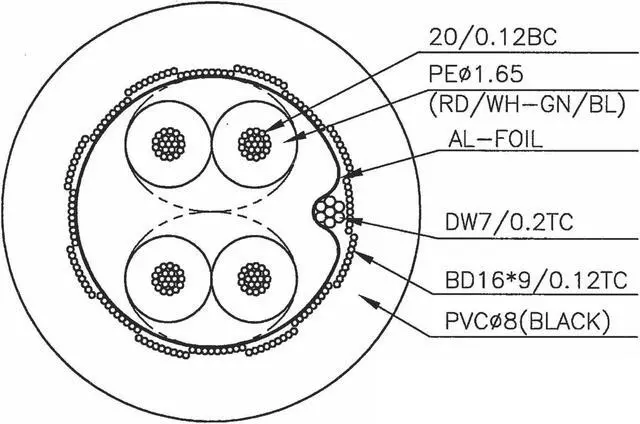

This DMX Cable features 2 digital 110 ohm twisted pairs (4 conductors 20 strands/0.12 awg) of bare copper with a heavy-duty PE insulator for maximum no-loss data transmission with even the longest cable runs.  The twin pairs are wrapped in tandem with flexible cotton fill for maintaining the cables internal structural integrity for repeated coil/uncoiling use.

With the abundant of so many electrical and electronic devices used in live sound theatrical and broadcast productions RF (radio frequency) & EMI (electro-mechanical interference)  noise can disrupt smooth signal data transfer which may cause delay or loss of control.

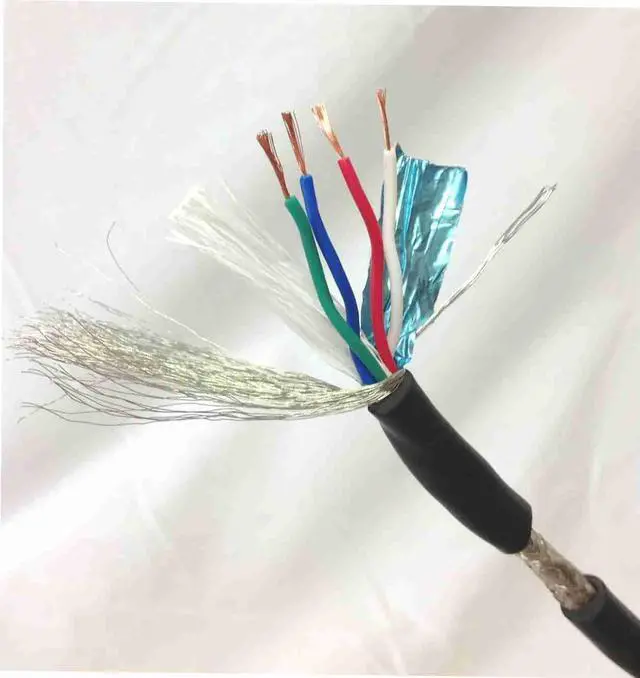

To prevent both RF and EMI interference from entering or radiating from our cables the entire assembly is double shielded first wrapped with a 100% foil cover followed by an aluminum braided sleeve effectively eliminating any stray high or low frequencies leakage.  The cable is then finished with a drain wire with an overall 8mm flexible PVC jacket.

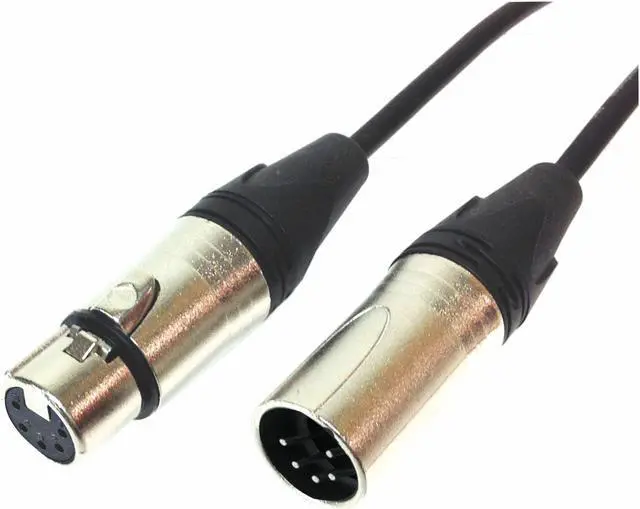

Our rock-solid ARTIC 5-pin XLR connectors are then terminated with our high content silver solder by one of our highly trained technicians.  Finally every cable is put thorough a 100% quality control inspection and must pass a final electrical test.

As an additional value added service we will place your NAME or COMPANY INFO on your DMX Cable free of charge. You  will get 2 lines of text allowing you to place additional information such as a phone number cable length date etc.

NOTE: Add your two lines of text in the "NOTES" section of shopping cart when ordering). We will not print any derogatory terms or profanity so please keep it clean!

We do custom length DMX Cables too contact our sales department for a quote.

  ASSEMBLED IN USA
