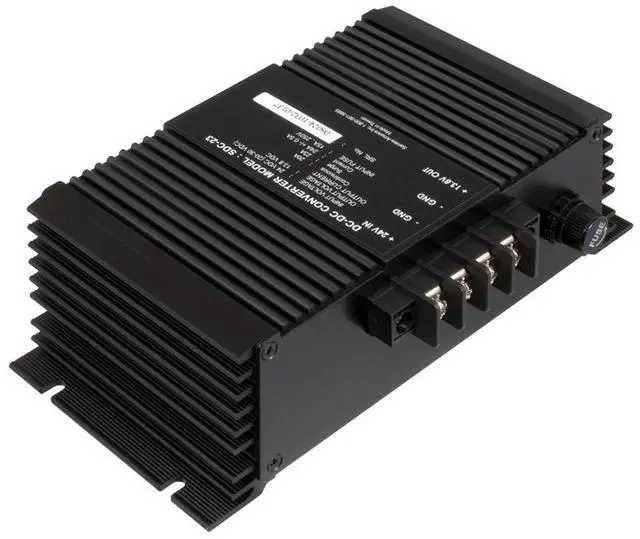

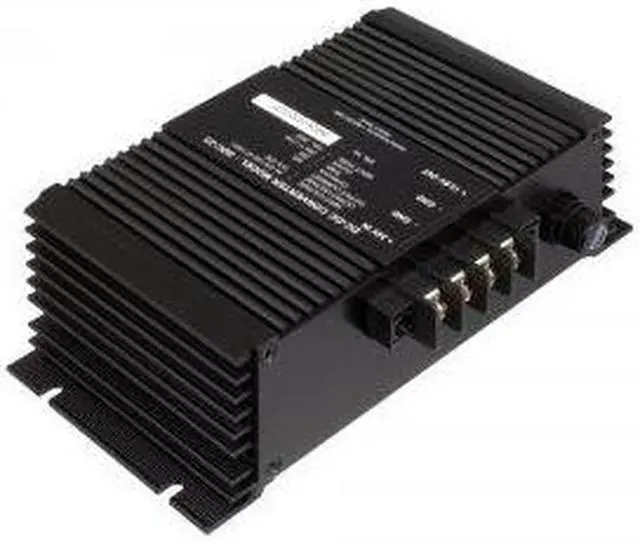

SAMLEX SDC-23 SWITCHING DC-DC CONVERTER 20-30V INPUT 13.8V
- pstrong20A Non-Isolated Step-Down 24VDC-12VDC ConverterstrongppThis high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 20 Amps. The SDC-23 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overvoltageshort-circuit protection, temperature compensated current limit, output-side overvoltage protection, input-side overvoltage transient protection and input-side reverse polarity protection. The SDC-23 DC-DC converter is designed for heavy duty applications.ppstrongFeatures:strongpulliAdvanced switchmode designliliMount in almost any locationliliCompact and light weightliliReverse polarity protectionliliHigh efficiencyliliCurrent limiting circuitliliOvervoltage crowbar circuitliliNon-Isolated for negative ground systemliulpstrongSpecifications:strongpulliInput:
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
liSAMLEX SDC-23 SWITCHING DC-DC CONVERTER 20-30V
INPUT 13.8V liliUPC:
622988060243liliBrand: Samlex
AmericaliliModel: 67246li
INPUT 13.8V liliUPC:
622988060243liliBrand: Samlex
AmericaliliModel: 67246li
