656ft HDMI USB KVM UTP Extender Up to 200m With HDMI Loop-out Over RJ45 Cat5e Cat6 Cable Transmitter Receiver

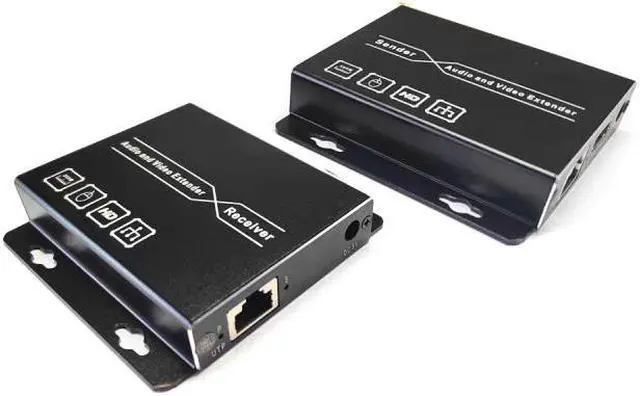

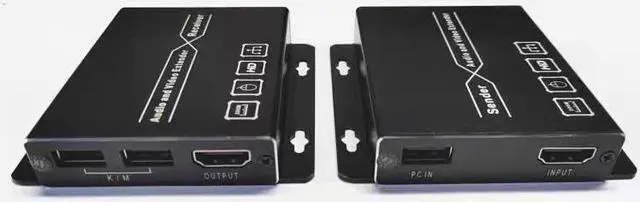

HDMI KVM Extender The HD-HDMI KVM Extender, used for HD and non-condensed signal up to 200 meters, consists of a sender and a receiver. This product through a CAT5/5e or above
Copper twisted pair (line sequence: white w/orange. orange. white w/green. blue. white w/blue. green. white w/brown. brown) extends those up to 1920 * 1080 @ 60HZ range resolution HD video, independent audio, for KVM USB mouse keyboard to the remote, as far as 200 meters, in the meantime, the transmitter provides a HDMI output port for local display. Different with conventional TCP/IP protocol 100 meters extender is this product image is a zero delay transmission, without image compression reduction is better; the products imported by the United States, real-time transmission of video and audio fidelity, USB mouse and keyboard signal, anti-interference circuit built-in lightning protection, which greatly improves the stability of products already working life. This product is widely used in the field of computer, home theater, monitoring, education, bank securities system etc..

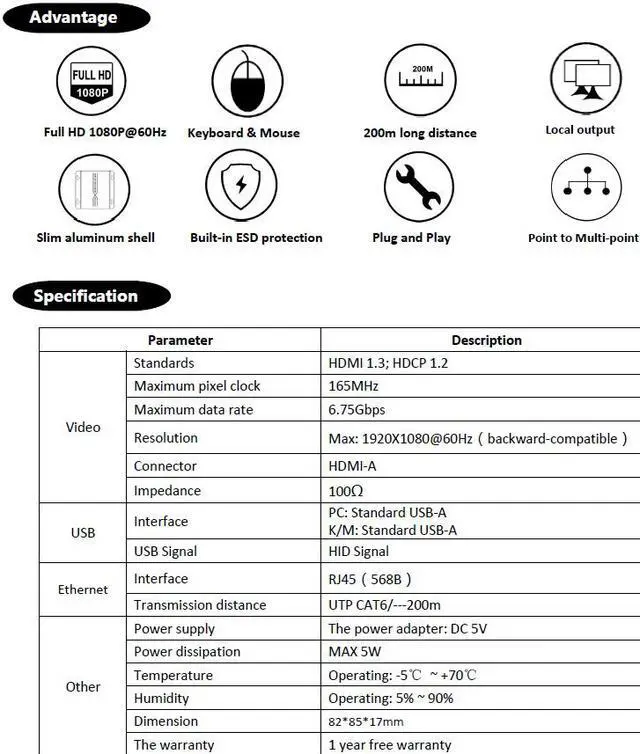

Features: Transmits HDMI video and audio signals up to 100m/200m over a single CAT6 cable, up to 160m over single CAT5e cable; Support video resolution up to 1920*1080@60Hz;
Audio: sampling
rate: 32kHz, 44.1 kHz and 48kHz;
Audio Format: DTS-HD/Dolby-true HD/LPCM 7.1 /DTS/DSD;
Audio: sampling
rate: 32kHz, 44.1 kHz and 48kHz;
Audio Format: DTS-HD/Dolby-true HD/LPCM 7.1 /DTS/DSD; Support keyboard and mouse signal transmission; Support external stereo audio signal transmission; Support HDMI loop out function, can match many kind display device; Compliance with HDMI 1.3 and HDCP 1.2 standard; High compatibility, can auto-match source and display device; Built-in automatic adjustment system, make the image smooth, clear and stable; Built-in ESD protection system; Simple to install, plug and play.
Package included: 1 x HDMI KVM Sender 1 x HDMI KVM Receiver 2 x power supplier 1 x User manual
