Up to 20KM, Original 4K@60Hz HDMI Optical Extender SC/LC Fiber Optic Video USB KVM Mouse and Keyboard Converter Transceiver Optical Terminal

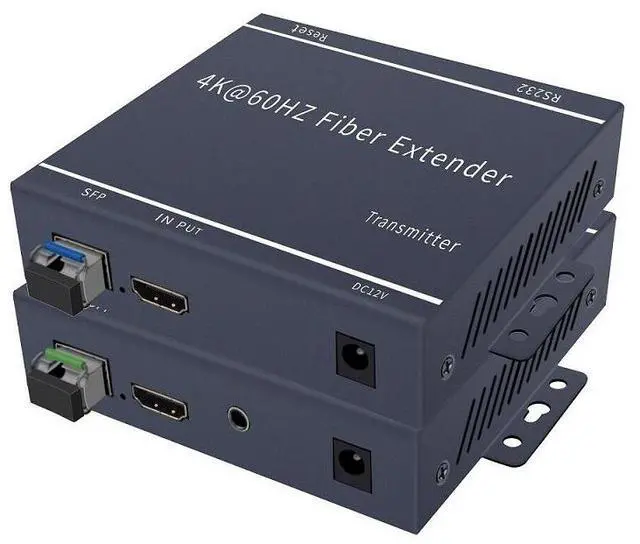

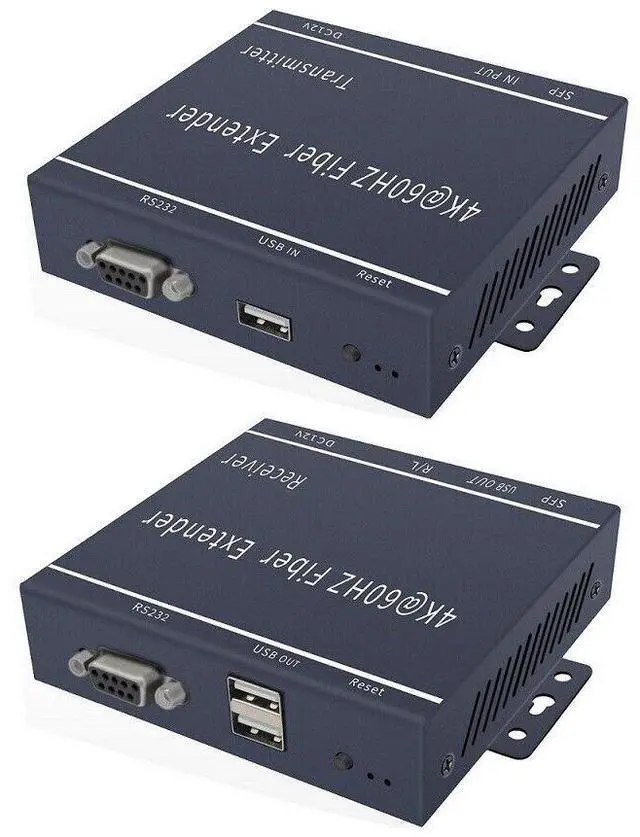

HDMI 4Kx2K@60Hz Optical Fiber Extender

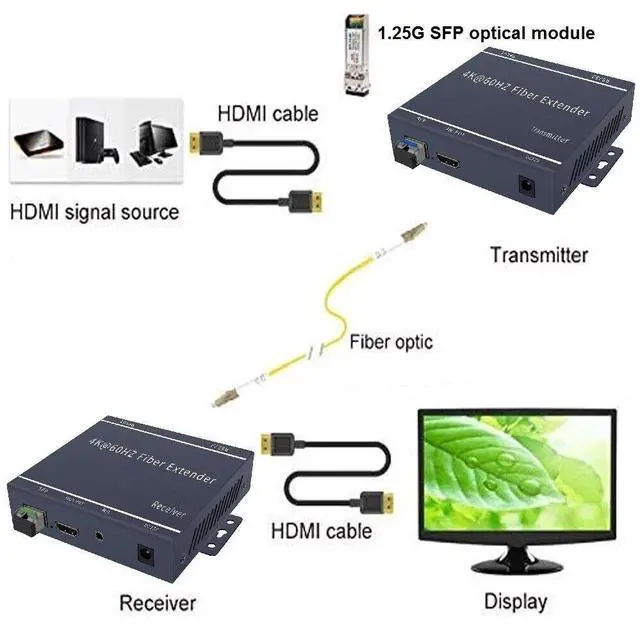

This product uses single-fiber two-way optical fiber transmission, which can extend the transmission of HDMI high-definition signals up to 20 kilometers. It has independent audio, RS232 serial ports, and mouse and keyboard communication interfaces. It adopts single-mode single-core SC/LC interface gigabit optical module for transmission, low-cost fiber optic cable, and more stable signal transmission. It can be used in security monitoring, high-definition signals between buildings, large square screens and other long-distance HDMI signal transmission fields.

Note: Default configuration is LC module. If you want SC module, please send a message to inform us.

Features:

* Support HDMI- 4K@60Hz;

* Support KVM mouse and keyboard

* Support 3.5mm stereo output;

* Support RS232;

* Comply with SFP MSA and SFF-8472 standard protocol;

* Pure hardware design, plug and play, no need to install additional software;

* Support 4K to 1080P (Downscaling);

HDMI-compatible version...................................................... .HDMI 2.0-compatible 4K@60Hz

HDMI-compatible Resolution ...................................... The highest input can support 3840×2160@60Hz

Supported Audio Formats...................................................... .............L-PCM

Fiber Wavelength ...................................................... ........1310nm; 1550nm

Optical fiber transmission distance...................................................... ...........Up to 20KM

Operating Current ................................. DC 12V 1A

range of working temperature............................................... .....(-10 to +55)

size................................................. ...........100x100x25(mm)

weight.......................................................0.9KG/pair

Package included:

1 x HDMI Optic Sender

1 x HDMI Optic Receiver

2 x power supplier

1 x User manual
