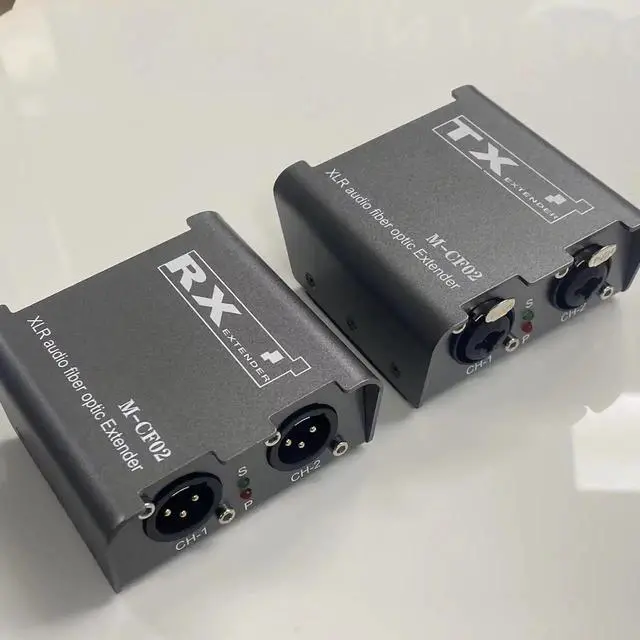

2 Way XLR Audio Fiber Optical Extender Transceiver Over SC Fiber Optical Cable up to 20km 2-CH XLR Balanced Audio Fiber Extender

Introduction:

This digital two-way audio optical transmitter can use one optical fiber to transmit two-way audio signals. Audio signal adopts 24bit/96KHz digital sampling to ensure high fidelity transmission; All digital optical transmission channels ensure high-quality signal transmission.

This product can be applied to game console high fidelity audio equipment, TV box, hi-fi home theater, large screen projection video conference, public video broadcasting system, remote multimedia education, teaching and medical system, military field, flat panel video media advertising demonstration, etc.

Features:

Two way unidirectional XLR Audio optical fiber transmission, the default distance is 20km (0-120km optional);

High speed digital transmission;

No electromagnetic interference, radio frequency interference and ground current;

Ensure safe transmission in harsh electromagnetic environment

Specification:

Audio input impedance:10K

Audio output impedance:600

Interface mode:Unbalanced interface

Input output range ratio:1/1

Frequency response:20HZ-20KHZ

Audio sampling rate:24bit/96KHZ

Signal to noise ratio(SNR):75dB

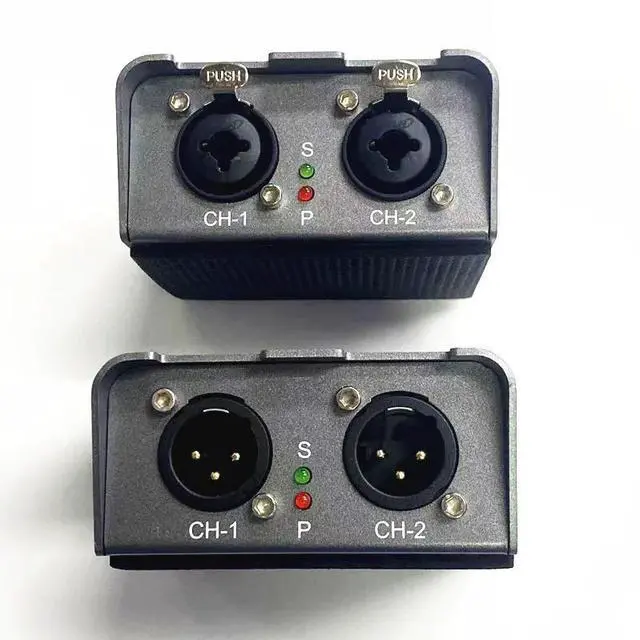

Audio interface:(XLR)

Optical Transmission wave length:TX:1310nm,RX:1550nm

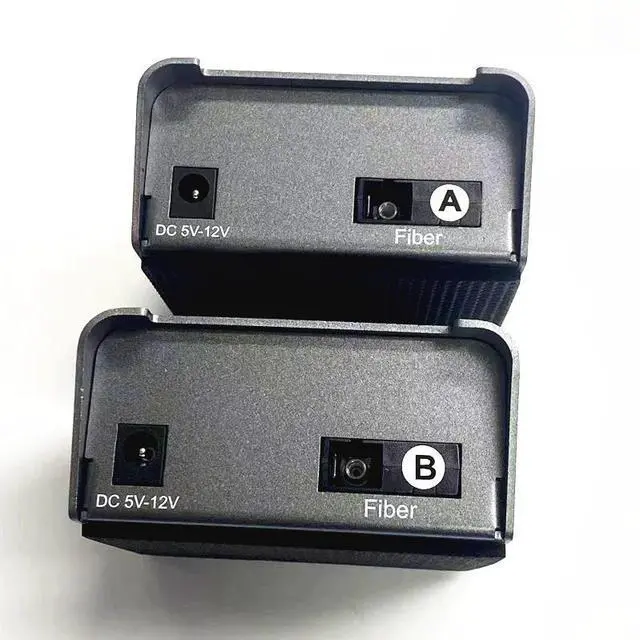

Optical interface:SC(Default SC)

Transmitted optical power:Max 10dB/20KM

Receiving sensitivity:-35@155MB/S

Optical dynamic range:-39dB~-42dB

Optical maximum allowable chain loss:25dB transmission distance:20KM(single mode)

Power:DC 5V-12V/1A

Power dissipation:4.8W@DC5V

Package:

1 x XLR Transmitter

1 x XLR Receiver

2 x Power adapter

1 x User manual
