$129.99
Ships from China.
Meet Your Seller
Digital Long Range HDMI Extender Local Loop-Out Over Cat6 100m/328ft HDBaseT 1080P Extender PoC, Bi-Directional IR, Supports Dolby Digital, DTS, with EDID, CEC, RS-232 Passthrough
- Supporting resolution: 1920* 1200@60Hz Extend by 100 meters;
- 4K is not supported;
- Supports audio formats: Dolby TrueHD, DTS Master Audio and 7.1 compliant;
- Supports CEC and EDID transparent transmission;
- Supports local loopback, EDID dialing, and fixed resolution;
- Supports maximum bandwidth: 10.2Gbps;
- Bidirectional transparent transmission IR, RS232,
- Supports 12V/1A POC single ended power supply (both TX and RX ends can be powered);
- Supports the software lock screen function. In the dialing state, as long as the transmitting end is powered on, regardless of whether the projector or monitor is turned on, the computer can recognize EDID, solving the problem of resolution jump during startup;
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Introduction:
This productor using the next-generation connectivity technology HDBaseT , it uses no delay, no compression transmission technology,
support 1920*1200@60Hz extend 100m over Cat6, otherwise pass-thru RS232 and IR. It can be connected to other standard HDBaseT device.
Widely used in home theater,exhibition display and commandcenter,etc .

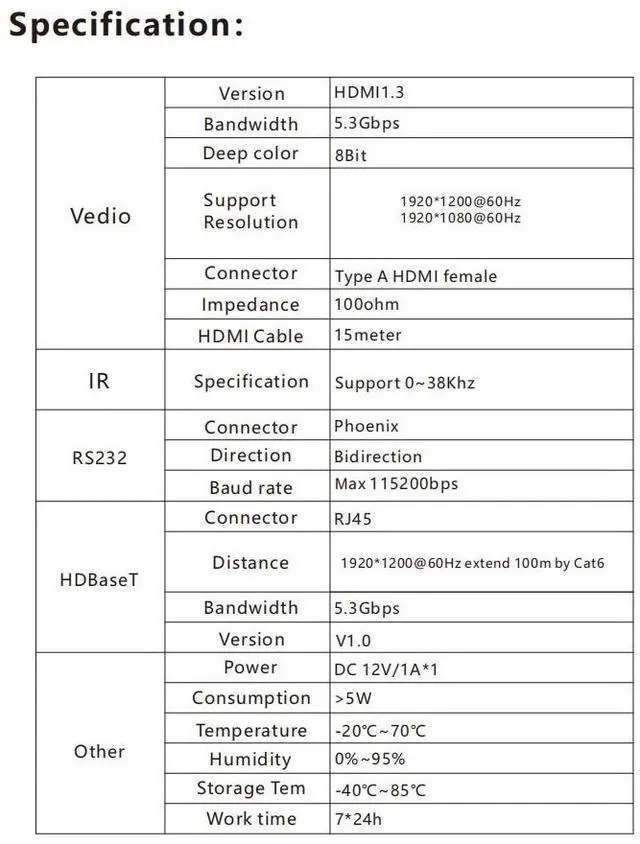

Features:
Support HDMI1.3.
Support 1920*1200@60Hz, 1920x1080@60Hz.
Transmitter 5.3Gbps HDMI signal,IR and RS232 over one Cat6 cable.
Support 7.1 channel and LPCM, Dolby TrueHD, DTS-HD Master Audio.
Support EDID&HDCP pass-thru.
Support RS232 pass-thru,baud rate: 110~115200bps.
Easy installation.
No compression, no delay.
Support POC single-end power supply.
Package:
1x Sender
1x Receiver
1x User manual
2x RS232 connector
1x 12V 1A power supply
