New 120m/394ft HDBaseT 4K@60Hz 4:4:4 HDMI Extender 18Gbps Local Loop-out Over Cat6 Extender PoC, Bi-Directional IR, Supports Dolby Digital, DTS, RS-232 Passthrough

Introduction:

This product uses advanced HDBaseT technology, which adopts no delay and no compression Transmission technology, Support 4K*2K@60Hz 4:4:4 HDMI signal transmitted through Cat6 network Line transmission of 100 meters, while 1920* 1080@60Hz Transmission of 150 meters, also capable of transparent RS232 transmission Control signals and infrared signals, compatible with all standard HDBaseT devices, widely used in Scenes from home theaters, exhibition displays, and command centers.

Features:

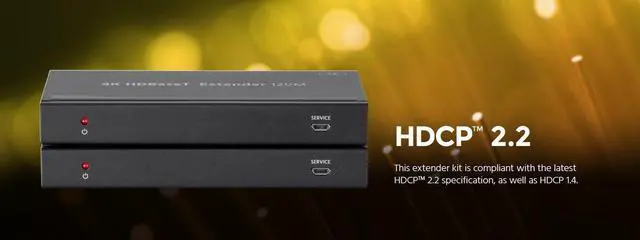

Supports HDMI 2.0, HDCP 2.2

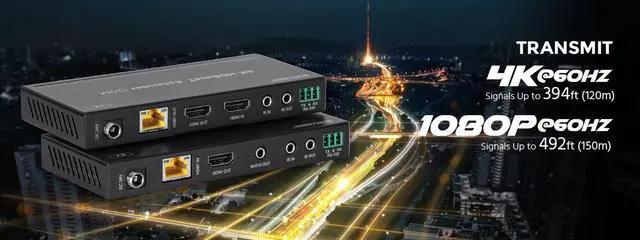

Supported resolution can reach up to 4096*2160@60Hz 4:4:4, 1080P@60Hz.

Supports one Cat6 Ethernet cable to transmit 18Gbps HDMI signals, infrared signals, and more RS232 serial port signal

Supports up to 7.1 channels and LPCM, Dolby TrueHD, DTS-HD Master Audio

Supports HDCP transparent transmission, compatible with various HDMI signal sources and display devices

Supports RS232 transparent transmission, with a baud rate support range of 110~115200bps

Easy to install, plug and play

The image is transmitted without compression or delay, with zero loss of image quality

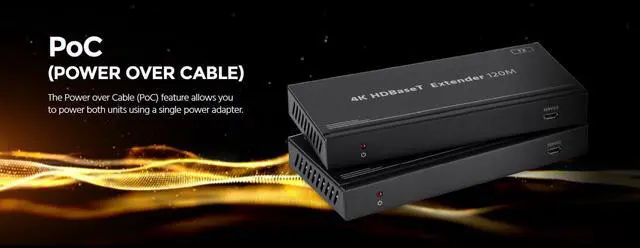

Supports POC single ended power supply, can be connected to the other end of the receiving or transmitting end, with a threaded power head that never loosens.

Package:

1x Sender

1x Receiver

1x User manual

2x RS232 connector .

1x Power supply
