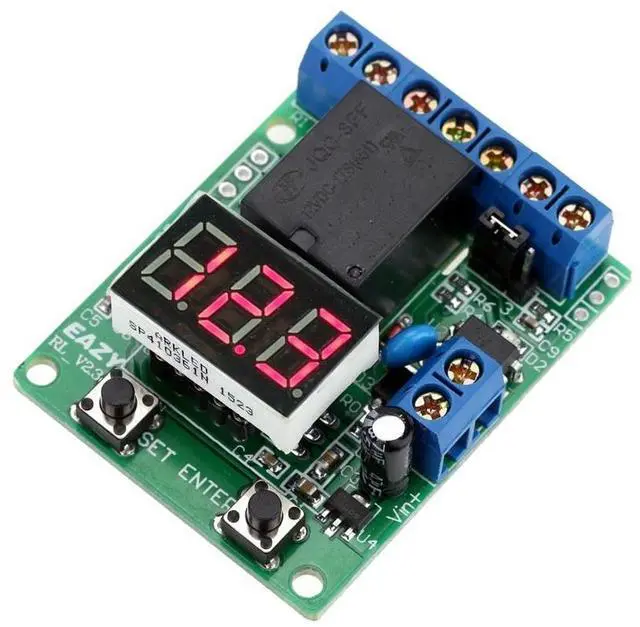

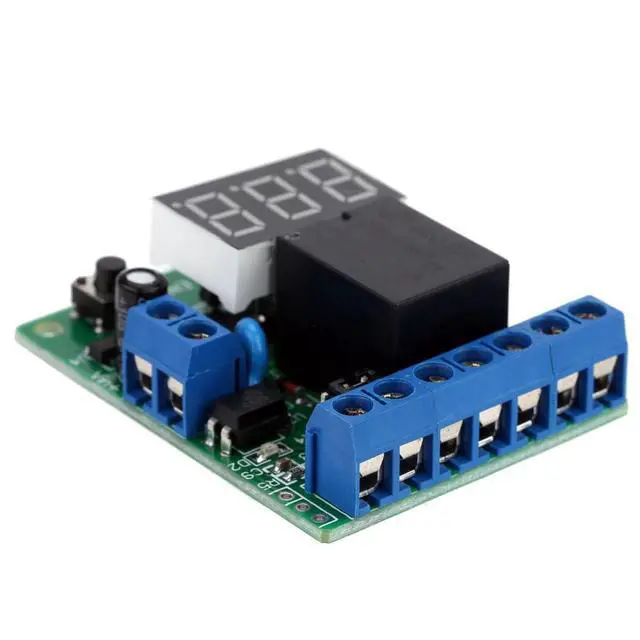

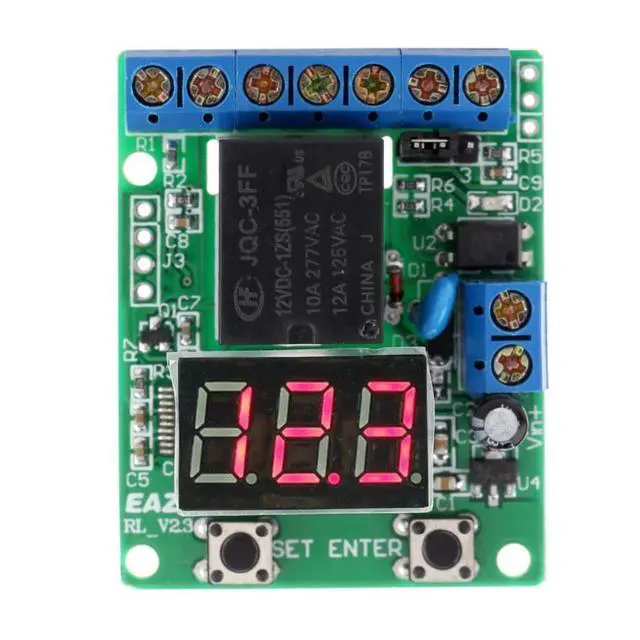

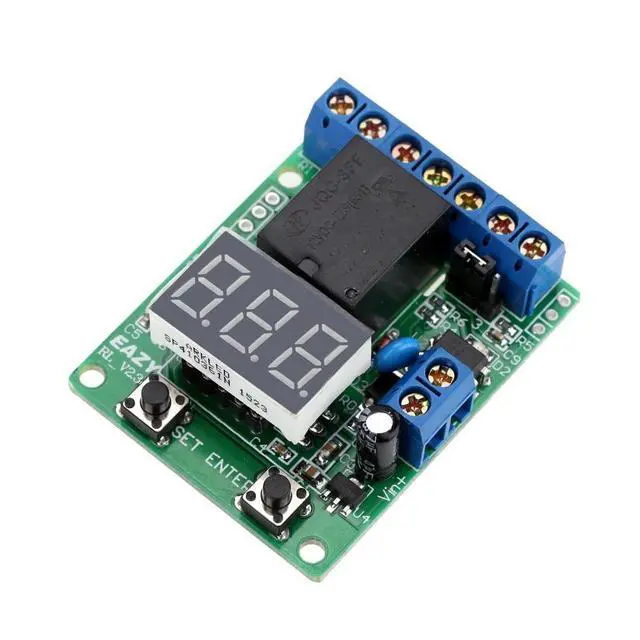

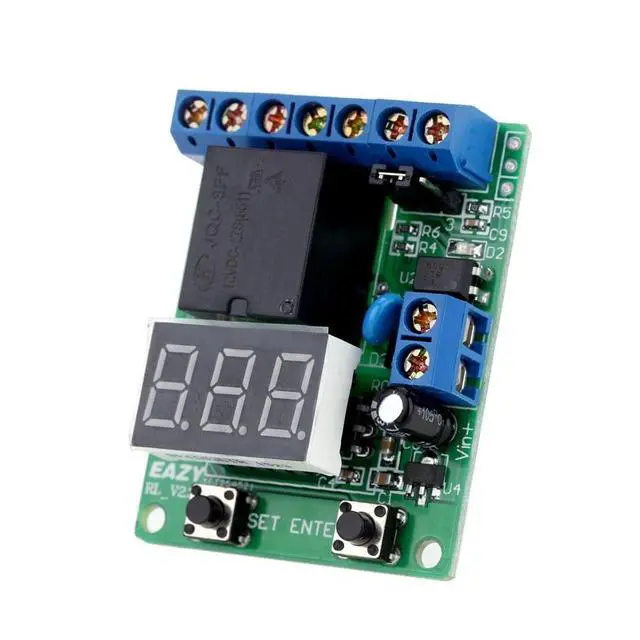

Ts1.2 Time Relay Controller Relay Module Relay-operated Controller Time Relay Module DC12V 0.1~999 Timing Range

Features: 8 trigger modes can be set, to achieve trigger start, trigger restart, signal maintenance running, trigger reset (watchdog function), force stop and other functions.
Timing Range: 0.1 seconds~999 minutes adjustable. (three range adjusting among 0.1 ~ 99.9 sec., 1~999sec., and 1~999min. ) Relay can be closed first and then opened, it can be also opened first and then closed. cycles 0~9999 times. (0 means infinite cycles). The pre-set parameters can be saved after power off. A set of conversion (normally opened and normally closed).
Specifications:
Material: PCB
Operating Power: DC12V (10~18V)

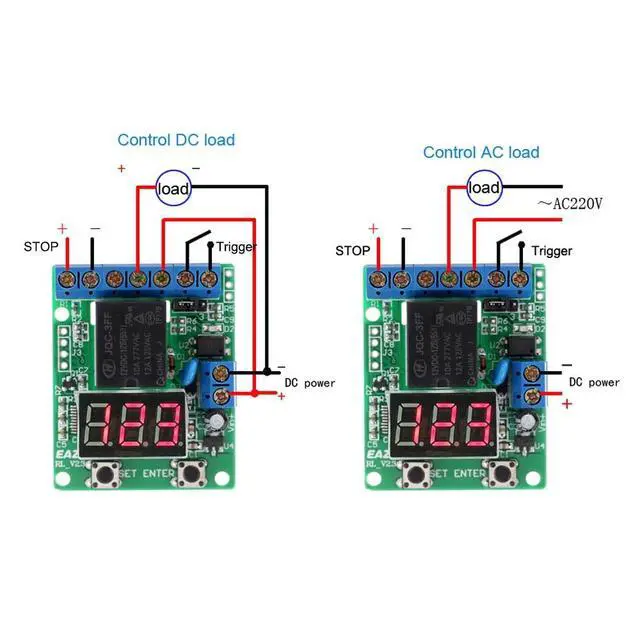

Contact Load: 10A/277V AC or 10A/30V
DC Contact Resistance:; 100mO (1A 6VDC)
Electricity Durability: >100, 000 (10A-250VAC)
Mechanical Durability: 10 millions
Operating Temperature: -40~85?

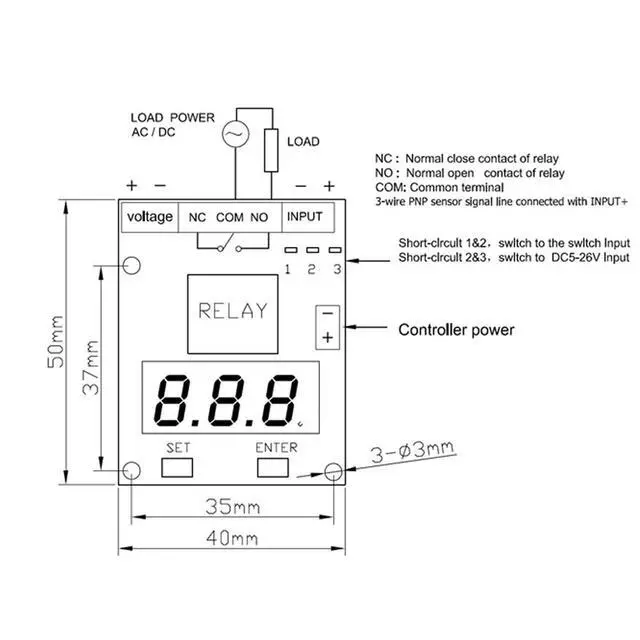

Item Size: 50 * 40 * 20mm / 1.97 * 1.57 * 0.79 in
Item Weight: 27g / 0.95 oz
Package Weight: 30g / 1.06 oz
Package Size: 5 * 4 * 2cm / 1.97 * 1.57 * 0.79 in
Package List: 1 * Module
