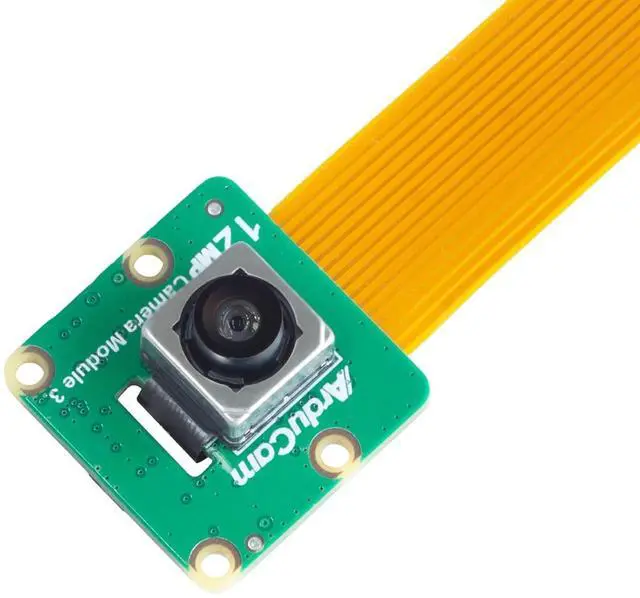

for Raspberry Pi Camera Module 3 Wide, 120°(D) IMX708 Autofocus Pi Camera V3, 15cm 15-22 Pin FFC Cable
- Compatible with all Raspberry Pi boards, Pi 5/4B/3B, Pi Zero W/2 W.; Based on IMX708 sensor with HDR, 4608 x 2592 is the highest resolution you can get for still images.; The autofocus of pi cam v3 is achieved by a mixture of PDAF and CDAF, ensuring crisp and clear images.; Quick Autofocus: Phase Detection Autofocus (PDAF) delivers rapid autofocus, ensuring that you never miss a shot.; This is the latest AF imx708 camera from Arducam, different from the official one. Please refer to the tutorial to make some simple configuration before use: bit.ly/ArduCam_CM3_B0311
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description Arducam Camera Module 3 delivers high-quality images with its 12MP IMX708 image sensor and HDR mode for up to 3MP output. This module offers exceptional SNR, equipped with a 100° HFOV Autofocus Lens, PDAF, and 2D DPC. The official IMX708 Camera Module 3 can be used on Raspberry Pi directly (B0306, B0307). Arducam Camera Module 3 will need some modification on configuration. Please ensure you are running the Raspberry Pi Bullseye OS 6.1. x and Later(the versions before 6.1. x are not supported). You need to install the camera driver for Arducam IMX708 autofocus camera module.
Please refer to: bit. ly/ArduCam_CM3_B0311 Video Modes 2304 × 1296p56, 2304 × 1296p30 HDR, 1536 × 864p120 1 x IMX708 AF Camera Module 1 x 15-22pin FPC Cable 1 x Paper Quick Start Guide
Resolution: 11.9MP
Focus Type: Auto Focus Field of
View (FOV): 120° (D) x100° (H) x72° (V)

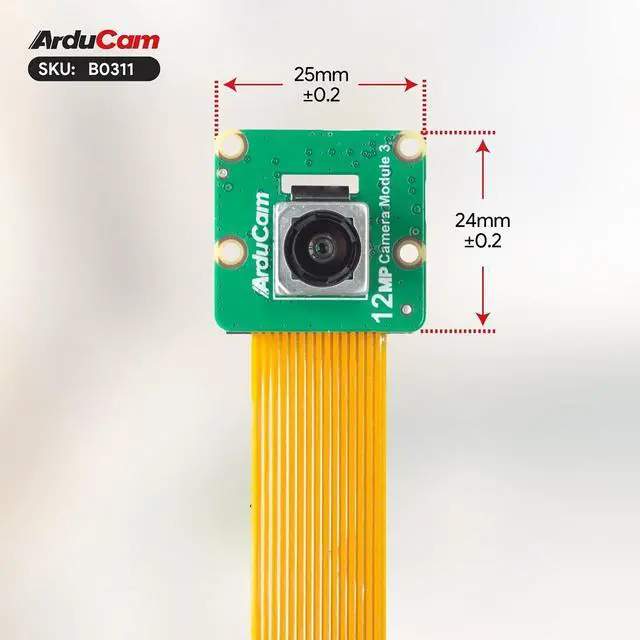

Support Platform: Raspberry Pi 4B/3B/2B/Zero Optical Size 1/ 2.43 ( 7.4 mm sensor diagonal) Number of effective pixels 4608 × 2592 pixels Pixel Size 1.4 m × 1.4 m Shutter Type Rolling Shutter Output Format RAW10 F. NO 2.2 ±5% Lens Size 6P*M 6.5 IR Sensitivity Integral IR-cut Filter, visible light only Camera Board Size 25 × 24mm Applications Astrophotography Surveillance cameras FA cameras Industrial/Agricultural cameras Autonomous mobile robots, UGV/UAV, ADAS, etc. 60fps Global Shutter Camera with M12 Lens 75° (D) Fixed Focus Pi Camera V3 120° (D) Fixed Focus Pi Camera V3 120° (H) Manual Focus Pi
Please refer to: bit. ly/ArduCam_CM3_B0311 Video Modes 2304 × 1296p56, 2304 × 1296p30 HDR, 1536 × 864p120 1 x IMX708 AF Camera Module 1 x 15-22pin FPC Cable 1 x Paper Quick Start Guide
Specifications
IMAGE SENSOR: IMX708Resolution: 11.9MP
Focus Type: Auto Focus Field of
View (FOV): 120° (D) x100° (H) x72° (V)
Support Platform: Raspberry Pi 4B/3B/2B/Zero Optical Size 1/ 2.43 ( 7.4 mm sensor diagonal) Number of effective pixels 4608 × 2592 pixels Pixel Size 1.4 m × 1.4 m Shutter Type Rolling Shutter Output Format RAW10 F. NO 2.2 ±5% Lens Size 6P*M 6.5 IR Sensitivity Integral IR-cut Filter, visible light only Camera Board Size 25 × 24mm Applications Astrophotography Surveillance cameras FA cameras Industrial/Agricultural cameras Autonomous mobile robots, UGV/UAV, ADAS, etc. 60fps Global Shutter Camera with M12 Lens 75° (D) Fixed Focus Pi Camera V3 120° (D) Fixed Focus Pi Camera V3 120° (H) Manual Focus Pi
