5MP Autofocus USB Camera for Raspberry Pi and Computer, 1/4 OV5648 USB2.0 Lightburn Camera, Video Webcam with Microphone
- 5 Megapixel USB camera High Definition 2592*1944 resolution webcam with autofocus lens is able to ensure your videos are always sharp and crystal clear.; 1/4 CMOS OV5640 lightburn camera. Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for personal or industrial.; Super small and Mini Size for your lightburn laser engraver. Compact lightburn laser camera for all kinds of machine vision.; Just plug the USB cable into your PCs USB port, plug and play, there is no need to download or install complicated driving software.; USB webcam widely works with WinXP/Vista/Windows 7/8, Windows 10 Linux with UVC. Webcam for MAC, PC, desktop computer, laptop USB. Note: The autofocus function requires a distance of 10 cm ~ infinite from the object to achieve accurate focus.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

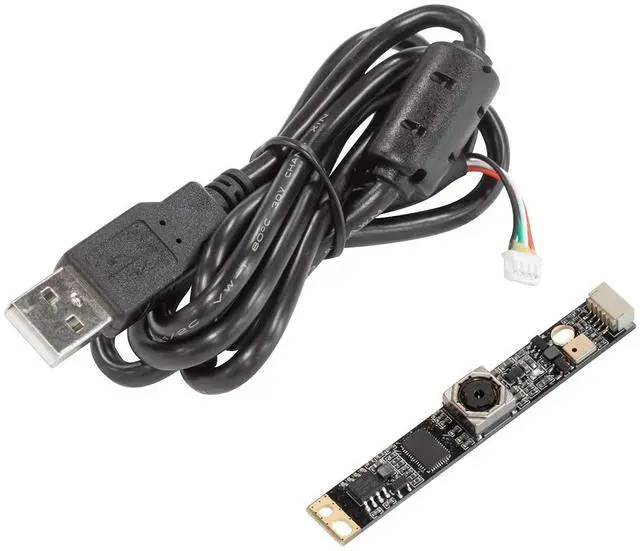

Product description The UB0238 is a new member of Arducams USB camera family. Its a 5MP, UVC-compliant, USB 2.0 camera. This USB camera is based on the 1/4 Sony OV5648 image sensor. No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed. This small-sized USB cam can also be used as a lightburn cam, which can be used to capture images of the workpiece and display them in the lightburn software.
This is particularly useful for working with irregularly shaped workpieces or for engraving on objects that do not have a flat surface. Plug & Play Functionality and
Compatibility -Adjustable parameters: Saturation, Contrast, Acutance, White balance, Exposure.
-System Compatibility: Windows XP (SP2, SP3)/Vista/7/8/10, Linux, and Mac with UVC
Power -Power supply: USB powered 5V -Working
Current: MAX 250mA Physical -Operating
Temp: -4°F~158°F (-20°C~+70°C).

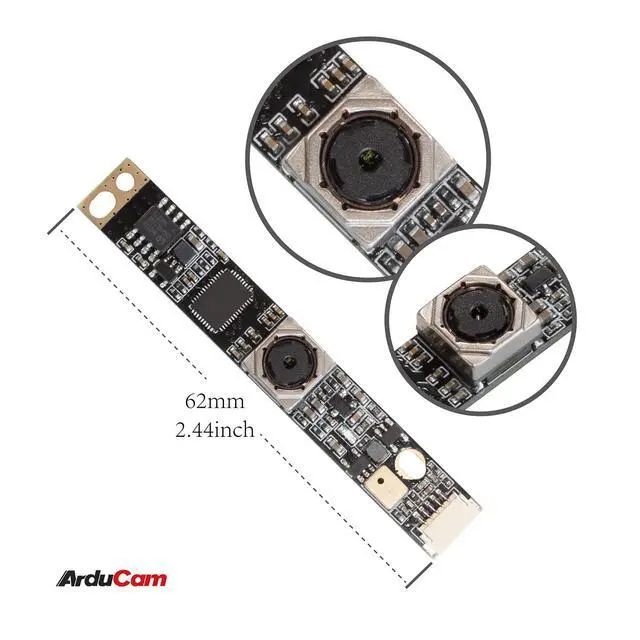

-Dimension: 62mmx9mmx5mm -Cable
Length: 3.3 ft (1M) SPECS
Camera - Sensor: 1/4 OV5648 -
Resolution: 2592 (H) x1944 (V) -Frame
Rate: MJPG 15fps@2592 x 1944/1600 x 1200; 30fps@1080P/1280 x 960/1280 x 720/1024 x 768/800 x 600/640 x 480; YUY2 2fps@2592 x 1944; 3fps@2048 x 1536; 5fps@1920 x 1080/1600 x 1200/1280 x 960; 10fps@1280 x 720/1024 x 768; 15fps@800 x 600; 20fps@640 x
480. Lens -Field of
View (FOV): 65° (H) x77° (D) x51° (V) -Lens
Mount: M6 -IR
Sensitivity: Integral 650 IR filter, only visible light
This is particularly useful for working with irregularly shaped workpieces or for engraving on objects that do not have a flat surface. Plug & Play Functionality and
Compatibility -Adjustable parameters: Saturation, Contrast, Acutance, White balance, Exposure.
-System Compatibility: Windows XP (SP2, SP3)/Vista/7/8/10, Linux, and Mac with UVC
Power -Power supply: USB powered 5V -Working
Current: MAX 250mA Physical -Operating
Temp: -4°F~158°F (-20°C~+70°C).
-Dimension: 62mmx9mmx5mm -Cable
Length: 3.3 ft (1M) SPECS
Camera - Sensor: 1/4 OV5648 -
Resolution: 2592 (H) x1944 (V) -Frame
Rate: MJPG 15fps@2592 x 1944/1600 x 1200; 30fps@1080P/1280 x 960/1280 x 720/1024 x 768/800 x 600/640 x 480; YUY2 2fps@2592 x 1944; 3fps@2048 x 1536; 5fps@1920 x 1080/1600 x 1200/1280 x 960; 10fps@1280 x 720/1024 x 768; 15fps@800 x 600; 20fps@640 x
480. Lens -Field of
View (FOV): 65° (H) x77° (D) x51° (V) -Lens
Mount: M6 -IR
Sensitivity: Integral 650 IR filter, only visible light
