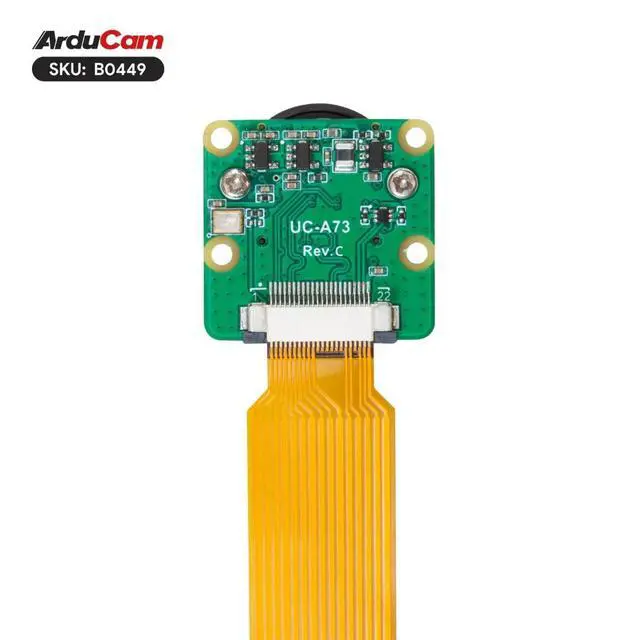

for Raspberry Pi Camera 16MP IMX519 Camera Module with 120°(D) Wide Angle M12 Lens for Raspberry Pi and OpenHD
- 16MP for All Pis: Based on a 16MP IMX519 image sensor with a pixel resolution of 4656 x 3496, twice as high as the v2 camera and 40% higher than the HQ camera.; V1/V2/V3 size: With a compact size of 25*24mm, this camera is perfect for drones and other embedded applications, providing excellent versatility.; M12 Manual Focus: Easy to manually adjust focus distance with the M12 HD lens, the 122° ultra-wide angle Lens captures exceptional detail and clarity for any project.; Crisper Images/Video: Captures smooth and clear 1080p30 and 720p60 video, making it perfect for streaming or recording your next project.; Wide Compatible: Compatible with all Raspberry Pi camera boards, including the Raspberry Pi Zero (Note: 22-22pin FPC cable is required, which is not included in the package.), this camera offers a hassle-free, versatile solution for all your camera needs.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description Arducam IMX519 camera module is a high-quality camera designed for an excellent image and video capturing capabilities. With a 16MP high-pixel sensor and an M12 HD lens, it delivers exceptional image quality with clear details and vibrant colors. The manual focus adjustment feature allows users to customize their photography and videography experience, while the wide FoV captures more details of the image. Arducam is committed to creating diverse and convenient camera solutions for embedded camera users. We are not only engaged in the production and development of optical products but also strive to provide complete solutions for embedded cameras, optical components, etc.
NOTE: When use this camera, please add dtoverlay=imx519, vcm=off under the line [all] For further information, please
refer to: bit. ly/ArducamDocs-B0449
Size 25*24mm(Hole Pitch: 21* 12.5 mm) Package Including 1 x IMX519 M12 Camera Module with 15-22pin FPC Cable 1 x Quick Start Guide FOV=110° (H)
Resolution: 16
NOTE: When use this camera, please add dtoverlay=imx519, vcm=off under the line [all] For further information, please
refer to: bit. ly/ArducamDocs-B0449
Specifications
IMAGE SENSOR IMX519 Optical Size Type 1/ 2.53" Number of effective pixels 4656 (H) ×3496 (V) Pixel Size 1.22 m× 1.22 m Support Platform Raspberry Pi 5/4/Jetson Nano Shutter Type Rolling shutter Color Filter Array Quad-Bayer RGB Frame Rate 1080p30, 720p60 Output Format RAW 10/RAW 8, COMP8 F. NO 2.85 ±5% Focus Type Manual Focus Focal Length 2.87 ±5% Lens Size M12*P 0.5 mm Field of View (FOV) 122° (D) ×110° (H) ×94° (V) IR Sensitivity Integral IR-cut Filter, visible light only Camera BoardSize 25*24mm(Hole Pitch: 21* 12.5 mm) Package Including 1 x IMX519 M12 Camera Module with 15-22pin FPC Cable 1 x Quick Start Guide FOV=110° (H)
Resolution: 16
