for Raspberry Pi Camera Module 3, 12MP IMX708 102°(H) Wide Angle Fixed Focus HDR Camera for Raspberry Pi 5, 4/4B, 3/2/Zero W

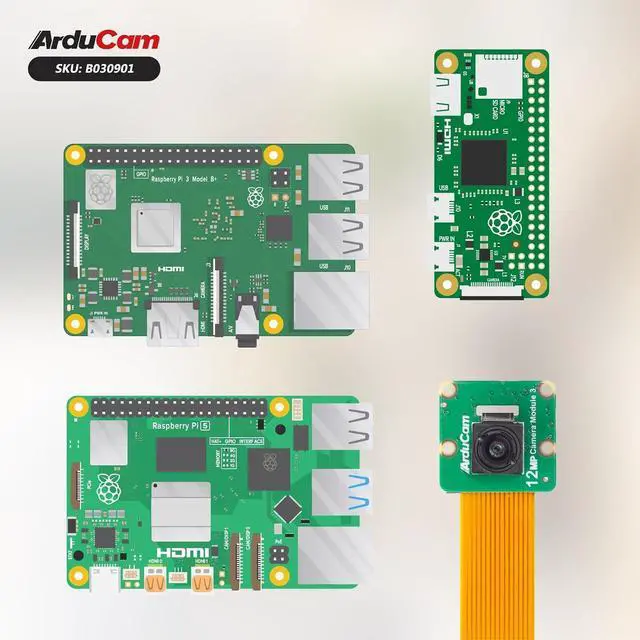

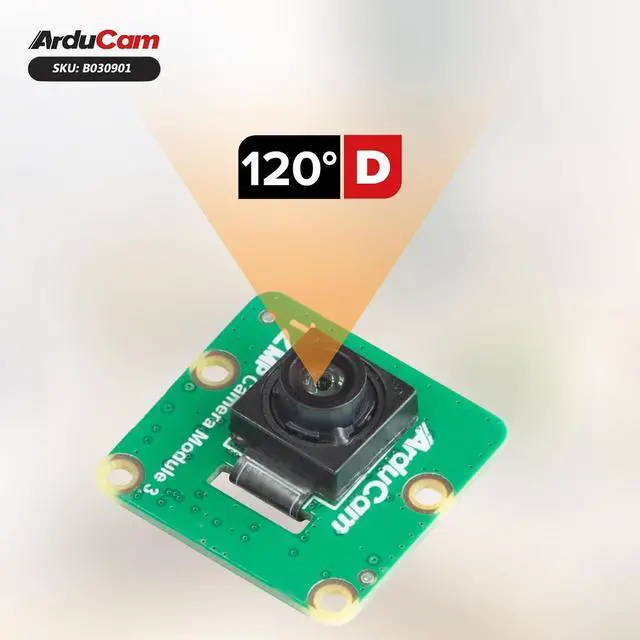

- Superior Sensor: This Raspberry Pi camera module 3 adopts IMX708 back-illuminated stacked CMOS with 3MP HDR output capability.; Wide Angle: This is a wide angle camera that is equipped with a 102°(HFOV)Lens.; Fixed Focus: As an IMX708 camera, different from the official one, this V3 camera has a Fixed focus lens, which can be a choice for customers who need it.; Wide Compatibility: This RPI camera is compatible with all Raspberry Pi boards, including Raspberry Pi5, pi4/4b,3/2/Zero W, and so on.; Package includes: IMX708 camera module v3, 1x 15-22pin&22-22pin FPC cable for Raspberry Pi.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

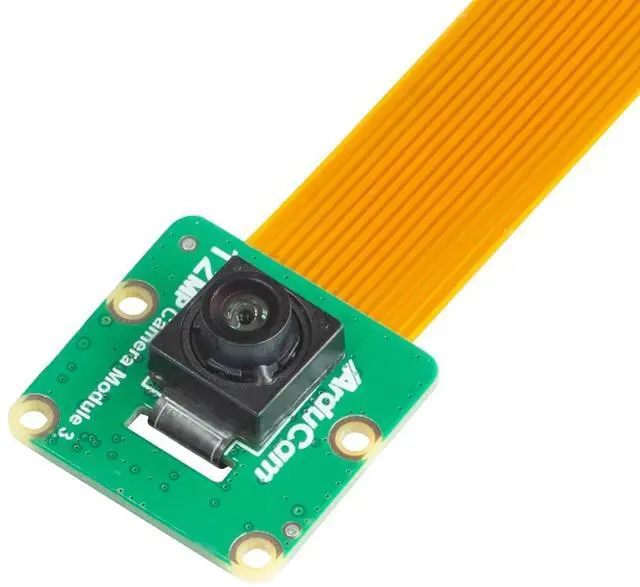

Product description This wide-angle Fixed Focus camera is designed by Arducam, which is based on the Official Wide-Angle Camera Module
3. This Arducam for Raspberry Pi camera module 3 also adopts the 11.9MP IMX708 Image Sensor which can be used to take full HD video as well as still photographs and features an HDR mode of up to 3 megapixels. It is also equipped with a 102 Degree Wide-Angle Fixed Focus Lens and integrated IR-cut filter which is more stable and fast when focusing compared with the Autofocus Lens, especially for the wide range projects.
How to use it: For Raspberry Pi Bookworm users running on Pi 5, please
do the following: sudo nano /boot/firmware/config.
txt #Find the line: camera_auto_detect=1, update
it to: camera_auto_detect=0
#Find the line: [all], add the following item under it: dtoverlay=imx708 #Save and reboot. If you want to enable the camera kit on the cam0 port of Pi5, the difference from that used on cam1 is that the dtoverlay should be replaced with dtoverlay=imx708, cam0 For other Raspberry Pi boards and the OSs they run, please refer to the manual the product comes with.
3. This Arducam for Raspberry Pi camera module 3 also adopts the 11.9MP IMX708 Image Sensor which can be used to take full HD video as well as still photographs and features an HDR mode of up to 3 megapixels. It is also equipped with a 102 Degree Wide-Angle Fixed Focus Lens and integrated IR-cut filter which is more stable and fast when focusing compared with the Autofocus Lens, especially for the wide range projects.
How to use it: For Raspberry Pi Bookworm users running on Pi 5, please
do the following: sudo nano /boot/firmware/config.
txt #Find the line: camera_auto_detect=1, update
it to: camera_auto_detect=0
#Find the line: [all], add the following item under it: dtoverlay=imx708 #Save and reboot. If you want to enable the camera kit on the cam0 port of Pi5, the difference from that used on cam1 is that the dtoverlay should be replaced with dtoverlay=imx708, cam0 For other Raspberry Pi boards and the OSs they run, please refer to the manual the product comes with.
Specifications
IMAGE SENSOR IMX708 Still Resolution 11.9 Megapixels Video Modes 2304 × 1296p56, 2304 × 1296p30 HDR, 1536 × 864p120 Sensor Resolution 4608 x 2592 pixels Sensor image area 6.45 x 3.63 mm ( 7.4 mm diagonal) Pixel Size 1.4 m × 1.4 m Optical Size 1/ 2.43" IR Sensitivity Integral IR-cut Filter, visible light only Supported Platform Raspberry Pi 5/4B/3B+/3/2/CM3/CM4/Zero W/ZWarranty & Returns
