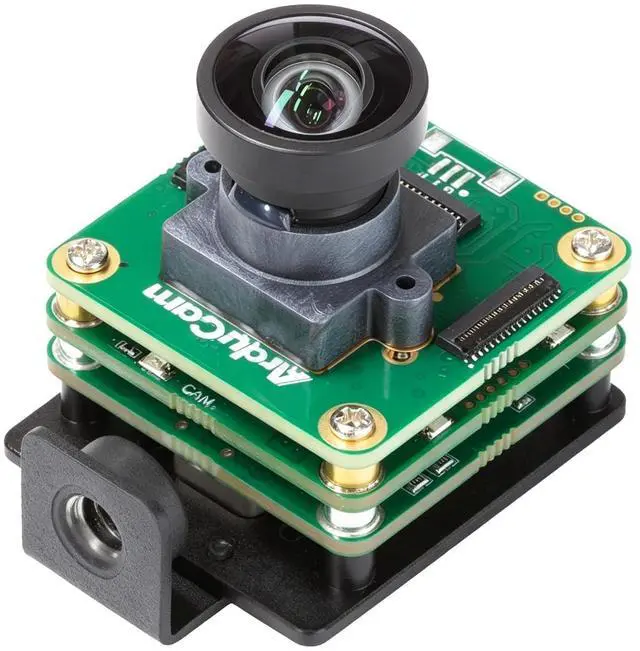

2.3MP USB 3.0 Camera Module, 1920×1200 100FPS Global Shutter High-Speed UVC Camera with Onboard ISP, M12 Wide Angle Lens, Plug & Play USB Webcam for Windows, Linux

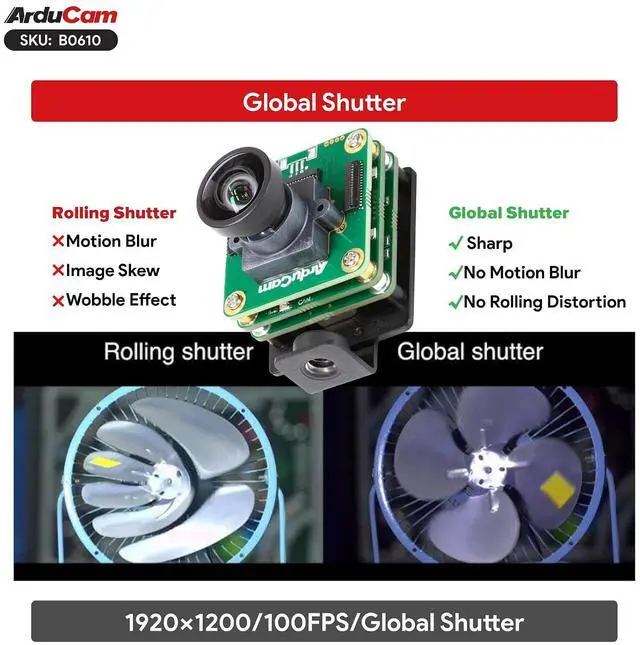

- GLOBAL SHUTTER FOR FAST MOTION CAPTURE: Capture fast-moving objects with exceptional clarity using a 2.3MP global shutter sensor. Unlike rolling shutter cameras, this USB 3.0 camera eliminates motion distortion and image skew, making it ideal for robotics, machine vision inspection, automation systems, and high-speed imaging applications; HIGH-SPEED USB 3.0 UVC CAMERA MODULE: Built with USB 3.0 UVC compliance, this camera module delivers plug-and-play operation without additional drivers. Supports up to 1920×1200@100fps MJPG streaming and provides low-latency video transmission for demanding applications on Windows and Linux systems; ONBOARD ISP WITH IMAGE CONTROL: Integrated ISP provides real-time image optimization including exposure, gain, contrast, saturation, sharpness, gamma, and auto/manual white balance adjustment. Fine-tune image performance for different lighting conditions and professional imaging applications; WIDE ANGLE M12 LENS WITH FLEXIBLE APPLICATIONS: Equipped with a pre-calibrated 110° wide angle M12 lens, this USB camera provides a broad field of view for robotics navigation, 3D printer monitoring, security monitoring, and other vision-based projects. Interchangeable M12 lenses are supported for customized setups; READY FOR PROTOTYPING AND LONG-TERM DEPLOYMENT: Designed for engineers, developers, and system integrators, this compact camera module supports rapid prototyping and production deployment. Compatible with Windows and Linux platforms, making it s
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

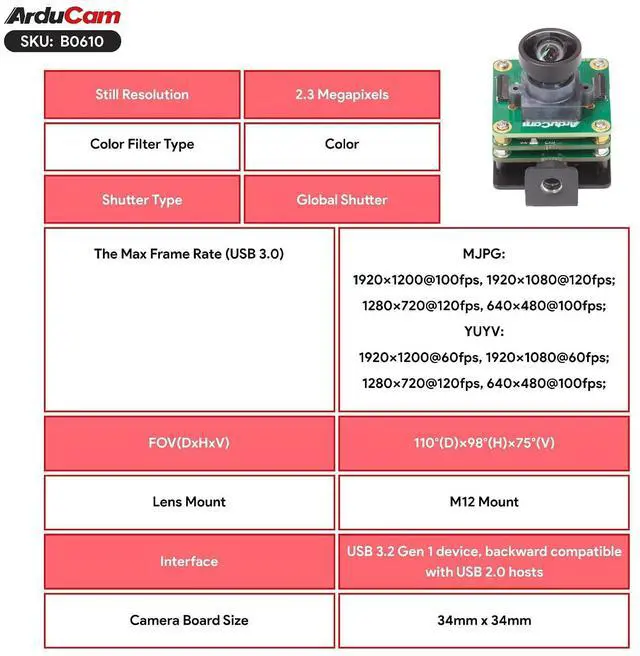

Product description Specifications-Image Sensor & Lens Color Filter Type Color Shutter Type Global Shutter Optical Size 1/ 2.6" Output Format MJPG/YUYV Pixel Size 3 µm x 3 µm Sensor Active Area 1920 (H) ×1200 (V) Frame Rate (USB 3.0 )
MJPG: 1920x1200@100fps, 1920x1080@120fps; 1280x720@120fps, 640x480@100fps;
YUYV: 1920x1200@60fps, 1920x1080@60fps; 1280x720@120fps, 640x480@100fps; Frame Rate (USB 2.0 )

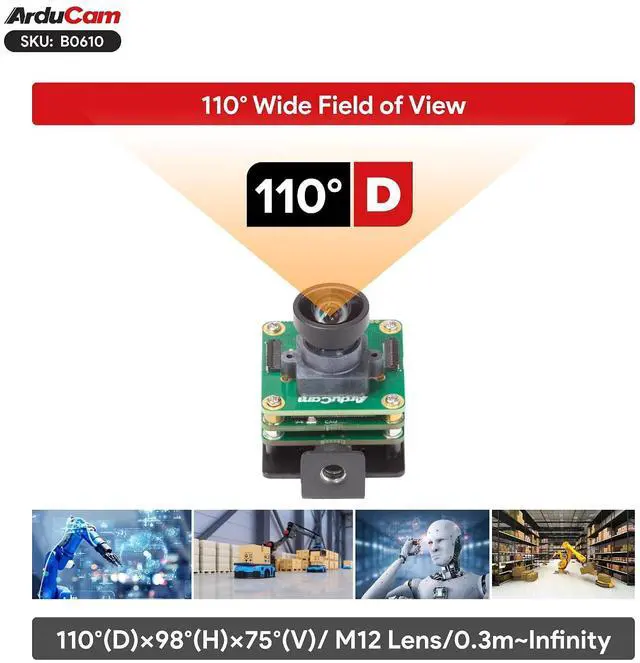

MJPG: 640x480@10fps Focus Type Fixed Focus FOV (DxHxV) 110° (D) ×98° (H) ×75° (V) Lens Mount M12 Mount F. NO F 2.4 ±5% E. F. L 2.8 ±5% mm Default Focus Range 0.3 m to INF IR Sensitivity Integrated 650nm IR filter TV-Distortion <- 1.3 % Technical
Power Requirements Max: 2W Camera Board Size 34mm x 34mm Overall Weight (Net) 41.8 g Temperature range (Storage) -4°F-167°F (-20°C to +85°C) Temperature range (Operating) 32°F-122°F (0°C to +50°C) Applicationa Humanoid Robotics AGV Industrial Inspection Automation Logistics Machine Vision
MJPG: 1920x1200@100fps, 1920x1080@120fps; 1280x720@120fps, 640x480@100fps;
YUYV: 1920x1200@60fps, 1920x1080@60fps; 1280x720@120fps, 640x480@100fps; Frame Rate (USB 2.0 )
MJPG: 640x480@10fps Focus Type Fixed Focus FOV (DxHxV) 110° (D) ×98° (H) ×75° (V) Lens Mount M12 Mount F. NO F 2.4 ±5% E. F. L 2.8 ±5% mm Default Focus Range 0.3 m to INF IR Sensitivity Integrated 650nm IR filter TV-Distortion <- 1.3 % Technical
Specifications

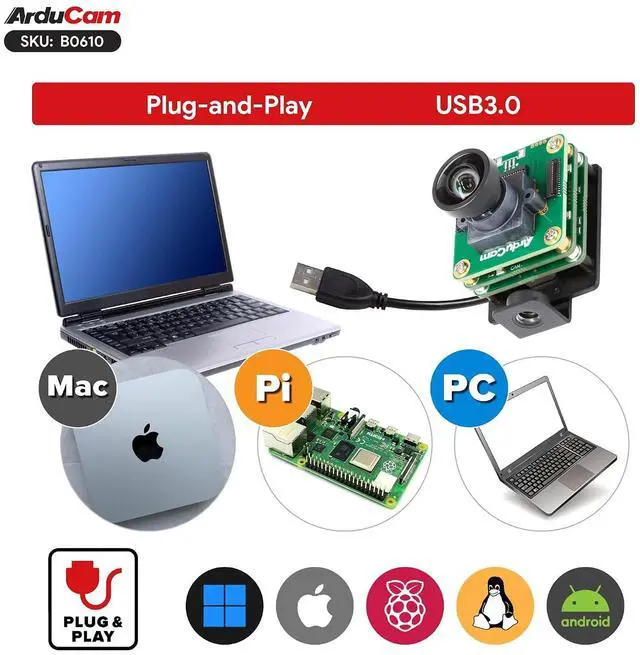

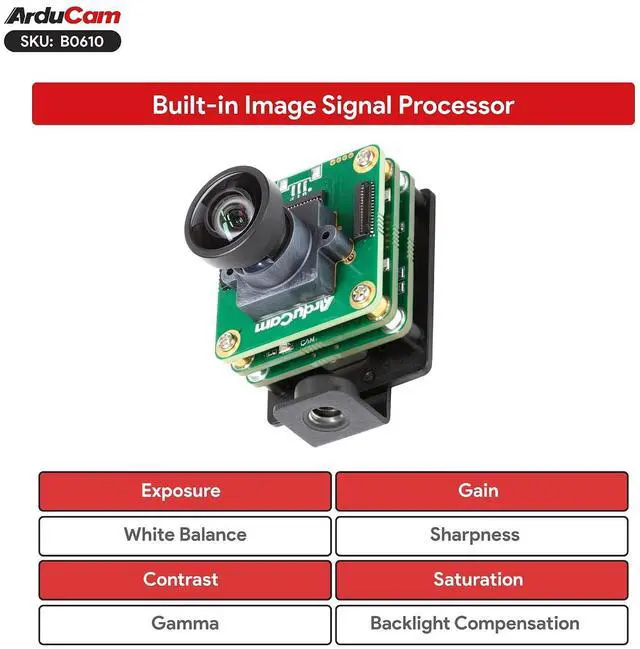

Interface USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts Connector Type-C reversible interface connector UVC Compliant No additional drivers required Supported OS Windows, Linux Recommend Sample Application PotPlayer for Windows, qv4l2 for Linux UVC Controls Contrast, Saturation, White Balance (Auto/Manual), Gamma, Gain, Sharpness, Backlight Compensation, Exposure (Manual/Auto) Operating Voltage 5 V +/- 5%Power Requirements Max: 2W Camera Board Size 34mm x 34mm Overall Weight (Net) 41.8 g Temperature range (Storage) -4°F-167°F (-20°C to +85°C) Temperature range (Operating) 32°F-122°F (0°C to +50°C) Applicationa Humanoid Robotics AGV Industrial Inspection Automation Logistics Machine Vision
