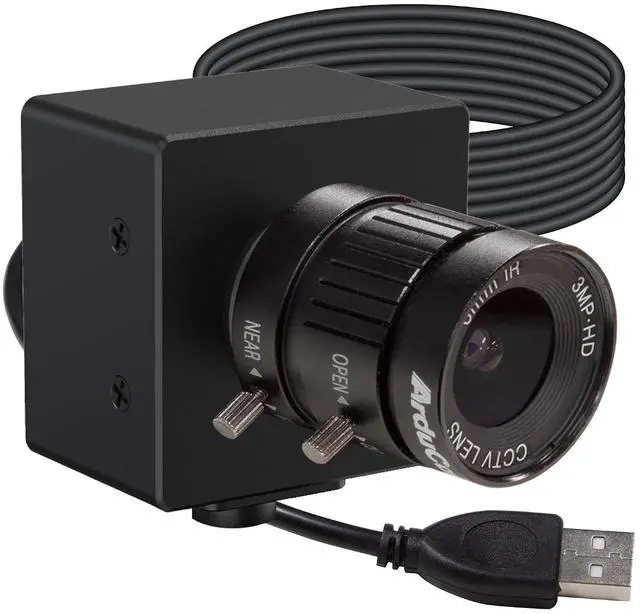

1.58MP IMX296 Monochrome Global Shutter USB 3.0 Camera Module, 44FPS High-Speed UVC Industrial Camera with 6mm CS Lens for Machine Vision, Industrial Automation, AI, Linux & Windows

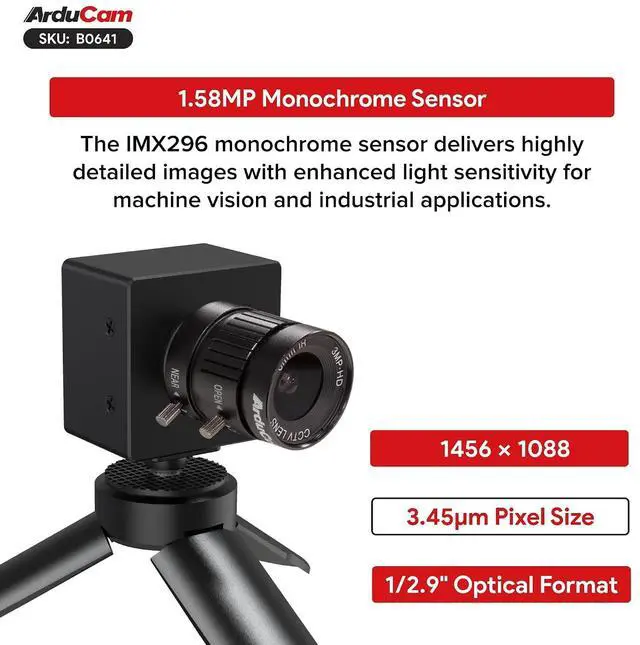

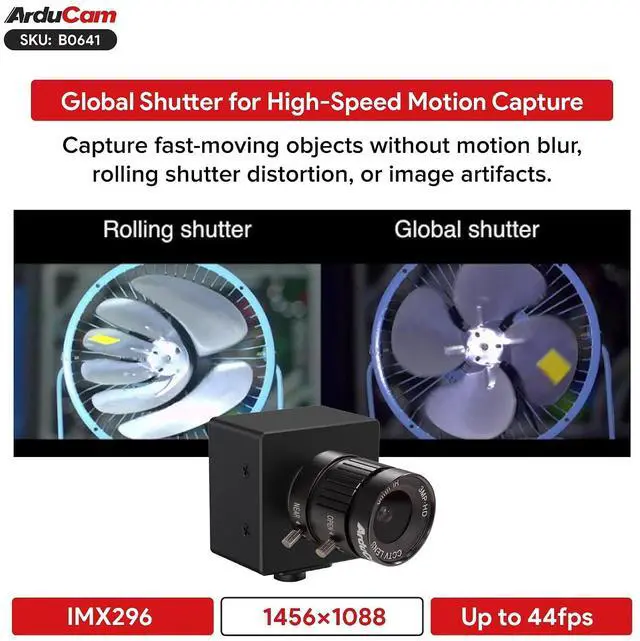

- High-Precision Monochrome Imaging: Arducam IMX296 USB 3.0 camera features a 1.58MP monochrome global shutter sensor with 1456×1088 resolution, delivering sharp black-and-white images with excellent detail and consistency for machine vision, inspection, and scientific imaging applications; Global Shutter for Motion Capture: Designed with IMX296 global shutter technology, this USB camera captures fast-moving objects without rolling shutter distortion. With USB 3.0 connectivity supporting up to 44FPS at 1456×1088 resolution, it is ideal for high-speed imaging applications; IR Sensitive NoIR Camera with Adjustable CS Lens: The monochrome sensor provides enhanced sensitivity to infrared light, making it suitable for visible and near-infrared imaging. The included 6mm CS mount lens supports manual focus adjustment for precise image clarity and flexible deployment; Plug-and-Play UVC Compatibility: Built with UVC compliance, this USB 3.0 camera requires no additional drivers. It supports Windows and Linux systems and works with common imaging software such as PotPlayer and qv4l2 for quick setup; USB 3.0 Industrial Camera Design: Featuring an onboard ISP for image optimization and a compact 34×34mm camera board, this global shutter USB camera offers reliable performance for robotics, automation, scientific research, and industrial vision projects
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

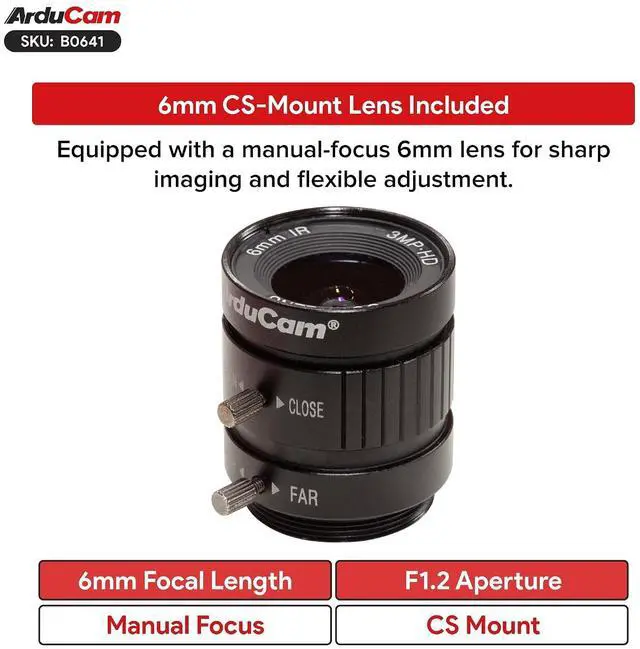

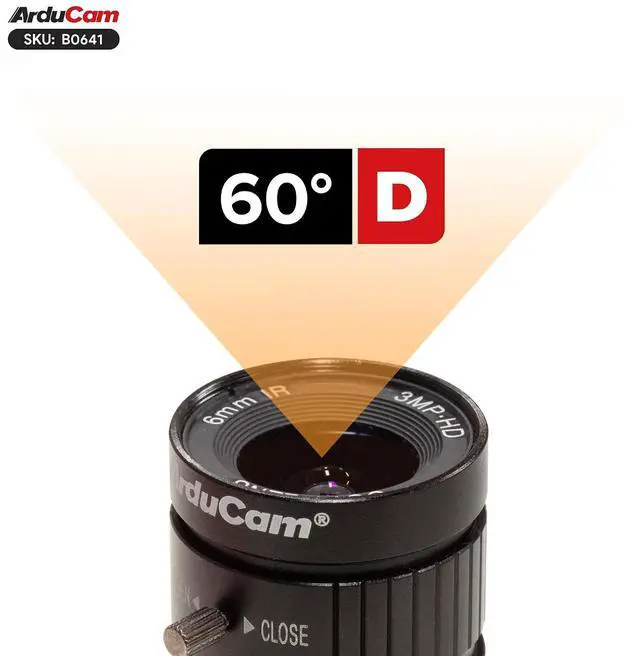

Product description Arducam IMX296 Mono USB 3.0 Camera features a 1.58MP global shutter sensor, 44FPS high-speed imaging, and IR-sensitive monochrome output. With a 6mm CS lens and UVC plug-and-play support, it is ideal for machine vision, robotics, and industrial imaging. Specifications--Camera & Lens Optical Format 1/ 2.9" Pixel Size 3.45 µm x 3.45 µm Sensor Active Area 1456 (H) ×1088 (V) Sensor Image Area 5.023 mm x 3.788 mm ( 6.3 mm diagonal) Output Format YUYV Resolution@fps (USB 3.0 ) 1456x1088@44fps Resolution@fps (USB 2.0 ) 1456x1088@10fps Focus Type Manual Focus FOV 60° (D) ×50° (H) ×38° (V) Lens Mount CS Mount F.
NO F 1.2 E. F. L 6mm IR Sensitivity NoIR, sensitive to IR Light Default Focus Distance 200cm-INF Distrotion <- 0.1 % Weight 53g Specifications--Technical
Power Consumption Max: 1.89W Overall Weight (Net) 86g Camera Board Size 34×34 mm Overall Size 34x34 mm Temperature range (Storage) -4°F-167°F (-20°C to +85°C) Temperature range (Operating) 32°F-122°F (0°C to +50°C) Certification RoHS Applications
NO F 1.2 E. F. L 6mm IR Sensitivity NoIR, sensitive to IR Light Default Focus Distance 200cm-INF Distrotion <- 0.1 % Weight 53g Specifications--Technical
Specifications

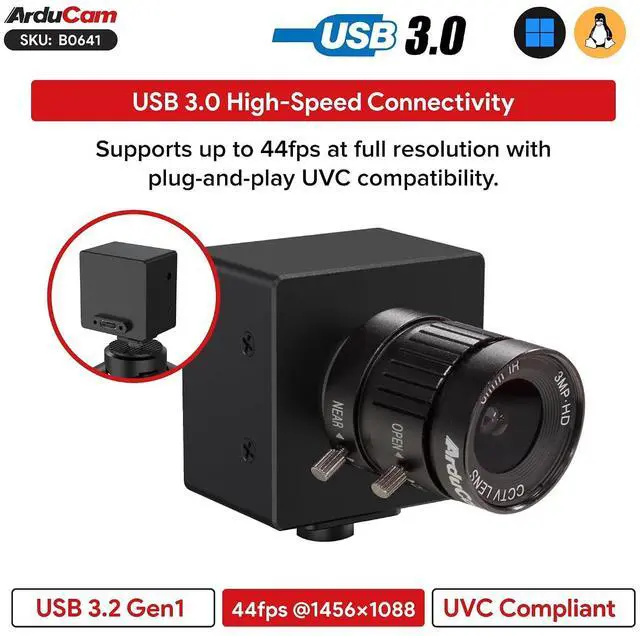

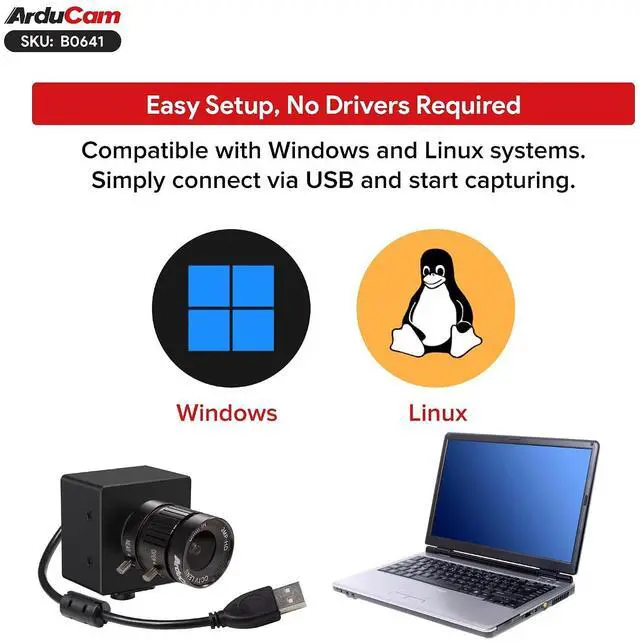

Interface USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts Connector Type-C reversible interface connector UVC Compliant No additional drivers required Supported OS Windows, Linux Recommend Imaging Applications PotPlayer for Windows, qv4l2 for Linux UVC Controls Brightness, Contrast, Gain, Exposure (auto/manual) Operating Voltage 5 V +/- 5%Power Consumption Max: 1.89W Overall Weight (Net) 86g Camera Board Size 34×34 mm Overall Size 34x34 mm Temperature range (Storage) -4°F-167°F (-20°C to +85°C) Temperature range (Operating) 32°F-122°F (0°C to +50°C) Certification RoHS Applications
