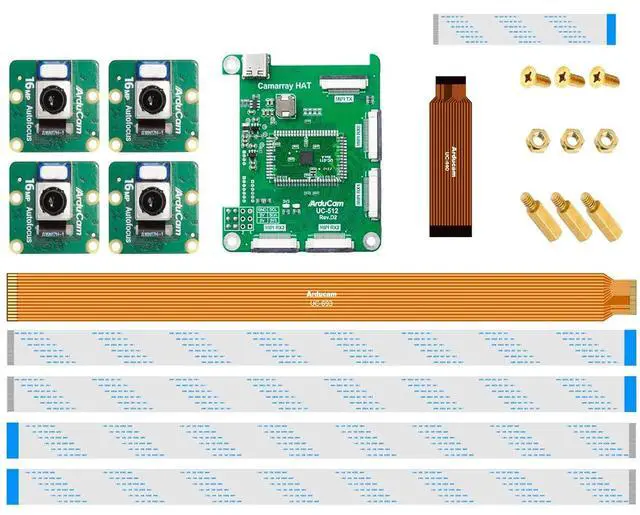

16MP Autofocus Quad-Camera Kit for Raspberry Pi, 16MP IMX519 Autofocus Synchronized Pi Camera, Compatible with Nvidia Jetson Board
- Designed for Raspberry Pi Camera: This Quad-Camera kit allows you to connect four 16MP IMX519 for Raspberry Pi cameras to a single standard pi board and capture images or video at the same time. (Note: Tripod is not included); Four in One: Combine four cameras into one frame, each with a max resolution of 1/4(2288(H)x1736(V); the maximum output you can get: 4656 x 3496 for still images and 1920x1080 for video. Please note the frame rate for video and still images will drop to half the frame rate you would normally get with a single camera.; Wide compatibility: It is compatible with the latest Pi camera software (libcamera) and uses the official Pi camera tuning algorithm. It also supports multi-platform multi-camera solutions for Raspberry Pi, Jetson Board and many more. And this Camarray HAT is also compatible with Raspberry Pi 3 and Raspberry Pi (V1/V2/HQ) cameras. NoteThis camera is compatible with Jetson Developer Kit, and it does not guarantee to support other third-party boards.; Applications: Multiple camera processing technologies have enabled VR (Virtual Reality), AR(Augmented Reality), and other applications like SLAM (Simultaneous Localization and Mapping). Synchronized video streams with Pi could be used for many use-cases (e.g., stitching, 3D sensing, tracking, ) before investing in an expensive video multiplexer hardware.; Please note: 1. The cameras in the set are specifically designed to share clocks with the HAT for frame-level synchronization; however,
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description 16MP Autofocus Quad-Camera Kit This Arducam quadrascopic camera bundle incorporates four 16MP IMX519 autofocus cameras, and the cutting-edge MIPI stereo camera breakthrough from Arducam The Arducam Camarray HAT. As the upgraded version of Arducam Synched Stereo Camera HAT, the Camarray further pushes the multi-camera limits and doubles the interfacing capabilities to allow 4 synchronized MIPI camera modules to be interfaced to a single MIPI CSI-2 slot on prevailing single-board computers like Raspberry Pi, Jetson
Board Note: Please make sure you are running the latest version of Raspberry Pi OS. (January 28th, 2022 or later releases, Debian
version: 11 (Bullseye) ).
Specfication & Comparison Chart Sensor: IMX519 stacked, back-illuminated sensor 16 megapixels 1.22 µm × 1.22 µm pixel size 7.103 mm diagonal (Type 1/ 2.534 )
Output: RAW10/8, COMP8
Lens: Autofocus; f/ 1.75;
EFL: 4.28;
FoV: 80°;
Focus Range: 10 cm ~ infinite
IR cut Filter: Integrated
Tripod mount: 1/4-20
(Note: Tripod is not included in the parcel) Guide on
Raspberry Pi: bit.
ly/IMX519-Quad-Cam-Kit-Guide-for-Raspberry-Pi Guide on Jetson: bit.
ly/IMX519-Quad-Cam-Kit-Guide-for-Jetson Note:
1. The four-channel camera adopts the 2x2 synthesis method. The images of cameras 0 and 1 are completely synchronized, the images of cameras 2 and 3 are completely synchronized, and the images of cameras 2/3 are one frame behind the images of cameras 0/1.
2. The resolution of the synthesized image remains unchanged
Board Note: Please make sure you are running the latest version of Raspberry Pi OS. (January 28th, 2022 or later releases, Debian
version: 11 (Bullseye) ).
Specfication & Comparison Chart Sensor: IMX519 stacked, back-illuminated sensor 16 megapixels 1.22 µm × 1.22 µm pixel size 7.103 mm diagonal (Type 1/ 2.534 )
Output: RAW10/8, COMP8
Lens: Autofocus; f/ 1.75;
EFL: 4.28;
FoV: 80°;
Focus Range: 10 cm ~ infinite
IR cut Filter: Integrated
Tripod mount: 1/4-20
(Note: Tripod is not included in the parcel) Guide on
Raspberry Pi: bit.
ly/IMX519-Quad-Cam-Kit-Guide-for-Raspberry-Pi Guide on Jetson: bit.
ly/IMX519-Quad-Cam-Kit-Guide-for-Jetson Note:
1. The four-channel camera adopts the 2x2 synthesis method. The images of cameras 0 and 1 are completely synchronized, the images of cameras 2 and 3 are completely synchronized, and the images of cameras 2/3 are one frame behind the images of cameras 0/1.
2. The resolution of the synthesized image remains unchanged
