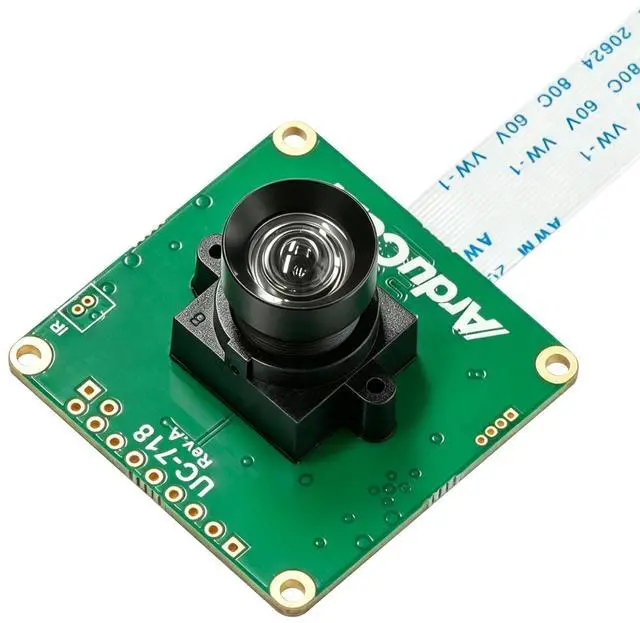

5MP OG05B10 Global Shutter Raspberry Pi Camera Module
Limited time offer, ends 10/10 By TERRA HAVEN

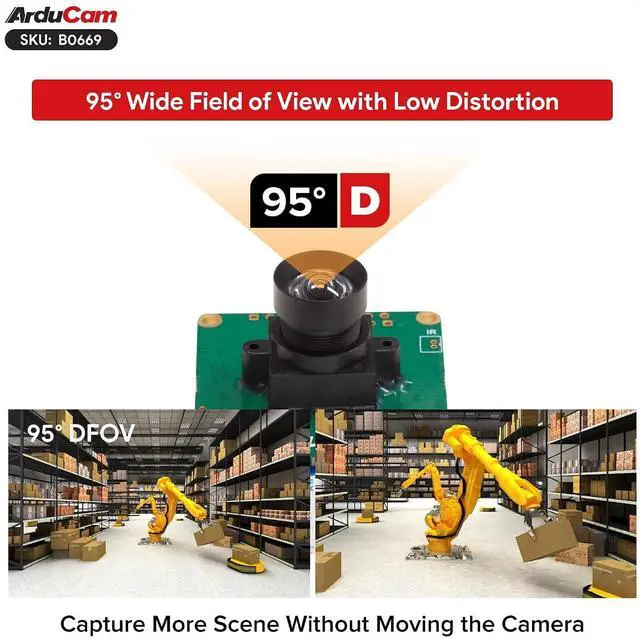

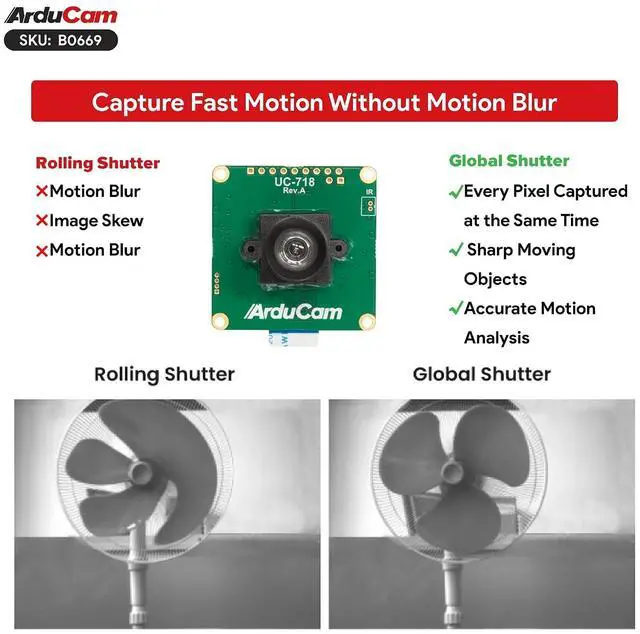

- Professional Global Shutter Raspberry Pi Camera: Experience high-speed imaging with the Arducam OG05B10 global shutter camera module. Unlike rolling shutter cameras, this Raspberry Pi camera module captures fast-moving objects without motion distortion, making it ideal for industrial inspection, robotics, machine vision, and AI vision applications; 5MP Color Imaging with High-Speed Performance: Featuring the OmniVision OG05B10 5MP color sensor, this Pi camera supports up to 2592×1944 resolution at 30fps, delivering detailed images with smooth motion capture. The combination of high resolution and global shutter technology provides superior performance compared with traditional low-resolution global shutter cameras; Pivariety ISP for Raspberry Pi Compatibility: Powered by Arducams Pivariety hardware ISP and dedicated driver, this Raspberry Pi camera module enables OG05B10 sensor support beyond Raspberry Pi native firmware limitations; Wide 95° Field of View with Low Distortion Lens: Equipped with an M12 lens featuring a 95° diagonal field of view (DFOV), this Raspberry Pi camera provides a wide viewing angle while maintaining image accuracy and low distortion. Ideal for SLAM, robotics navigation, gesture recognition, and AI-powered vision systems; Designed for Raspberry Pi AI Vision Applications: Built for Raspberry Pi 5, Raspberry Pi 4, and Raspberry Pi Zero 2 W projects, this CSI-2 camera module delivers high-speed image transmission with low latency. Perfect for robotics,
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

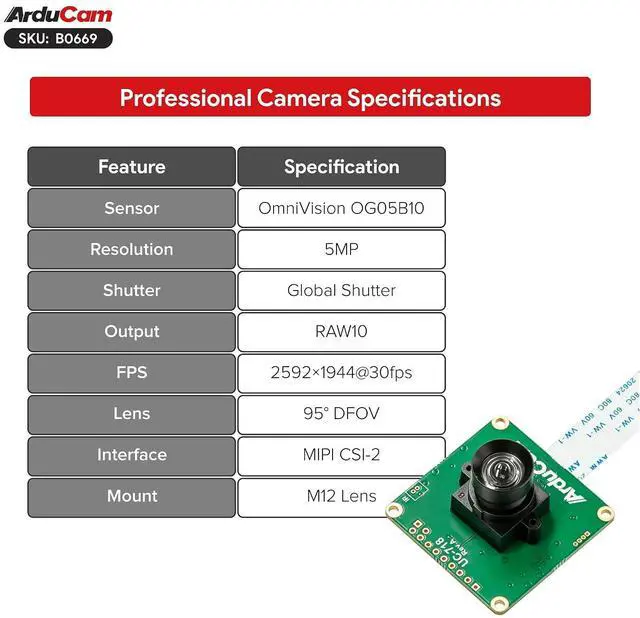

Product description Overview This 5MP color global shutter camera module is a member of Arducams Pivariety series, a high-performance camera solution specifically designed for the Raspberry Pi ecosystem. Specifications-Camera & Lens Optical Format 1/ 2.53" Output Format RAW10 Pixel Size 2.2 µm x 2.2 µm Sensor Active Area 2592 (H) ×1944 (V) Sensor Image Area 5.702 mm x 4.276 mm ( 7.127 mm diagonal) Frame Rate (on Raspberry Pi) 2592x1944@30fps Video Mode (on Raspberry Pi) 1080p30 Focus Type Fixed Focus FOV (DxHxV) 95° (D) ×82° (H) ×66° (V) Lens Mount M12 Mount F. NO F 2.8 E.

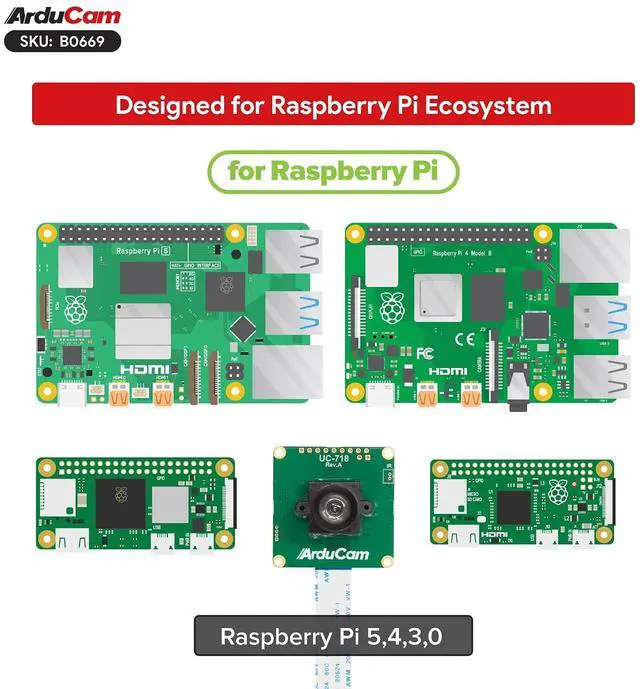

F. L 3.6 mm IR Sensitivity Integral 650nm IR Filter, visible light only TV-Distortion 0.01 Default Focus Distance 100cm~INF Weight 8.4 g Features Technical Specs Interface MIPI CSI-2 Supported Platforms Raspberry Pi Platforms Supported OS Bullseye/Bookworm/Trixie Supported Software libcamera, rpicam, Picamera2, etc. Operating Voltage 3.3V

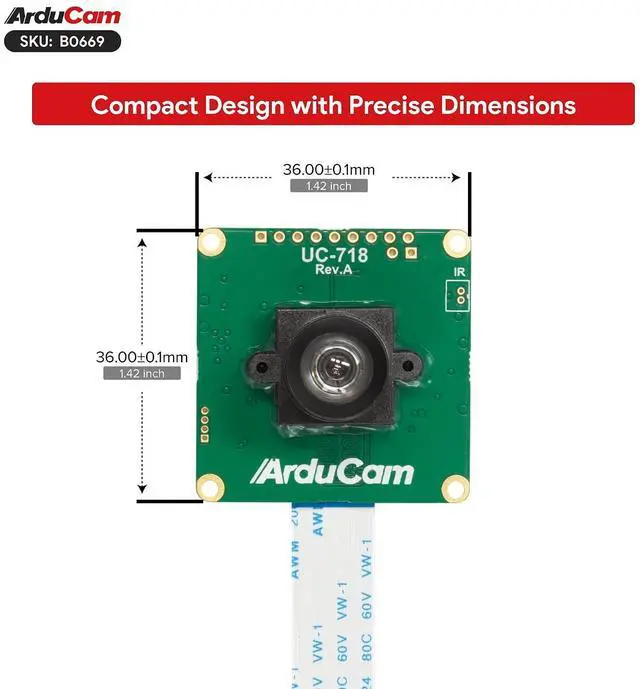

Power Consumption Max: 0.7W Camera Board Size 34x34mm Overall Size 34x34x 24.54 mm Camera Overall Weight (Net) 29.2 g Temperature range (Storage) -4°F-167°F (-20°C to +75°C) Temperature range (Operating) 32°F-122°F (0°C to +50°C) 5MP Resolution Deliver detailed images with 2592×1944 resolution at smooth 30fps performance. Global Shutter Capture fast-moving objects with zero motion distortion and sharp image details. 95° D Wide Angle Capture a wider scene with low-distortion M12 lens for flexible vision applications. Pivariety Arducams hardware ISP and driver enable advanced sensor support on
F. L 3.6 mm IR Sensitivity Integral 650nm IR Filter, visible light only TV-Distortion 0.01 Default Focus Distance 100cm~INF Weight 8.4 g Features Technical Specs Interface MIPI CSI-2 Supported Platforms Raspberry Pi Platforms Supported OS Bullseye/Bookworm/Trixie Supported Software libcamera, rpicam, Picamera2, etc. Operating Voltage 3.3V
Power Consumption Max: 0.7W Camera Board Size 34x34mm Overall Size 34x34x 24.54 mm Camera Overall Weight (Net) 29.2 g Temperature range (Storage) -4°F-167°F (-20°C to +75°C) Temperature range (Operating) 32°F-122°F (0°C to +50°C) 5MP Resolution Deliver detailed images with 2592×1944 resolution at smooth 30fps performance. Global Shutter Capture fast-moving objects with zero motion distortion and sharp image details. 95° D Wide Angle Capture a wider scene with low-distortion M12 lens for flexible vision applications. Pivariety Arducams hardware ISP and driver enable advanced sensor support on
