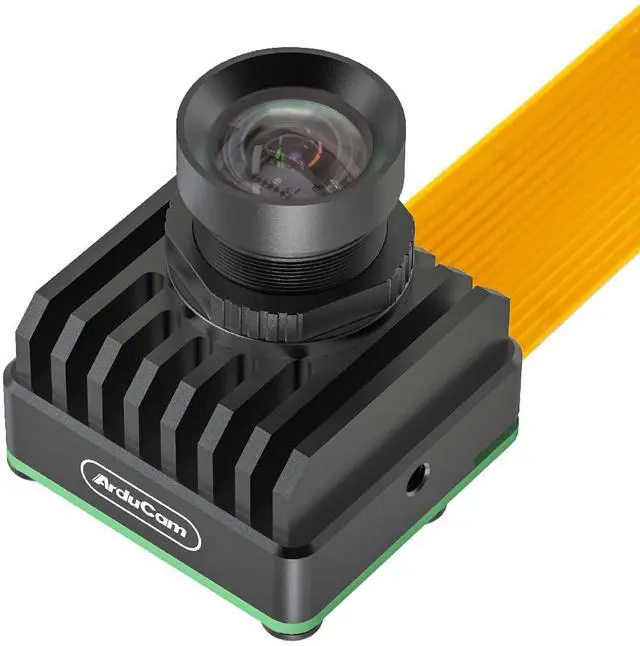

12.3MP IMX500 AI Camera Module for Raspberry Pi

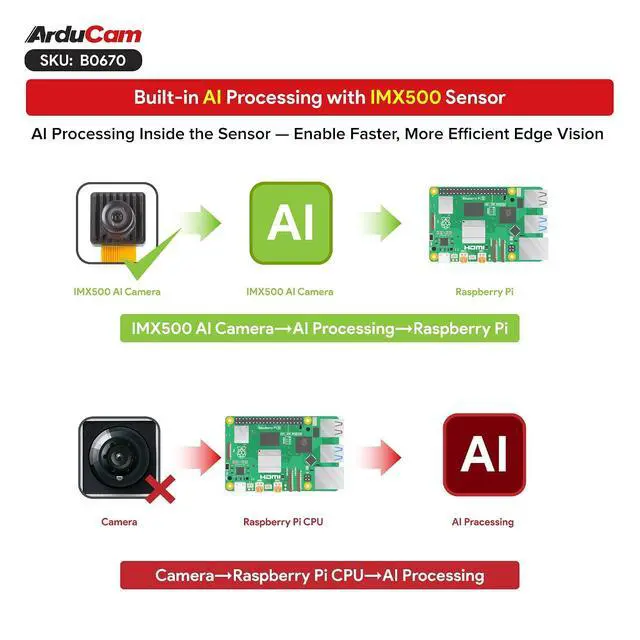

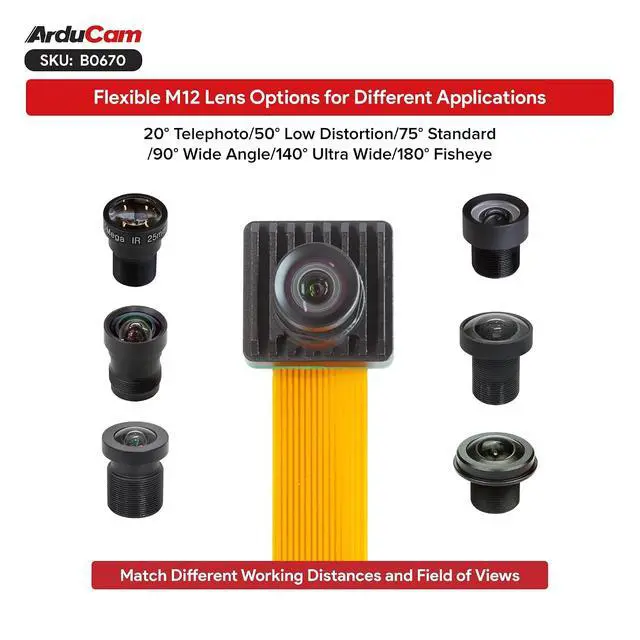

- IMX500 Intelligent Vision Sensor with On-Sensor AI Processing: Powered by IMX500, this Raspberry Pi AI camera module integrates AI processing directly inside the image sensor, enabling efficient edge AI applications with reduced CPU workload. Supports AI inference with Raspberry Pi AI software ecosystem; Raspberry Pi AI Ecosystem Compatibility: Designed for Raspberry Pi platforms, this IMX500 AI camera module supports Raspberry Pi AI examples, libcamera stack, and AI Model Zoo workflows. No proprietary drivers are required, enabling smooth integration with existing AI vision projects; Compact Industrial Camera Design with Flexible M12 Lens Options: Featuring a compact 24×25mm camera board and M12 lens mount, this module is ideal for robotics, automation, smart retail, agriculture, and embedded vision applications. Choose different lenses from 20° telephoto to 180° fisheye to match various working distances. Note: Optional lenses are not included, check Asin B088GP9K4T; High-Resolution Imaging for Edge AI Applications: The 12.3MP IMX500 sensor provides 4056×3040 resolution output with RAW10 image support. Supports 1080p30 video streaming and 2×2 binning mode for balanced performance between image quality and processing efficiency; Designed for Reliable Embedded Deployment: Built with a durable metal heat dissipation housing, this AI camera module improves thermal management during continuous edge AI workloads. The robust enclosure helps enhance stability and reliability for s
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description Brings the full power of IMX500 Intelligent Vision Sensor to the Raspberry Pi ecosystem in an ultra-compact, industrial-grade form factor. 100% code-compatible with official AI frameworks and demos migrate from proof-of-concept to production without rewriting a single line of code. Camera Module & Lens Sensor IMX500 Chroma Color Optical Format 1/ 2.3" Output Format Image (Bayer RAW10), ISP output (YUV/RGB); ROI, metadata; Pixel Size 1.55 µm x 1.55 µm Sensor Active Area 4056 (H) ×3040 (V) Video Mode (on Raspberry Pi) 1080p30
Frame Rate 2×2 binned: 2028×1520 10-bit 30fps

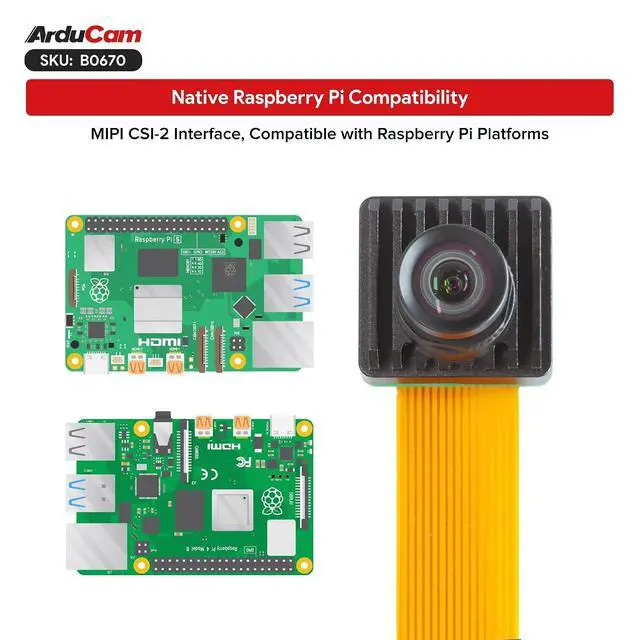

Full resolution: 4056×3040 10-bit 10fps Focus Type Fixed Focus FOV (DxHxV) 82° (D) ×72° (H) ×56° (V) Lens Mount M12 Mount F. NO 3.0 ±5% E. F. L 4.3 ±5%mm IR Sensitivity Integral 650nm IR Filter, visible light only TV-Distortion < 0.58 % Weight 8.4 g Technical Specs Interface MIPI CSI-2 Supported Platforms Raspberry Pi Platforms Supported OS Bullseye/Bookworm/Trixie AI Examples Support Raspberry Pi AI Examples AI Model Support Raspberry Pi AI Model Zoo, Arducam AI Model Zoo Exposure Time Range 4056x 3040: 0. 192~ 201711.828 ms; 2028x 1520: 0. 101~ 105904.344 ms; Operating Voltage 3.3V

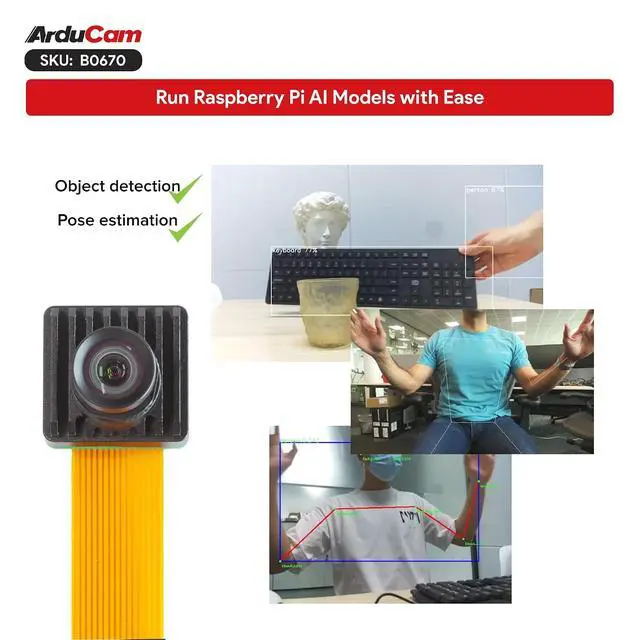

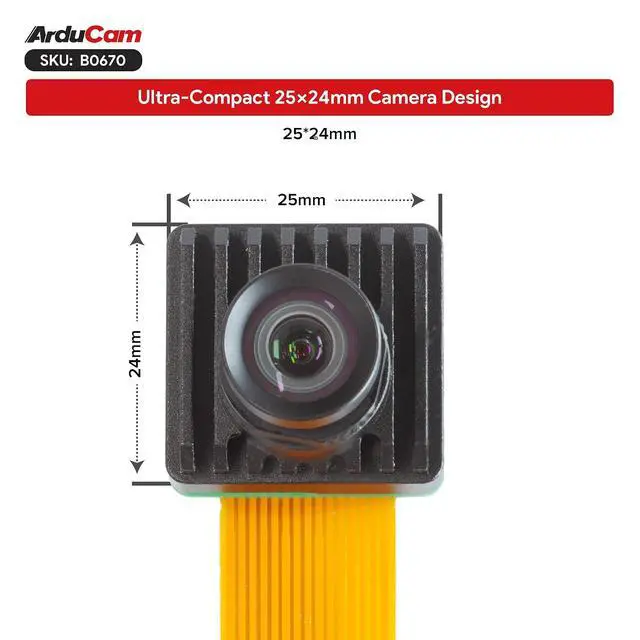

Power Consumption MAX: 1W Camera Board Size 24x25 mm Overall Size 24x25x 16.5 mm (exclude the Lens) Camera Overall Weight (Net) 29.2 g Temperature range (Storage) -4°F-167°F (-20°C to +75°C) Temperature range (Operating) 32°F-122°F (0°C to +50°C) Fully compatible with official Raspberry Pi AI demos, examples, and libcamera workflows, delive
Frame Rate 2×2 binned: 2028×1520 10-bit 30fps
Full resolution: 4056×3040 10-bit 10fps Focus Type Fixed Focus FOV (DxHxV) 82° (D) ×72° (H) ×56° (V) Lens Mount M12 Mount F. NO 3.0 ±5% E. F. L 4.3 ±5%mm IR Sensitivity Integral 650nm IR Filter, visible light only TV-Distortion < 0.58 % Weight 8.4 g Technical Specs Interface MIPI CSI-2 Supported Platforms Raspberry Pi Platforms Supported OS Bullseye/Bookworm/Trixie AI Examples Support Raspberry Pi AI Examples AI Model Support Raspberry Pi AI Model Zoo, Arducam AI Model Zoo Exposure Time Range 4056x 3040: 0. 192~ 201711.828 ms; 2028x 1520: 0. 101~ 105904.344 ms; Operating Voltage 3.3V
Power Consumption MAX: 1W Camera Board Size 24x25 mm Overall Size 24x25x 16.5 mm (exclude the Lens) Camera Overall Weight (Net) 29.2 g Temperature range (Storage) -4°F-167°F (-20°C to +75°C) Temperature range (Operating) 32°F-122°F (0°C to +50°C) Fully compatible with official Raspberry Pi AI demos, examples, and libcamera workflows, delive
